Advanced CVD/CVI Vapor Deposition Furnace for TiC TiN TiCN a-AL2O3 and K-AI2O3 Coating at 700-1050C Process Temperature

Advanced CVD/CVI Vapor Deposition Furnace for TiC TiN TiCN a-AL2O3 and K-AI2O3 Coating at 700-1050C Process Temperature

700-1050C CVD/CVI Vapor Deposition Furnace

TiC CVD/CVI Vapor Deposition Furnace

a-AL2O3 CVD/CVI Vapor Deposition Furnace

Place of Origin:

China

Brand Name:

Ruideer

Certification:

CE

Model Number:

336/4412/5518

Contact Us
Request A Quote
Product Details
Process Temperature((℃):
700-1050
Types Of Coating:
TiC、TiN、TiCN、a-AL2O3、K-AI2O3
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
wooden cases
Delivery Time
5-6 months
Payment Terms
L/C, T/T
Supply Ability
5-6 months/set
Product Description

TiC/TiN/TiCN/Al2O3 coating CVD furnace



    CVD Coating Machine is a state-of-the-art vacuum coating technique, which utilizes chemical deposition equipment to deposit a thin layer of material onto the surface of a substrate. This type of surface coating apparatus offers a wide range of coating speeds, from 0.1 to 2.0m/min. It also provides a precise and uniform coating pressure, with a pressure stability of -±2mbar. The heating system is electric heating, which ensures a stable substrate temperature for optimal coating results. The whole process is controlled by a PLC system, which ensures precise coating thickness and uniformity. This CVD Coating Machine is ideal for a variety of CVD coating applications.



Equipmentmodel CVD430-1250 CVD430-1600 CVD530-1250 CVD530-1600 CVD630-1250 CVD630-1600
Effective space(mm) Φ400X1250 Φ400X1600 Φ500X1250 Φ500X1600 Φ600X1200 Φ600X1600
Heating power(KW) 39 48 45 55 65 80
Quantity of heating zone 4 5 4 5 4 5
Equipment footprint(mm) 6000*5800*4800 6000*5800*5100 6500*6000*4800 6500*6000*5100 7200*6200*4800 7200*6200*5100
Process temperature(℃) 700-1050
Precursors and process gases TiCL4,AICL3,CH3CN,H2,N2,Ar,CH,CO,CO2,HCI,H2S

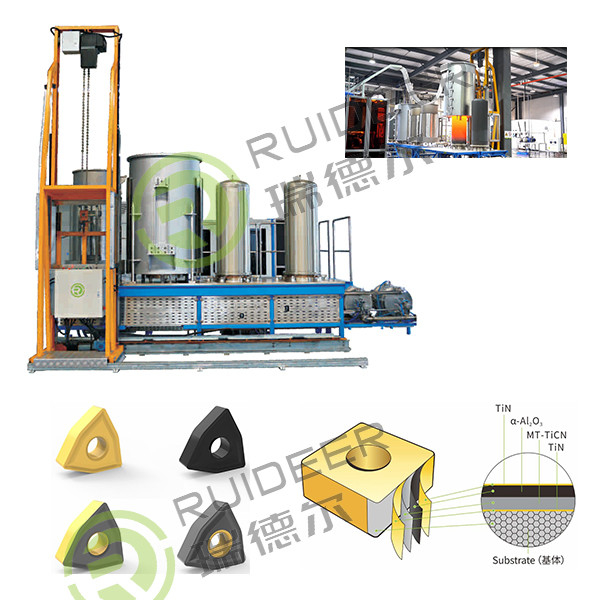

Types of coating TiC,TiN,TiCN,a-AL2O3,K-AI2O3
Optional equipments

1. Off gas neutralizer (incl.evacuating device);

2. Second stage gas distributor (incl.,pipeline);

3. Gas station (incl.pipeline)



Coating Benefits

  • Can be applied to a wide variety of base materials including ceramics, glass, metals and metal alloys.
  • Can coat precision surfaces and intricate surfaces including seal areas and internal surfaces
  • Can withstand exposure to low and high temperature and extreme temperature variation
  • Remains bonded in high stress environments and when the surface flexes due to high adhesion characteristics.
  • Precursor gas can be optimized for wear resistance, high lubricity, corrosion resistance, fouling resistance, high purity, or chemical inertness.



• Design standards



The equipment is designed in accordance with the pressure vessel requirements of the Quality and Technical Supervision Bureau, and is qualified after pressure testing and shipped. The electrical design and construction meet national standards.



• Installation pre-test and pre-acceptance



The equipment is fully assembled in our factory, including all pipelines, vacuum pipelines, process gas pipelines, cooling water pipelines, compressed air pipelines, etc. Pre-testing can be carried out after installation. At the customer site, pipelines other than the equipment are provided by the customer. The installation also includes the connection of all cables. At the customer site, the main cable connecting the power cabinet is provided by the customer. After installation, we conduct vacuum and positive pressure leakage tests on the entire equipment, as well as mechanical and electrical function tests.



• Disassembly and transportation



The equipment will be disassembled in several large parts, packed in a standardized manner, and loaded into the transport vehicle.



• Customer site installation and commissioning



The Redel after-sales engineer will lead the team to complete commissioning, product trial burning and other work within 20 working days. The customer needs to make appropriate preparations and provide the necessary tools, such as hoisting and lifting equipment. And provide installation personnel support (it is recommended to have 1 mechanical personnel and 1 electrical personnel).



• Final acceptance

After installation and commissioning, the equipment can be finally accepted in accordance with the requirements of the technical contract.



• Training

Our after-sales engineers will provide a systematic and complete on-site training, including operation, maintenance, troubleshooting, etc.



• Technical data delivery



To ensure safe operation and equipment maintenance, the following technical data will be provided to customers:



1. Equipment installation layout

2. User manual

3. Spare parts list

4. Electrical drawings

5.  Component manual



FAQ

Are you a factory or trading company?

Q: Are you a factory or trading company?

A:We are China leading high-temperature vacuum furnace manufacturer with over 10 years’ experience.

Do you have customization or OEM service?

Q: Do you have customization or OEM service??

A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

What's your advantage?

Q:What's your advantage?

A:

l Quick response to your enquiry

l High quality control

l Stable supply chain

l Timely delivery

l Excellent after-sales service
