Name: TiC/TiN/TiCN/a-Al2O3/k-Al2O3 Coatings CVD Furnace with 700-1050°C Temperature Control
Brand: Zhuzhou Ruideer Metallurgy Equipment Manufacturing Co.,Ltd
SKU: 630，530，430
Price: 10,600,000.00 USD
Availability: InStock

Home > products > CVD Coating Machine >

TiC/TiN/TiCN/a-Al2O3/k-Al2O3 Coatings CVD Furnace with 700-1050°C Temperature Control

k-Al2O3 CVD Furnace

TiC CVD Furnace

a-Al2O3 CVD Furnace

Place of Origin:

China

Brand Name:

Ruideer

Model Number:

630，530，430

Request A Quote

TiC/TiN/TiCN/a-Al2O3/k-Al2O3 Coatings CVD Furnace with 700-1050°C Temperature Control

Product Details

Heating Zone:

4pcs/5pcs

Maximum Temperature::

1100℃

Working Temperature:

700-1050°C

Coating Types:

TiC/TiN/TiCN/a-Al2O3/k-Al2O3

Heating Power:

39/48/45/55/65/80KW

Effective Size Of Reaction Chamber:

φ400mm×1250 Mm;φ400mm×1600 Mm;φ500mm×1250 Mm;φ500mm×1600 Mm;φ600mm×1200 Mm;φ600mm×1600 Mm;

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

USD1200000.00-20000000.00

Packaging Details

Special wooden box

Delivery Time

4-5monthes

Payment Terms

L/C, T/T

Supply Ability

5-6 months/set

AICL3 Precursors Chemical Vapor Deposition Furnace for Cutting Tools at 700-1050C Process Temperature

Get Best Price

Video

Advanced CVD Coating Machine for Ceramic Substrate Strong Coating Adhesion Total Power About 40/50/60/80KW

Get Best Price

Video

Electric Resistence Heating CVD Coating Machine for High Temperature Coating Up To 1000°C Chinese and Turn-key Project

Get Best Price

Video

high Temperture Alloy Coating Chamber Chemical Vapor Deposition Coating Machine For Tungsten Carbide Cutting Tool

Get Best Price

86-0731-22506328-22506328

Contact Now

Product Description

TiC/TiN/TiCN/a-Al2O3/k-Al2O3 coatings chemical vapor deposition CVD furnace

1. Main technical parameters

1. Power supply voltage: 380V 50HZ;

2. Maximum temperature: 1100°C;

3. Working temperature: 900-1050°C;

4. Total power: about 75KW;

5. Heating power: about 55KW;

6. Number of reaction chambers: 2

7. Effective size of reaction chamber: φ500 (inner diameter) mm×1500 (effective

height) mm;

8. Occupation size (l×w×h) : 8100×7000×5100mm;

9. Equipment weight: about 10T

2. Assembly Group

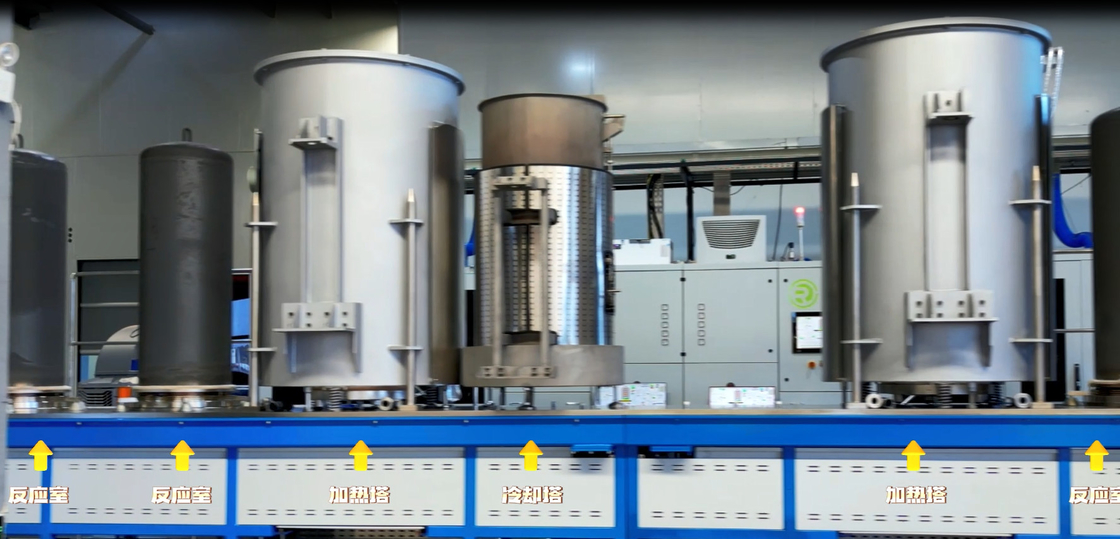

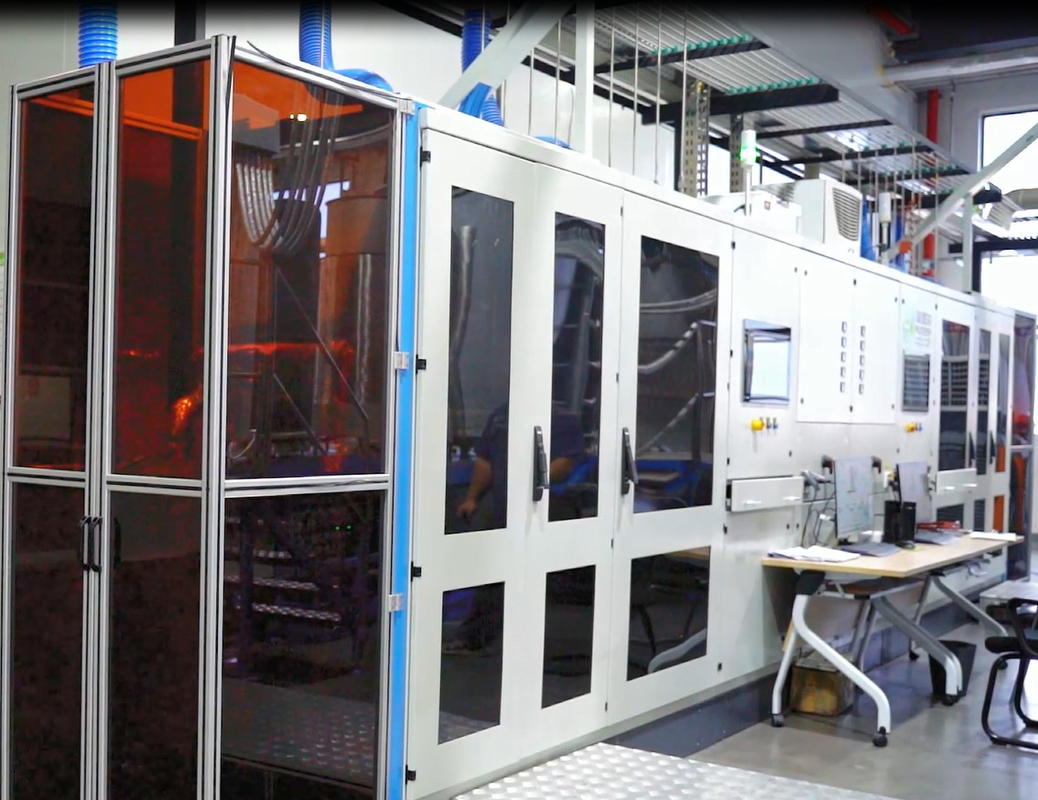

The CVD coating furnace consists of six parts: workbench, reaction chamber, heating cover, cooling cover, rail crane, condenser.

3. Equipment Strengths

3.1. Small floor space and reasonable layout.

3.2. High degree of automation.

3.3.Supporting auxiliary equipment such as tail gas neutralization device, titanium tetrachloride filling device, gas busbar, etc., can be provided.

3.4. Process control system is conducive to independent R&D of new processes.

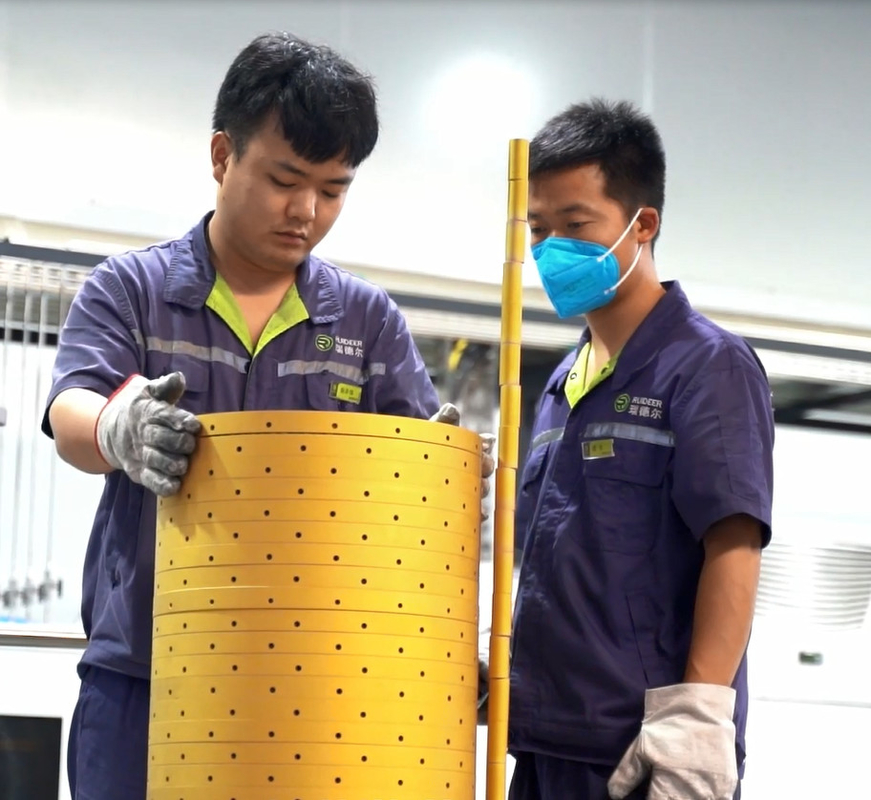

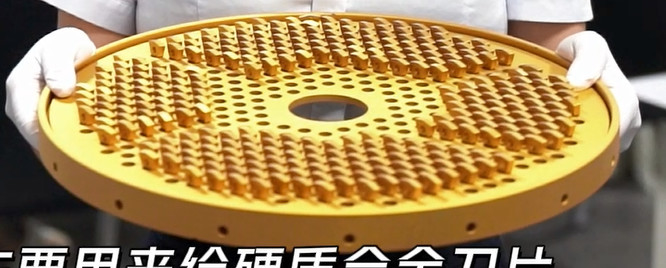

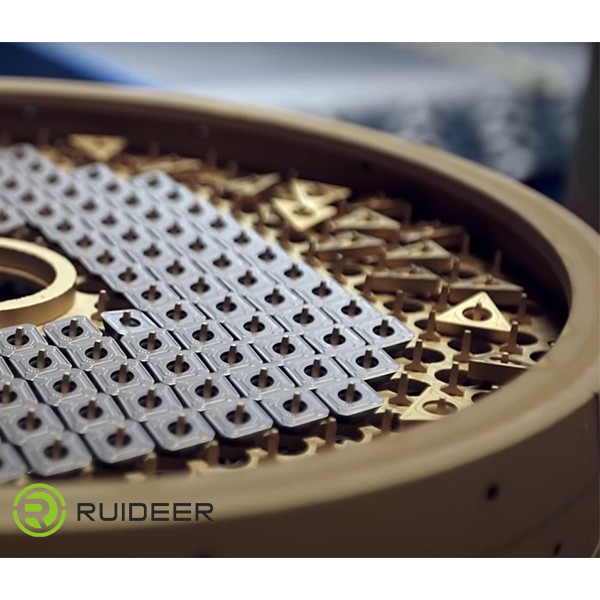

4.CVD graphit boat

Various types of graphite boats can be provided.

5.CVD reaction chamber

The CVD reaction chambers are centrifugally cast with high -temperature alloy,which can greatly reduce deformation adn increase the life time to 200 furnaces.
