Place of Origin:
China
Brand Name:
Ruideer
Model Number:
RDE530L

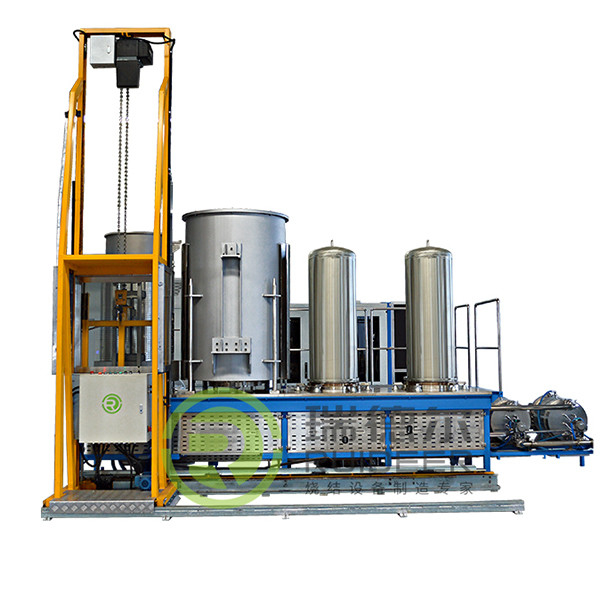

The Chemical Vapor Deposition Coating Machine is a state-of-the-art coating process equipment designed for vacuum coating technique. It is widely used to deposit a variety of materials, such as Titanium Carbide (TiC), Titanium Nitride (TiN), Titanium Carbonitride (MT/HT-TiCxNy) and Alpha-Al2O3, on surfaces of various substrates.
This coating machine is equipped with a power supply of AC380V/50Hz and is capable of providing a coating pressure of 0.1-1.0MPa and a coating temperature of 200-1050℃. It also has a loading weight of 400kg and is highly efficient in terms of production speed and coating quality.
The Chemical Vapor Deposition Coating Machine is an ideal choice for industries such as automotive, aerospace, medical and electronics, as it ensures high-quality and consistent deposits with a wide range of materials and substrates.
| Parameter | Value |
|---|---|
| Chemical Vapor Deposition Coating Machine | - |
| Coating Temperature | 200-1050℃ |
| Control System | PLC |
| Loading Weight | 400kg |
| Cooling System | 2 Sets Of High-performance Water-cooled Condensate Traps |
| Coating pressure uniformity | -±2mbar |
| Power Supply | AC380V/50Hz |
| Coating Thickness | 5-20um |
| Coating Speed | 0.1-2.0m/min |
| Coating Type | CVD |
The Chemical Vapor Deposition Coating Machine is an advanced surface coating apparatus developed by Ruideer. Model RDE530L is manufactured in China and it is equipped with all the features to make it the best choice for industrial coating applications. It has a coating speed of 0.1-2.0m/min and can be used to coat materials such as Titanium Carbide (TiC), Titanium Nitride (TiN), Titanium Carbonitride (MT/HT-TiCxNy) and Alpha-Al2O3. The machine also features two sets of high-performance water-cooled condensate traps for better cooling and a coating pressure uniformity of -±2mbar. The loading weight of the machine is 400kg.
Brand Name: Ruideer
Model Number: RDE530L
Place of Origin: China
Coating Pressure: 0.1-1.0MPa
Heating System: Electric Heating
Coating Temperature: 200-1050℃
Coating Thickness: 5-20um

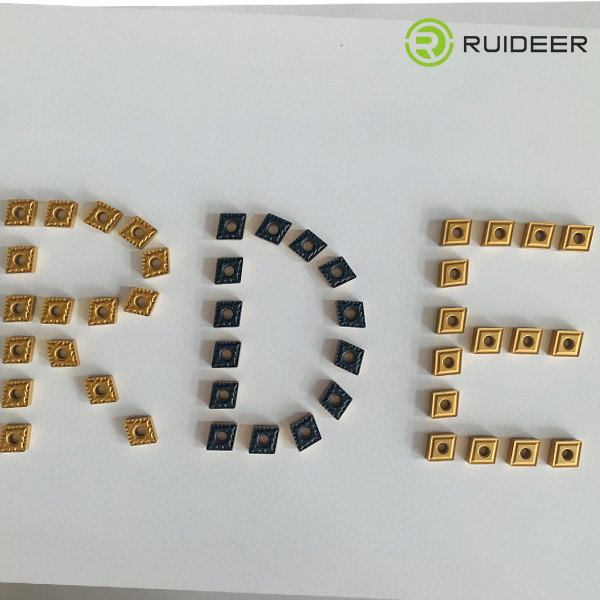

Coating Material: Titanium Carbide (TiC),Titanium Nitride (TiN),Titanium Carbonitride (MT/HT-TiCxNy),α-Al2O3
Ruideer CVD Coating Machine is the perfect choice for Surface Coating Apparatus with Chemical Vapor Deposition Coating Machine.
We provide technical support and services for CVD Coating Machines. Our services include:
We also offer product training and support for CVD Coating Machines, as well as remote monitoring and support services. If you have any questions or need assistance with your CVD Coating Machine, please contact us for more information.
The CVD Coating Machine is securely packaged in a wooden box to ensure its safety during shipping. The box is filled with protective material such as foam or newspaper to minimize the risk of damage. The box is then sealed and labeled for easy identification during the shipping process.
The CVD Coating Machine is shipped via air cargo or sea freight. The shipping cost will depend on the weight of the product and the destination. For international shipping, the package will be accompanied by necessary documents such as the commercial invoice, packing list, and certificate of origin.
