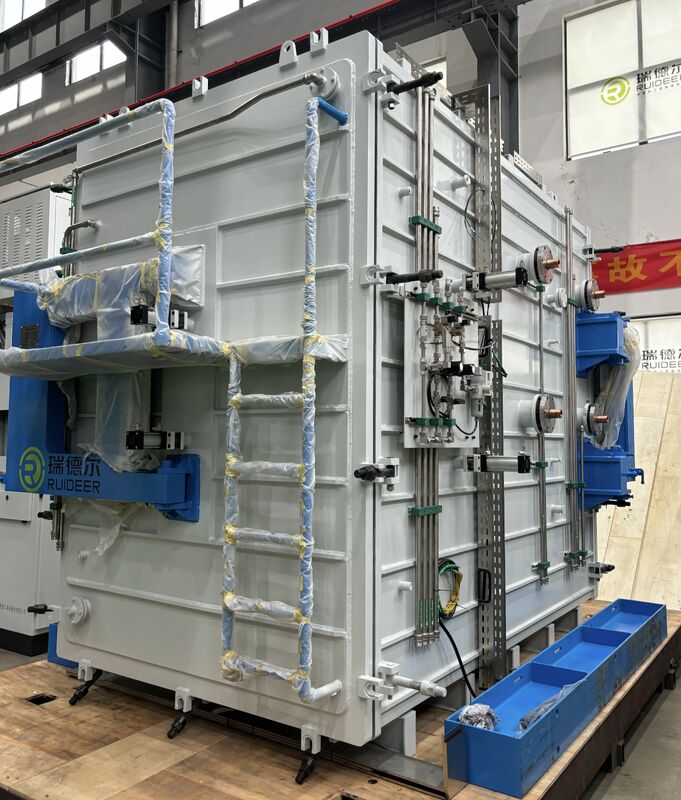

The complete machine adopts modular design, easy for disassembly, assembly and transportation, eco-friendly.

The complete machine adopts modular design, easy for disassembly, assembly and transportation, eco-friendly.

Place of Origin:

CHINA

Brand Name:

RUIDEER

Certification:

CE/ISO

Model Number:

Z1000

Contact Us
Request A Quote
Product Details
Power Rating:
400KVA
Material:
Steel
Design Temperature:
1100℃
Voltage::
380V
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Price Negotiable
Packaging Details
Wooden Case
Delivery Time
4-6 Months
Supply Ability
3 Sets/Months
Product Description

      Ruideer has been awarded honorary titles such as National High-Tech Enterprise, National Specialized and Sophisticated "Little Giant" Enterprise, National Manufacturing Single Champion Product (Pressure Sintering Furnace), and National Green Factory. The company has passed ISO9001 quality management system certification, environmental management system certification, occupational health and safety management certification, intellectual property management standards certification, and CE certification, among others. It possesses 130 authorized intellectual property rights, including 15 domestic invention patents and 4 international invention patents.


    Packaging Advantage: The furnace adopts a modular design, which is easy to disassemble for packing and container loading, reducing the risk of equipment damage during overseas export.


     Technical Parameters:


Design Temperature (℃)

1100℃

Max. Working Temperature (°C)

1050℃

Ultimate Vacuum (Pa)

5Pa(Clean, dry, cold, and empty furnace status)

Heating Method

Graphite resistance type

Zinc Penetration Rate

≥95%

Zinc Residue

≤20ppm


Cooling Time

8-10 h (Cooling time from sintering temperature of 1050°C down to 100°C. Water temperature ≤26°C, 2 bar ≤ water pressure ≤ 3 bar, water flow rate 30-40 m³/h)



After-sales Service


Warranty period:
    The warranty period of the equipment is 12 months, which starts from the date of installation and debugging of the supplier. Equipment failure happens, after-sales service personnel shall give solutions wthin 2 hours, after receiving thebuyer's notification If it is need to go to the site for treatment, operators dispatched by seller should arrive at the sitewithin 48 hours after go aboard. In case of emergency.operators should arrive at the site within 48 hours after go aboard.and continue to make repairs until the fault is removed and the equipment returns to normal.

    The Seller shall train the Buyer's personnel during the acceptance inspection. When the equipment is installed and commissioned at the Buyer's site, the Buyer's operation and maintenance personnel shall assist the Seller's personnel in the installation and commissioning work, and undergo practical operation and maintenance training. The Seller's

technical personnel shall explain the basic principles of the equipment, maintenance knowledge, and handling measures for common faults.
