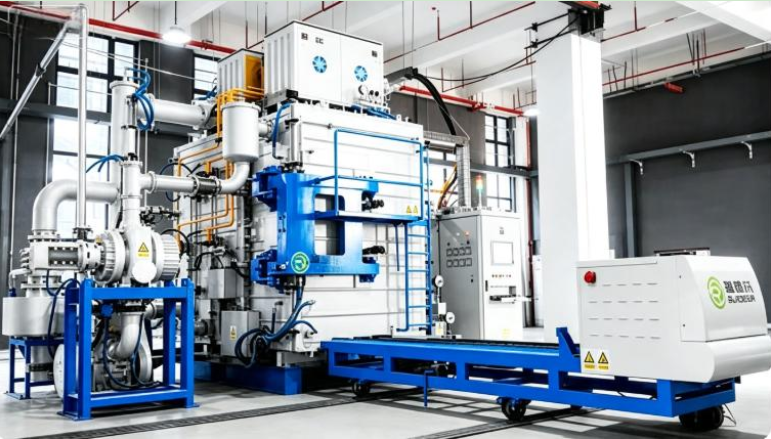

Name: A Horizontal Zinc Melting Furnace That Conforms To Standard Design
Brand: Zhuzhou Ruideer Metallurgy Equipment Manufacturing Co.,Ltd
SKU: Z1000
Price: 10000003.00 USD
Availability: InStock

Home > Products > Zinc Melting Furnace >

A Horizontal Zinc Melting Furnace That Conforms To Standard Design

Place of Origin:

CHINA

Brand Name:

RUIDEER

Certification:

CE/ISO

Model Number:

Z1000

Request A Quote

A Horizontal Zinc Melting Furnace That Conforms To Standard Design

Product Details

Power Rating:

400KVA

Material:

Steel

Voltage:

380V

Design Temperature:

1100℃

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Price Negotiable

Packaging Details

Wooden Case

Delivery Time

4-6 Months

Payment Terms

T/T

Supply Ability

5 Months/Set

Max working temperature 1050 degrees Vacuum Zinc Melting furnace for tungsten carbide scrap recycle pressure rise rate 3Pa per hour precise pressure control system

Get Best Price

Pressure rise rate 3Pa h Zinc Melting Furnace designed for maximum alloy processing capacity 1200kg ensuring consistent melting

Get Best Price

Maximum alloy processing capacity 1200kg Vacuum Zinc Melting furnace for tungsten carbide scrap recycle utilizing 360kW heating power alloy recovery

Get Best Price

Pressure Rise Rate 3Pa per Hour Zinc Melting Furnace Zinc Penetration Rate Less Than or Equal to 20ppm Full Load Cooling Rate 12 to 14 Hours

Get Best Price

86-0731-22506328-22506328

Contact Now

Product Description

Intruduction:

Zhuzhou Ruideer Intelligent Thermal Equipment Co., Ltd. is a solution provider for the entire industry chain of powder metallurgy materials and ceramic materials.Swiss precision, German quality, intelligent Chinese manufacturing—the Ruideer brand is your faithful choice.

The furnace is capable of operating under both vacuum and partial-pressure atmospheres. It adopts a control method that combines semi-automatic and manual operations, balancing integrated control with operational flexibility. The entire system features a modular design, making it easy to upgrade and maintain.

Furnace shell design standards:

1.The design, manufacturing, auditing, and pressure testing of this furnace shell are conducted in accordance with relevant Chinese regulations.

2.It consists of 2 furnace doors located at the front and rear positions respectively, connected by furnace door hinges, with manual push-pull operation to open and close the doors.

3.It adopts a box-type, water-cooled jacket design. The furnace body is designed with evacuation ports, instrument mounts, thermocouple holes,process gas inlets, etc.

Technical Parameters:

Design Temperature (℃)	1100℃
Max. Working Temperature (°C)	1050℃
Ultimate Vacuum (Pa)	5Pa(Clean, dry, cold, and empty furnace status)
Heating Method	Graphite resistance type
Zinc Penetration Rate	≥95%
Zinc Residue	≤20ppm
Cooling Time	8-10 h (Cooling time from sintering temperature of 1050°C down to 100°C. Water temperature ≤26°C, 2 bar ≤ water pressure ≤ 3 bar, water flow rate 30-40 m³/h)

After-sales Service

Warranty period:
The warranty period of the equipment is 12 months, which starts from the date of installation and debugging of the supplier. Equipment failure happens, after-sales service personnel shall give solutions wthin 2 hours, after receiving thebuyer's notification If it is need to go to the site for treatment, operators dispatched by seller should arrive at the sitewithin 48 hours after go aboard. In case of emergency.operators should arrive at the site within 48 hours after go aboard.and continue to make repairs until the fault is removed and the equipment returns to normal.
