Product Description

Cemented tungsten carbide serves as the core raw material for cemented carbide cutting tools. During production, metallic zinc is added as a forming auxiliary to fabricate alloy green bodies. Zinc Melting Furnaces are special equipment for dezincing and purifying tungsten scrap.

The Zinc Melting Furnaces is exclusive thermal processing equipment that enables the separation of tungsten and zinc. Acting as the only processing solution, it relies on a high-temperature vacuum environment and the difference in melting and boiling points to strip zinc from the tungsten matrix, accomplishing two processes simultaneously: tungsten purification and zinc recovery.

Technical Parameters

Max. working temperature	1050℃
Temperature uniformity	≤8
Maximum alloy processing capacity	600kg
Ultimate vacuum	5 pa
Pressure rise rate	3 pa/h
Zinc penetration rate	≥80%

Function Itroduction

The 1-to-2 zinc reclaim furnace features a bottom zinc collection structure, where both zinc vaporand condensed zinc droplets settle downward along the gas flow direction. This effectivelyprevents secondary evaporation and minimizes energy waste.

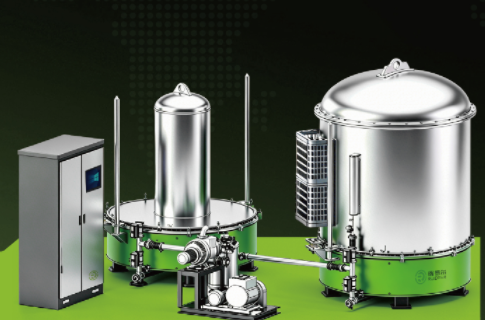

The equipment is configured with a1-to-2 dual-chamber design, meaning a single heating bell is paired with two independent retorts(A and B).
While the heating bell is actively processing retort A, retort B can be loadedsimultaneously. Once the process in retort A is complete, the heating bell can be directly hoistedto retort B to initiate its heating cycle, without waiting for the bell to cool down to the unloadingtemperature. This alternating cycle enables continuous production operations.
