Horizontal / Vertical Stainless Steel Sic Vacuum Sintering Furnace China Sinter Hip Furnace

Sic Vacuum Sintering Furnace

Horizontal Sinter HIP Furnace

Vertical Sinter HIP Furnace

Place of Origin:

China

Brand Name:

Ruideer

Certification:

Model Number:

336/4412/5518

Request A Quote

Product Details

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

USD1200000.00-20000000.00

Packaging Details

wooden cases

Delivery Time

5-8 months

Supply Ability

5-6 months/set

Precision 1800C Silicon Carbide Reaction Sintering Furnace with ≤±5C Temperature Uniformity

Get Best Price

Temperature Furnace with Pressure Level 1MPa/6MPa/10MPa and Temperature Performance

Get Best Price

Tungsten carbide vacuum sintering furnace Chinese Supplier High Pressure International Certificate

Get Best Price

6MPa Sinter HIP Furnace Durable Working Life and Dimension Of Furnace 4500x5400x3500mm for Industrial

Get Best Price

86-0731-22506328-22506328

Contact Now

Product Description

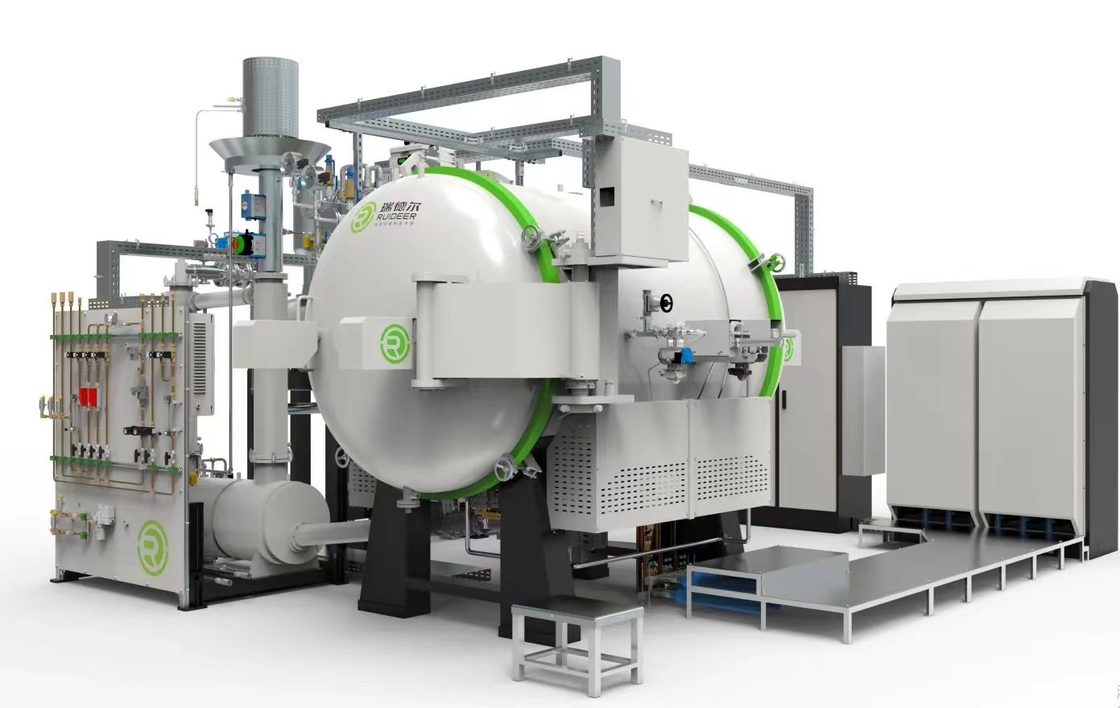

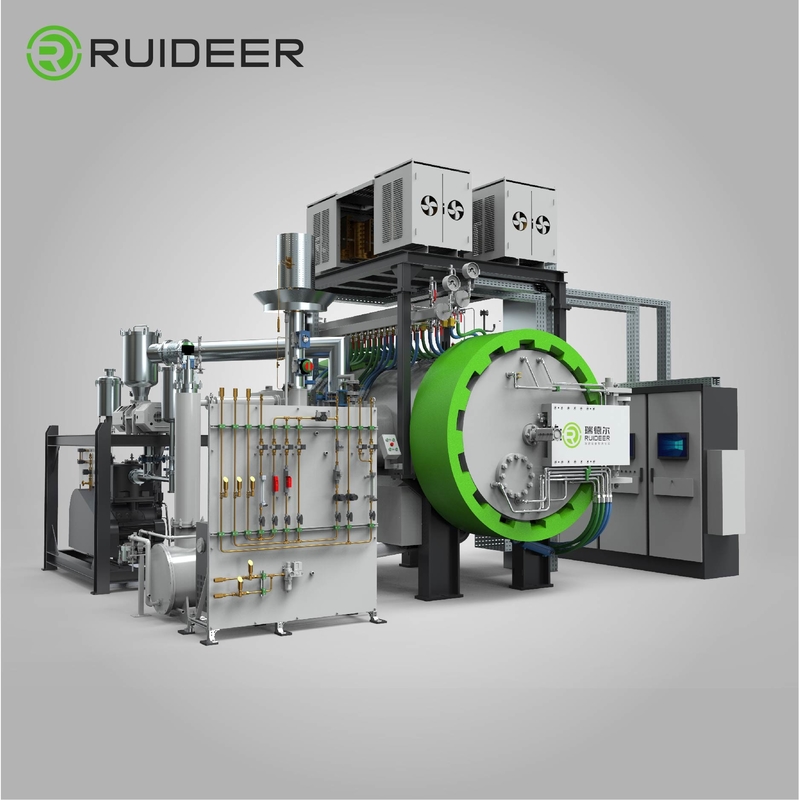

Factories horizontal or vertical stainless steel sic vacuum sintering China sinter hip furnace

Functions:

Automatic Positive Pressure, Negative Pressure Leak Detection
Ar Negative Pressure Dewaxing/H₂ Micro Positive Pressure Dewaxing
Vacuum Sintering
Partial Pressure Sintering (Static, Dynamic)
Pressure Sintering
Rapid Cooling
Fully-automatic control & Safety interlock& Breakpoint continuing heating & Wireless remote control& Self-diagnosis

Our company philosoph:

We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team,stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.

Furnace Type	Horizontal type(Max Working pressure:58bar/98bar
Furnace Type	RDE-3312-N	RDE-4412-N	RDE-5512-N	RDE-5518-N
Usable Space (WHL)	3003001200mm	4004001200mm	5005001200mm	5005001800mm
Max.Charge Load	300kg	500kg	1200kg	1500kg
Power Rating	320KVA	320KVA	430KVA	600KVA
Heating Zone	2/3 Zones	3 Zones	3 Zones	3 /4 Zones
Cooling time	≤5h	≤6h	≤7h	≤8h
Cooling time	Empty furnace, cooling from sintering temperature 2100℃ to 100℃. (water temperature≤26℃, water pressure 2-3bar, 55bar(95bar)≤Ar pressure≤58bar(98bar).
Service Life	20years/6000furnace cycles
Max. Working Temp	2100℃
Temperature Measurement	Special design High temperature W-Re5/26 Thermocouple
Max Vacuum Degree	1Pa (under cold, empty, dry furnace)
Leakage Rate	3Pa/h (Average value under cold, empty, dry furnace)
Wax Collection	≥98%(Argon gas negative dewaxing, 3-time average value)
Forming Agent	Paraffin,PEG,Rubber,(C₁₂H₂₂O₅)n etc.
Input gas	N₂, Ar, H₂
Functions	Automatic Positive Pressure, Negative Pressure Leak Detection Ar Negative Pressure Dewaxing/H₂ Micro Positive Pressure Dewaxing Vacuum Sintering Partial Pressure Sintering (Static, Dynamic) Pressure Sintering Rapid Cooling Fully-automatic control & Safety interlock& Breakpoint continuing heating & Wireless remote control& Self-diagnosis
