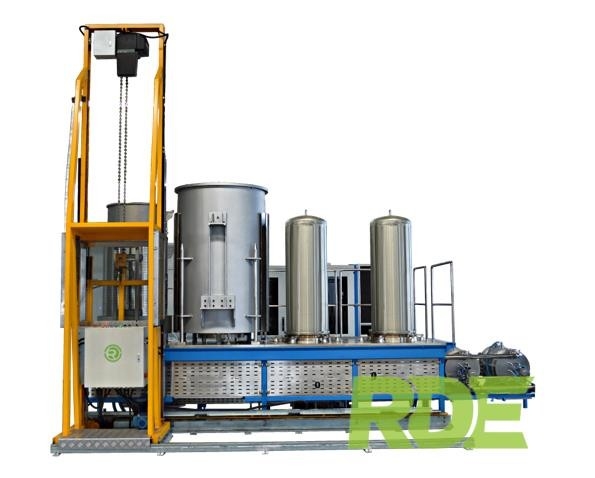

RDE 530L CVD Coating Machine With Two Reaction Chambers and Kanthal Heating Elements

RDE 530L CVD Coating Machine With Two Reaction Chambers and Kanthal Heating Elements

  • Reaction Chamber
    2 Pcs
  • Maximum Temperature
    1100℃
  • Working Temperature
    900-1050°C
  • Total Power
    About 75KW
  • Heating Power
    About 55KW
  • Effective Size Of Reaction Chamber
    φ500mm×1500 Mm;
  • Place of Origin
    China
  • Brand Name
    Ruideer
  • Model Number
    530L
  • Minimum Order Quantity
    1 set
  • Price
    USD1200000.00-20000000.00
  • Packaging Details
    Special wooden box
  • Delivery Time
    5-8 months
  • Payment Terms
    T/T
  • Supply Ability
    3 sets

RDE 530L CVD Coating Machine With Two Reaction Chambers and Kanthal Heating Elements

RDE 530L CVD Coating Furnace With Two Reaction Chambers For Quick Switch



1. Equipment Strengths



1.1 Automatic Mode. According to the process settings, the individual components and processes are automatically controlled. Automatic control includes valve switch, process gas flow control, process liquid flow control, reactor pressure control, heating furnace and electric heating belt temperature control, etc., without human intervention in the whole process. The automatic operation process realizes automatic alarm processing. According to different alarm types, it will automatically enter the alarm mode to protect the products in the furnace. After the alarm is released, it can be manually restored to the state before the alarm.

1.2. The process is monitored throughout the process, all sensor data and valve status are saved to historical data, which can be viewed at any time.

1.3. Manual mode. There is a safety interlock, which automatically realizes the lock according to the gas type and temperature inside the reactor, and the reactor cannot be opened at will. The manual mode is set with one-button operation, such as vacuuming, H2 purge, N2 purge, etc., no need to manually move individual valves and vacuum pumps.

1.4. The alarm data is automatically saved, and the historical data can be retrieved at any time.





2 Main technical parameters
1. Power supply voltage: 380V 50HZ;
2. Maximum temperature: 1100°C;
3. Working temperature: 900-1050°C;
4. Total power: about 75KW;
5. Heating power: about 55KW;
6. Number of reaction chambers: 2
7. Effective size of reaction chamber: φ500 (inner diameter) mm×1500 (effective
height) mm;
8. Occupation size (l×w×h) : 8100×7000×5100mm;
9. Equipment weight: about 10T

For more details, please email us or call us at +86-16673365810.
