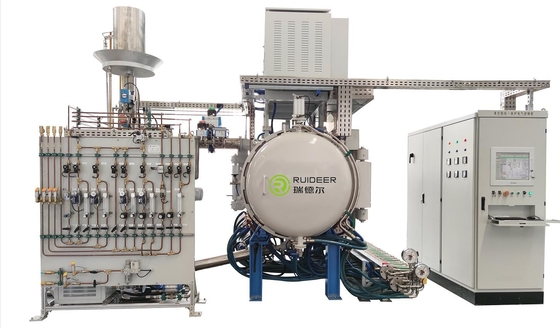

Graphite Vacuum Furnace Sintering Process With Siemens PLC Control System

Graphite Vacuum Furnace Sintering Process With Siemens PLC Control System

Graphite Vacuum Furnace Sintering Process

1Pa Vacuum Furnace Sintering Process

Siemens PLC Sinter HIP Furnace

Place of Origin:


Brand Name:




Model Number:

336, 4412, 5518

Contact Us
Request A Quote
Product Details
Power Supply:
Vacuum Level:
Product Name:
Sinter HIP Furnace
Heating Zone:
Heating Element:
Vacuum Furnace
Control System:
Temperature Range:
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Wooden case
Delivery Time
4-5 months
Payment Terms
T/T, L/C
Supply Ability
7 sets / month
Product Description

Product Description:

The Sinter HIP Furnace is a high-pressure heat treatment furnace that combines pressure-sintering and high-temperature sintering processes. Equipped with a vacuum level of 1Pa, it is able to provide an ideal environment for the sintering process. The chamber size can be customized to meet different requirements. With a temperature range of 0-1700℃ and a heating rate of 0-10℃/min, the Sinter HIP Furnace is capable of achieving high-speed uniform heating, making it ideal for high-temperature sintering applications. It uses a graphite heating element to ensure uniform heating throughout the chamber. With its excellent performance, the Sinter HIP Furnace is ideal for industrial applications such as pressure-sintering, high-temperature sintering, and other high-temperature heat treatment processes.



  • Product Name: Sinter HIP Furnace
  • Type: Vacuum Furnace
  • Material: Stainless Steel
  • Vacuum Pump: Rotary Vane Pump
  • Vacuum Level: 1Pa
  • High-Temperature Furnace: Ideal for sintering of high-temperature materials such as metals, ceramics and composites.
  • High-Pressure Furnace: Ideal for high-pressure sintering of materials such as metals, ceramics and composites.
  • High-Temperature Control: Precise temperature control for precise sintering.

Technical Parameters:

Parameter Value
Product Name Sinter HIP Furnace
Type Vacuum Furnace
Heating Zone 1-4
Control System PLC
Vacuum Pump Rotary Vane Pump
Heating Element Graphite
Material Stainless Steel
Power Supply 380V/50Hz
Vacuum Level 1Pa
Heating Rate 0-10℃/min
Application High-Pressure Sintering Furnace, High-Pressure Heat Treatment Furnace, Sintering-Process Furnace, Vacuum Sintering Furnace


Sinter HIP Furnace:High-Performance Heating and Pressure-Sintering Solution

Ruideer Sinter HIP Furnace is designed to provide a high-performance heating and pressure-sintering solution for a wide range of applications. With its multiple models, including 336, 4412, and 5518, Ruideer Sinter HIP Furnace offers users a wide range of choices to best suit their needs. This heat treatment furnace is certified with CE, and the minimum order quantity is 1 set.

This high-pressure heat treatment furnace comes with a vacuum level of 1Pa and a heating element of graphite. It is equipped with a PLC control system and made of stainless steel, with customizable chamber size to meet individual requirements. It is suitable for applications such as high-temperature furnace and pressure-sintering furnace, making it an ideal choice for various high-temperature vacuum furnace solutions.

The Ruideer Sinter HIP Furnace is packaged in a wooden case and delivered within 4-5 months. With its reliable performance and high-temperature capabilities, Ruideer Sinter HIP Furnace is the perfect choice for those looking for a high-performance heating and pressure-sintering solution.



Sinter HIP Furnace
  • Brand Name: Ruideer
  • Model Number: 336, 4412, 5518
  • Place of Origin: China
  • Certification: CE
  • Minimum Order Quantity: 1 set
  • Packaging Details: Wooden case
  • Delivery Time: 4-5 months
  • Chamber Size: Customized
  • Product Name: High-Pressure Sintering Furnace, Pressure-Sintering Furnace, High-Pressure Heat Treatment Furnace
  • Vacuum Level: 1Pa
  • Power Supply: 380V/50Hz
  • Type: Vacuum Furnace

Support and Services:

Sinter HIP Furnace provides technical support and services to all of its customers. Our technical support team is available 24/7 to provide assistance with installation, maintenance, troubleshooting, and any other technical issues that may arise. We also offer training and consultation services to ensure that our customers are able to get the most out of their Sinter HIP Furnace. Additionally, we back our products with a one-year limited warranty and provide replacement parts as needed.
