145-1450 Psi Sintering Furnace With Great Atmosphere Uniformity

145-1450 Psi Sintering Furnace With Great Atmosphere Uniformity

1450 Psi Sinter HIP Furnace

Great Atmosphere Uniformity Sinter HIP Furnace

35T Vacuum Sintering Furnace

Place of Origin:

China

Brand Name:

Ruideer

Certification:

CE certificate, GB150, JB4732

Model Number:

Customizable

Contact Us
Request A Quote
Product Details
Usage:
Sintering Furnace,Heat Treatment Furnace,Vacuum Furnace
Warranty:
12 Months
Weight:
6-35T
Voltage:
220V/380V
Temperature Uniformity:
±5 ℃
Forming Agent:
PEG, Rubber, Resin
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 93,000-77,000,000
Packaging Details
Special wooden box
Delivery Time
5-8 months
Payment Terms
L/C, T/T
Supply Ability
7 sets / month
Product Description

145-1450 Psi Sintering Furnace With Great Atomosphere Uniformity

Technical parameters



Service life 6000times / 20-years service life



Max. Loading weight



≥500kg(According to products and loading space)



Max. Designed temp.



1800℃(Heating temperature)



Max. Working temp.

1600℃



Max. working pressure

10bar/58bar/98bar



Ultimate vacuum degree

1pa (After heating, under cold,empty,dry condition)



Pumping speed



The vacuum degree is up to 5 Pa within 30min after starting pump. The vacuum degree can reach 3pa after pumping continually within 30min.

Leakage rate (average 24h)



2Pa/h(After testing ultimate vacuum,u nder empty cold, clean condition, test in average 24h)



Wax-collection rate



≥98% (Ar dewaxing with 10kg wax absolutely, average not more than 3 times )



Max. Ramp up rate



8℃/min(Room temperature ramp up to 1450℃ in vacuum,empty loaded condition,can be soaked in process when 600℃,1000℃ and 1200℃.

≥5℃/min when Fully loaded



Cooling time



≤6~7h(From 1480℃ drop to 100℃ when fully-loaded,water temperature≤28℃ )



UPS time



Supply power to indicator and to control furnace when power-off, Keeping time≥80min



Temperature uniformity



YG8 or YC40 control inserts to test:Magnetic saturation deviation after debinding ≤±0.25%,

Coercivity deviation≤±0.3KA/M



Temperature gradient



≤±7℃ (Vacuum sinter to 1450℃,Put ceramic FERRO of grade 334 on flat graphite boards(ceramic FERRO supplied by buyer) ,empty condition,can be soak in process,this test result only as reference)
Heating power 280KVA,Suggest user’s inlet wire:≥180mm2



Temp.measurement Mode



WRe5-26 double-core single thermocouples,mutually redundant,stable and reliable
Temperature control mode 3-zone temp. Control

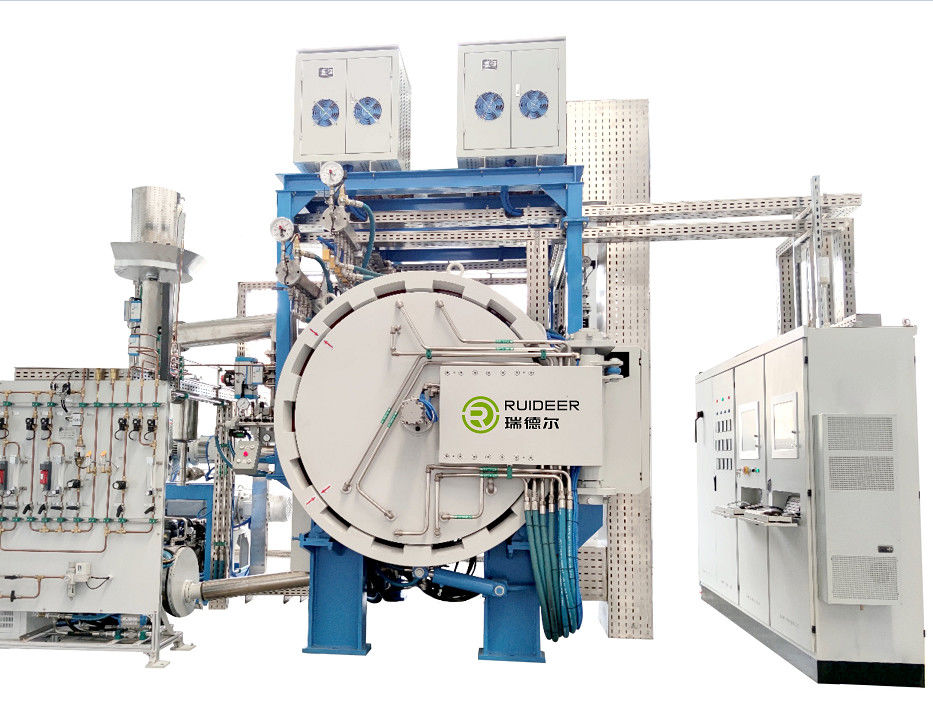

 145-1450 Psi Sintering Furnace With Great Atmosphere Uniformity 0
