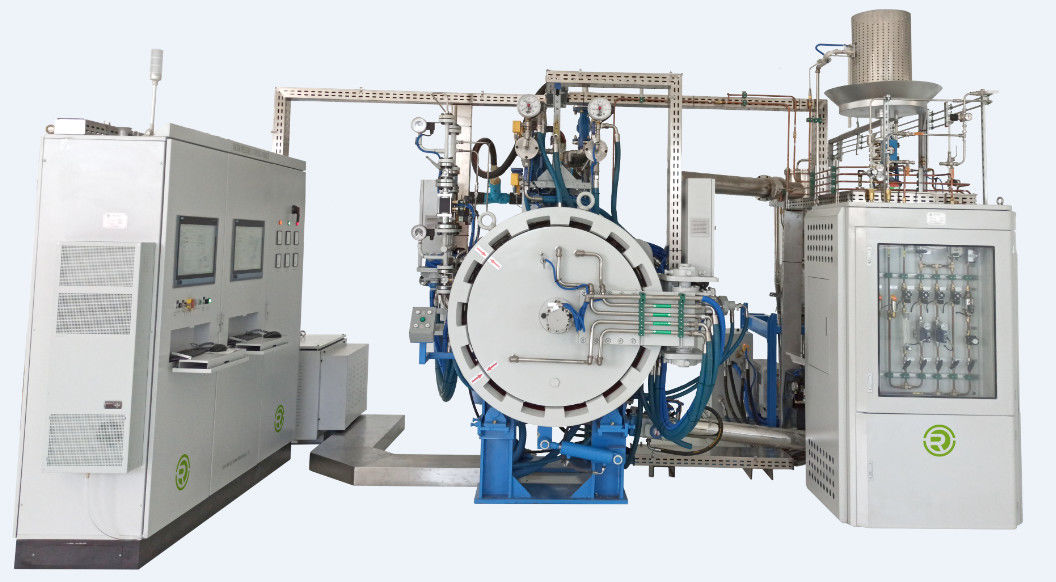

600KVA Cemented Carbide Debinding And Sintering Furnace

600KVA Cemented Carbide Debinding And Sintering Furnace

Cemented Carbide Debinding And Sintering Furnace

500KVA Debinding And Sintering Furnace

500KVA Debinding Sintering Furnace

Place of Origin:


Brand Name:



CE;ISO9001;ISO14001;OHSAS 18001;GB/T29490

Model Number:


Contact Us
Request A Quote
Product Details
Service Life:
20 Years
Operating Times:
300 Times/year
Heating Power:
After Sales:
Engineer Can Be Dispached To Foreign Country To Finish The Installation And Commissioning Work
Warranty Period:
12 Months
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Exempted from inspection wooden case
Delivery Time
100-120 work days
Payment Terms
L/C, T/T
Supply Ability
8 sets/month
Product Description

500*500*1800-6 MPA sintering furnace for debinding and vacuum sintering of high performance cemented carbide materials


Main application

It can realize positive pressure or negative pressure dewaxing process (molding agent for paraffin wax or rubber), vacuum sintering, partial pressure sintering, pressure sintering, rapid cooling and other batch production operations and laboratory research and development operations. Sintered carbide blades, ceramic blades, extruded bar products and special-shaped products and other powder metallurgy products.


General requirements
The cemented carbide pressure furnace is single-chamber, horizontal, periodic heating, heating with low voltage and high current graphite electric heating element, with multiple heating units, each unit is separately controlled temperature; With degreasing, vacuum sintering, partial pressure sintering, pressure sintering and rapid cooling functions, the whole process by computer automatic control, monitoring, tracking, fault self-diagnosis simulation display and record.
Design standard: 6000 times of use, 20 years of service life, double door horizontal structure, horizontal structure design for easy loading and unloading and maintenance, the whole process of automatic control.
Using the insulation tube with a built-in graphite inner liner structure. In general, it meets the strict requirements of furnace temperature uniformity and atmosphere uniformity in the sintering process of high-performance cemented carbide. Furnace structure design is advanced and reasonable, easy to operate and maintain. The main supporting components (control components, sensors, graphite heating element, thermocouple, main control valve, vacuum pump, etc.) have the current international advanced level, can adapt to the long-term, stable, reliable mass production requirements. At the same time, the equipment should also meet the national requirements of energy saving and environmental protection.


Technical specification

Design operating times 6000 times(furnace shell)
Valid working zone size 500mm×500mm×1800 mm
Max.loading weight 1500kg
Max.working zone temperature 1550℃(under the vacuum sintering condition,heating up to 1600℃)
Max.working pressure 58bar
Pumping speed Pump start up to 5Pa within 30 minutes (in empty furnace, clean, cold state)
Ultimate vacuum degree 2pa(in empty furnace, clean, cold state, after opening the vacuum pump for 60 minutes)
Leakage rate ≤3pa/h(After the ultimate vacuum is measured after the oven, stop the operation of the pump set and start the test. Empty furnace, clean, cold state, average value within 3 hours).
Wax yield rate ≥98% (Argon negative pressure dewaxing, 10Kg pure paraffin wax as the test sample, the maximum three average times ).
Max.heating up speed 5℃/min(Under the condition of vacuumempty furnace,indoor temperature up to 1450℃,600℃,1000℃,1200℃ allow heat preservation for 40 minutes.).
Pressurized time ≤20minutes,it can be set(the temperature is 1450℃,pressurized to 58bar).
Rapid cooling time ≤1h(full load,cooling down temperature from1450℃ to 100℃,water temperature≤26℃,55bar≤pressure≤58bar).

Uninterruptible power supply guarantee time


Power the indicator lamp and control the furnace when the power is off, the time is ≥80 minutes.
Heating mode  3 zone temperature control mode
Temperature uniformity of heating zone Temperature uniformity at the maximum pressure (58bar) 1550℃ : high pressure gas is charged at the maximum allowable speed, temperature fluctuation between the set value and the measured value of the thermocouple is ≤±5℃.
Uniformity of atmosphere in sintering zone Uniformity of positive or negative pressure dewaxing integration sintering: YG6 (medium particles) or YC40 grade rubber or paraffin molding agent sample, uniform distribution. Dewaxing integrated sintering, sample strips and procedures provided by the buyer, confirmed by the seller. Cobalt magnetic field: test after dewaxing, cobalt magnetic deviation range: ≤± 0.2%; Coergence force deviation range: ≤± 0.3kA /M (the temperature uniformity in the furnace is mainly measured by the furnace control plate).


600KVA Cemented Carbide Debinding And Sintering Furnace 0

After sales:

1. Installation, Commissioning And Acceptance

We do installation, commissioning and acceptance in buyer's plant.During the installation and commissioning period, the commissioning personnel shall be provided free of charge by the demander according to the staff standard.

The equipment shipped to the buyer, the seller received the buyer's notification, both within a week to carry the equipment out of the box together, then check the equipment and all components according to the packing list . Including equipment accessories, spare parts and special tools, attached manual and technical documents, etc. It can be installed after the acceptance check of equipment.
After installation and debugging, the equipment shall be accepted according to the technical accessories.


2. Training

When taking-over the Furnace to the customer, We will give a staff training to customer. The operating personnel of the customer should join to commission,test the furnace, when installing at customer’s company.
This is practical operation training and practical maintenance training,and our technical personnel will telling the basic principle,equipment maintenance knowledge,And the common fault handling measures.We can training 2 ~ 3 workers. ( Training how to maintenance and operating.)


3. Warranty period

The warranty period of the equipment is 12 months, which starts from the date of installation and debugging of the supplier. Equipment failure happens, after-sales service personnel shall give solutions within 2 hours, after receiving the buyer's notification . If it is need to go to the site for treatment , operators dispatched by seller should arrive at the site within 48 hours after go aboard. In case of emergency,operators should arrive at the site within 48 hours after go aboard, and continue to make repairs until the fault is removed and the equipment returns to normal.
