Single Chamber 6MPa Sinter HIP Furnace For Carbide Blades Sintering

Single Chamber 6MPa Sinter HIP Furnace For Carbide Blades Sintering

  • High Light

    6MPa Sinter HIP Furnace

    ,

    single chamber vacuum sintering furnace

    ,

    Carbide Blades Sinter HIP Furnace

  • Type
    Sintering Furnace
  • Usage
    Sintering Furnace
  • Warranty
    1 Year
  • Weight
    10-15T
  • Voltage
    Based On User Requirements
  • Heating Power
    150KVA
  • Place of Origin
    China
  • Brand Name
    Ruideer
  • Certification
    CE;ISO9001;ISO14001;OHSAS 18001;GB/T29490
  • Model Number
    200*200*450
  • Minimum Order Quantity
    1 set
  • Price
    Negotiable
  • Packaging Details
    Exempted from inspection wooden case
  • Delivery Time
    90-100 work days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    6 sets/month

Single Chamber 6MPa Sinter HIP Furnace For Carbide Blades Sintering

6MPa sinter-HIP furnace can sintering carbide blades, ceramic blades, extruded bar products and special-shaped products



Total requirements

      The cemented carbide pressure furnace is single-chamber, horizontal and periodic heating. It adopts low voltage and large current graphite electric heating element for heating. It has several heating units, each of which controls the temperature separately.With dewaxing, vacuum sintering, pressure sintering, pressure sintering and rapid cooling functions, the whole process by computer automation control, monitoring, tracking, fault self-diagnosis simulation display and record.

      Design standard: 6000 furnace times for use, 20 years of service life, two-door horizontal structure, horizontal structure design for easy loading and unloading and maintenance, the whole process of automatic control.

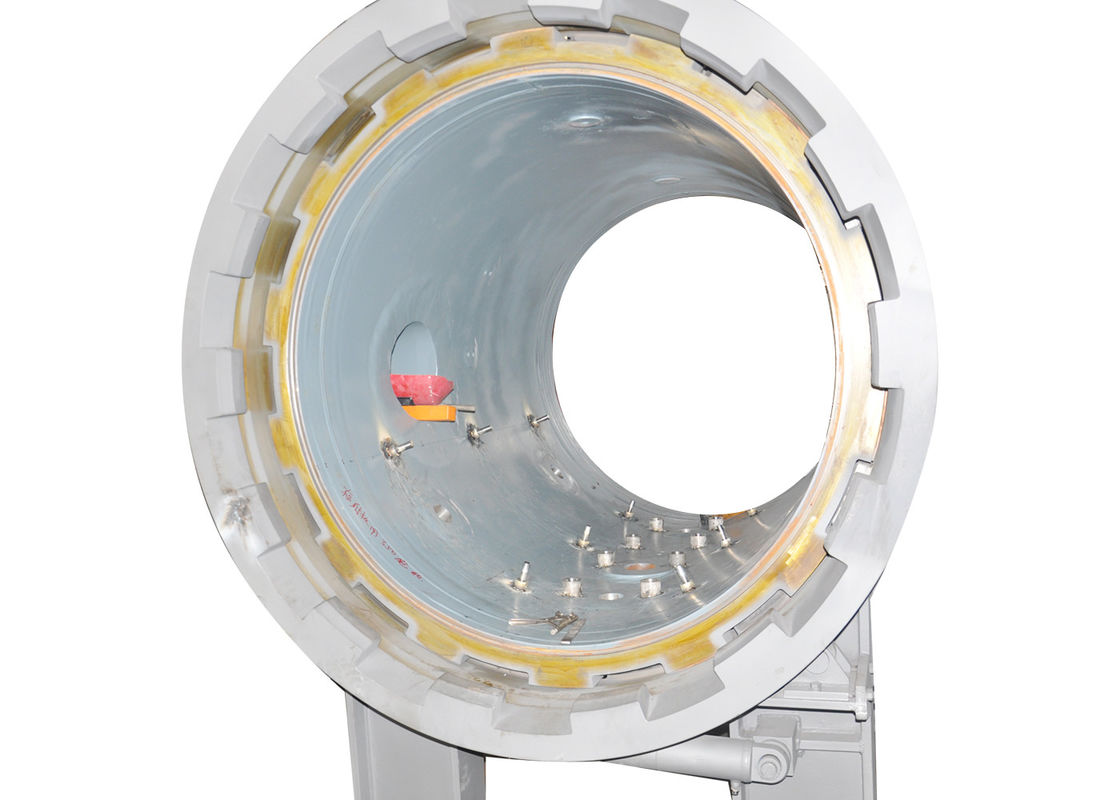

       It adopt the structure of insulation cylinder with inner graphite tank.On the whole, it can meets the strict requirements of furnace temperature uniformity and atmosphere uniformity in the sintering process of high performance cemented carbide.Furnace structure design is advanced and reasonable, easy to operate and maintain.The main supporting components (control components, sensors, graphite heating element, thermocouple, main control valve, vacuum pump, etc.) have the international advanced level, can adapt to the long-term, stable, reliable mass production requirements.At the same time, the equipment should also meet the national requirements of energy conservation and environmental protection.



Technical Parameters





Design operating times



6000 times pressure circulation(furnace shell)



Valid working zone size

200mm×200mm×450 mm



Maximum loading capacity

50kg



Maximum working temperature



1550℃(Under the vacuum sintering condition, heating up to 1600℃)



Maximum working pressure

58bar



Pumping speed



Up to 5pa within 30 minutes of pump starting (in empty furnace, clean, cold state)



Ultimate vacuum degree



2pa (In the empty furnace, clean, cold state, after the vacuum pump started for 60 minutes)



Leakage rate



≤3pa/h. After the ultimate vacuum is measured after the furnace is dryed, the pump group operation is stopped and then start the test.(Empty furnace, clean, cold state, average value within 3 hours. )

Wax collect rate



  • ≥98% (Argon negative pressure dewaxing,using 10kg pure paraffin for test sample,

Take a maximum of three average values.)





After sales

1.Installation, Commissioning And Acceptance

We do installation, commissioning and acceptance in buyer's plant.During the installation and commissioning period, the commissioning personnel shall be provided free of charge by the demander according to the staff standard.

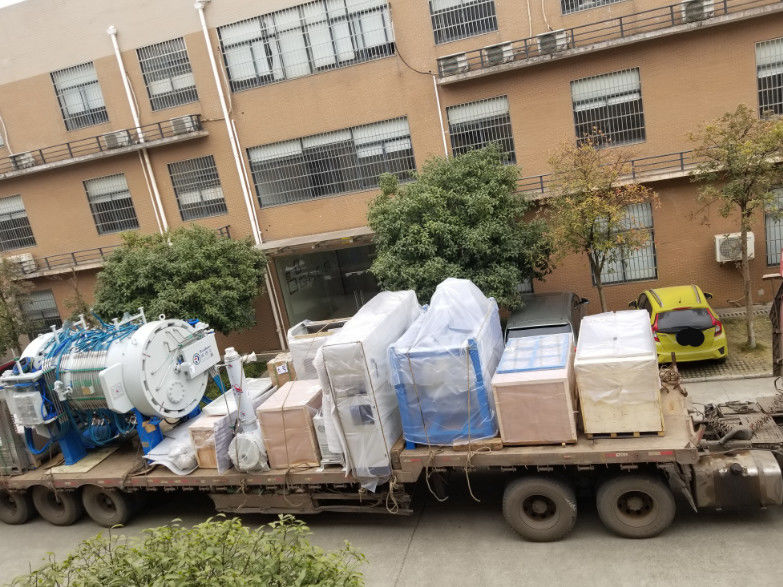

The equipment shipped to the buyer, the seller received the buyer's notification, both within a week to carry the equipment out of the box together, then check the equipment and all components according to the packing list . Including equipment accessories, spare parts and special tools, attached manual and technical documents, etc. It can be installed after the acceptance check of equipment.
After installation and debugging, the equipment shall be accepted according to the technical accessories.



2.Training

When taking-over the Furnace to the customer, We will give a staff training to customer. The operating personnel of the customer should join to commission,test the furnace, when installing at customer’s company.
This is practical operation training and practical maintenance training,and our technical personnel will telling the basic principle,equipment maintenance knowledge,And the common fault handling measures.We can training 2 ~ 3 workers. ( Training how to maintenance and operating.)



3. Warranty period

The warranty period of the equipment is 12 months, which starts from the date of installation and debugging of the supplier. Equipment failure happens, after-sales service personnel shall give solutions within 2 hours, after receiving the buyer's notification . If it is need to go to the site for treatment , operators dispatched by seller should arrive at the site within 48 hours after go aboard. In case of emergency,operators should arrive at the site within 48 hours after go aboard, and continue to make repairs until the fault is removed and the equipment returns to normal.
