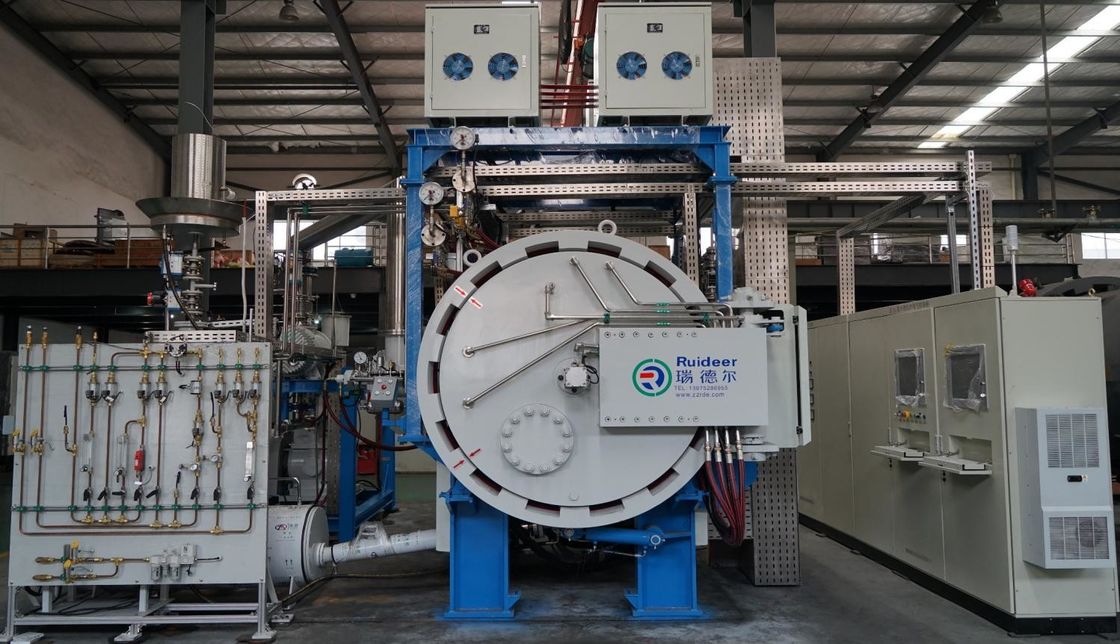

Wax Collection Rate 98% Sinter HIP Furnace For Stainless Steel / Precision Ceramic

Wax Collection Rate 98% Sinter HIP Furnace For Stainless Steel / Precision Ceramic

  • High Light

    hip furnace

    ,

    hot isostatic pressing equipment

  • Name
    Sinter HIP Furnace
  • Vacuum Leakage Rate
    1Pa/h,2Pa/h,3Pa/h
  • Wax-collection Rate
    98%
  • Applications
    Titanium Alloy, Carbon-atmosphere-sensitive Metal Products
  • Working Pressure
    1MPa/2MPa/ 6MPa/10MPa
  • Maximum Load
    Cutsom
  • Place of Origin
    Zhuzhou City, Hunan Province,China
  • Brand Name
    Ruideer
  • Certification
    CE;ISO9001;ISO14001;OHSAS 18001;GB/T29490
  • Minimum Order Quantity
    1 set
  • Price
    80000.00—1000000.00(USD)
  • Packaging Details
    Special wooden case packing
  • Delivery Time
    100-120 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    8 sets/month

Wax Collection Rate 98% Sinter HIP Furnace For Stainless Steel / Precision Ceramic

Wax Collection Rate 98% Sinter HIP Furnace For Cemented Carbide / Precision Ceramic





Hot Isostatic Press Sintering Furnace (HIP furnace)



Introduction

Hot Isostatic Pressing is a well established process for the improvement of a wide variety of materials such as titanium, steel, aluminum and superalloys. Using this process, voids within a casting can be reduced or eliminated and encapsulated powders can be consolidated to create fully dense materials. Also, dissimilar materials can be bonded together to manufacture unique, cost effective components.





Technical parameters:





Specifications

RDE-DYL-224 RDE-DYL-336/RDE-DYL-339 RDE-DYL-3535120/RDE-DYL-4412 RDE-DYL-5512/RDE-DYL-5518 RDE-DYL-5527

Effective space(w* h * l)mm

200*200*400

300*300*600/

300*300*900

350*350*1200/

400*400*1200

500*500*1200/

500*500*1800

500*500*2700

Max.Temperature

1600℃ 1600℃ 1600℃ 1600℃ 1600℃
Maximum load 50Kg 150Kg/200Kg 300Kg/350Kg 1200Kg/1500Kg 2000Kg

Vacuum leakage rate:(Average in cold,empty,dry chamber in 3 hours)

1Pa/h 2Pa/h 2Pa/h 3Pa/h 3Pa/h
Extreme vacuum 0.8Pa 0.8Pa 0.8Pa 1Pa 1.5Pa
Wax-collection rate(negative pressure dewaxing process.The maximum average value is 3 furnaces) 98% 98% 98% 98% 98%

Working pressure

1MPa/2MPa/

6MPa/10MPa

1MPa/2MPa/

6MPa/10MPa

1MPa/2MPa/

6MPa/10MPa

1MPa/2MPa/

6MPa/10MPa

1MPa/2MPa/

6MPa/10MPa

Cooling period(Sintering temperature—100℃)

40min-120min 40min-150min 120min-360min 180min-420min 180min-480min

Temperature control mode

Single zone/2-zone

2-zone/3-zone

2-zone/3-zone

3-zone/4-zone

4-zone

Atmosphere and temperatureuniformity

Com≤±0.15%

Hc≤±0.25KA/M

Com≤±0.15%

Hc≤±0.25KA/M

Com≤±0.2%

Hc≤±0.3KA/M

Com≤±0.2%

Hc≤±0.3KA/M

Com≤±0.2%

Hc≤±0.3KA/M

Input gas allowed

Ar,N2,He,H2,CH4,Co2

Functions:Vacuun dewaxing,H2 dewaxing,vacuum heating,heating with gas mixture(Co2 /CH4/H2),heating flowing gas,heating pressure gas,Rapid cooling.



Functions:

Vacuun dewaxing, H2 dewaxing, vacuum heating, heating with gas mixture(Co2 /CH4/H2), heating flowing gas, heating pressure gas, Rapid cooling.



Applications:

For Cemented Carbide, Precision Ceramic, stainless steel, Iron-bae alloy, Copper-base alloy, Aluminum , high density alloy, tungsten-nickel alloy, tungsten-copper alloy, titanium alloy, carbon-atmosphere-sensitive metal products.



Our Service



Pre-sale Service:

1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available.



On-purchase Service:

1. Exclusive and unique solution can be provided to our customer by our well trained and professional engineers and staff.

2. As an honest seller, we always use superior electronic parts and components, advanced machines,skilled technicians to ensure our products to be finished in high quality and stable feature.



After-sales Service:

1. The equipment warranty period is 12 months. Equipment failure happens, after-sales service personnel shall give solutions within 48 hours, after receiving the buyer's notification .

2. If need to get to the scene , the after-sales service personnel should be arrived at the scene within 72 hours after passing visa. And must be continuous to repair, until fault be excluded, Furnace running back to normal.

3. When taking-over the Furnace to the customer, We will give a staff training to customer.
