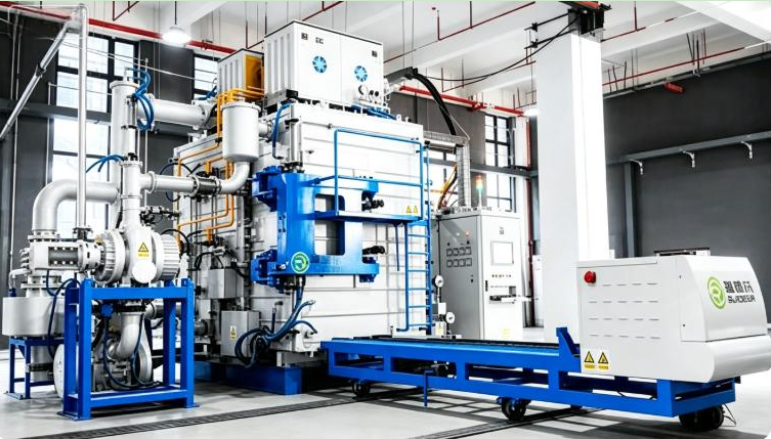

Name: RDE Zine Melting Furnace For Graphite Heat Element
Brand: Zhuzhou Ruideer Metallurgy Equipment Manufacturing Co.,Ltd
SKU: Z1000
Price: 10000003.00 USD
Availability: InStock

Home > Products > Zinc Melting Furnace >

RDE Zine Melting Furnace For Graphite Heat Element

Place of Origin:

CHINA

Brand Name:

RUIDEER

Certification:

CE/ISO

Model Number:

Z1000

Request A Quote

RDE Zine Melting Furnace For Graphite Heat Element

Product Details

Power Rating:

400KVA

Heating Element:

Graphite

Partial Pressure Gas:

Nitrogen

Batch Loading Capacity:

1000 Kg (Scrap Alloy)

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Price Negotiable

Packaging Details

Wooden Case

Delivery Time

4-6 Months

Payment Terms

T/T

Supply Ability

5 Months/Set

Multi-system Horizontal Zinc Process Furnace with a loading capacity of 1000 kg

Get Best Price

High‑vacuum configuration ensures a purer dezincing environment.

Get Best Price

Bell‑type zinc melting furnace featuring a bottom zinc recovery structure

Get Best Price

Continuous Operation Zinc Reclaim Furnace – One Bell, Two Retorts, Alternating Cycles

Get Best Price

86-0731-22506328-22506328

Contact Now

Product Description

It is used for reclaiming WC cemented carbide via the zinc process. Designed as a twin-chamber horizontal vacuum furnace, the front chamber serves as the heating zone, which accommodates graphite crucibles containing the alloy and zinc.Once the zinc melts, the cemented carbide scrap is submerged for thermal modification. The rear chamber acts as the cooling chamber, housing the zinc recovery crucible. The graphite crucibles in the heating chamber and the cooling chamber are connected via a graphite conduit. Once the molten zinc in the heating chamber vaporizes, it is transported through the graphite conduit to the cooling chamber where it condenses, thereby achieving the recovery and recycling of zinc. A water-cooling plate is used to cool the zinc recovery crucible, accelerating the cooling rate and improving production efficiency.

Max. Working Temperature	1050℃
Leakage rate	3 Pa/h (Tested after bakeout and ultimate vacuum measurement; stop the pump unit and start the test after 30 minutes. Average value within 3 hours under empty, clean, and cold furnace conditions)
Zinc Residue	Under the rated loading condition of 1 ton of zinc, the zinc residue is ≤ 20 ppm, provided that the cleaning and sorting processes of the alloy are carried out with thorough inspection and quality control.
Cooling Time	10-12 h (Cooling time from 950°C down to 100°C. Water temperature ≤26°C, 2 bar ≤ water pressure ≤ 3 bar, water flow rate 30-40 m³/h)
