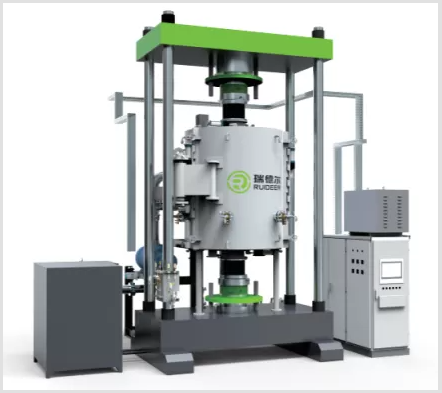

Equipped with double-arm water-cooled structure vacuum hot pressing sintering furnace, widely applied in laboratories and industrial factories.

Get Best Price

Video

Vacuum heat treatment furnace with Gas Pressure and dewaxing system 1-20MPA

Get Best Price

Get Best Price

Video

Get Best Price

86-0731-22506328-22506328

Contact Now

Product Description

Technical Parameters

Operating atmoshere	Nitrogen protection or vacuum state
Effective space dimension	500500600mm
Cold state limit vacuum	≤6.67×10⁻³ Pa
Pressure rise rate	≤2 Pa/h
Maximum operating temperature	2200°C
Heating rate	Emptyfurnace:RT~1500℃:≥8℃/min;1500~2200℃:≥7℃/min.
Cooling speed	Empty furnace, 2200℃ to 150℃ within 430 minutes, with fast cooling below 800℃.
Maximum mechanical pressure	100T
Temperature control	PID intelligent program control and manual control; 30- stage programmable temperature control.
Maximum range of flowmeter	Nitrogen flow rate: 200 L/min (controlled by mass flow meter + glass rotor), high-purity nitrogen (gas source pressure: 0.2-0.3 MPa, purity ≥99.999%)
