High Temperature Vacuum Hot Press Sintering Furnace With Multiple Systems

Place of Origin:

CHINA

Brand Name:

RUIDEER

Certification:

CE/ISO

Request A Quote

High Temperature Vacuum Hot Press Sintering Furnace With Multiple Systems

Product Details

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

PRICE NEGOTIABLE

Packaging Details

WOODEN CASE

Delivery Time

4-6 MONTHS

Supply Ability

3-4 MONTHS/SET

Semi-automatic Horizontal Zinc Melting Furnace, specially designed for cemented carbide recycling

Get Best Price

Bell-Type Zinc Process Furnace | One-to-Two Continuous Zinc Recovery Furnace

Get Best Price

Double Chamber Horizontal Zinc Melting Furnace Vacuum Zinc Recovery Furnace For Cemented Carbide Tungsten Cobalt Scrap Recycling

Get Best Price

Horizontal Zinc Melting Furnace, dimension: 100×60×50cm, equipped with 12 pcs graphite boats

Get Best Price

Contact Now

Product Description

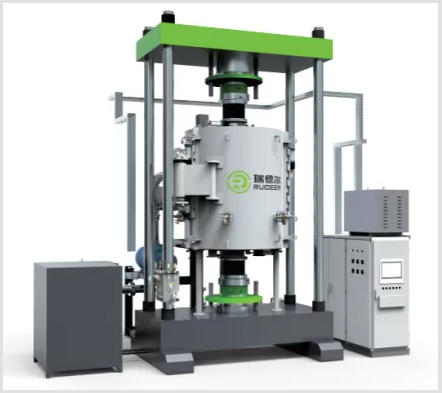

High Temperature Vacuum Hot Press Sintering Furnace With Multiple Systems

The equipment features a double-wall water-cooling structure with horizontal or vertical configurations. Available in various sizes for laboratory and industrial production applications, it supports single or dual pressure head configurations with dual force/displacement control modes.

Technical Parameter

Effective space dimension	500500 600mm
pressure rise rate	≤2 Pa/h
design temperature	2300℃
Maximum mechanical pressure	100T
Pressure stroke	0-300mm
Cooling speed	Empty furnace, 2200℃ to 150℃ within 430 minutes, with fast cooling below 800℃.

Key System Description

★Heating System

-Maximum working temperature: 2200°C.

-The heating element is made of high-purity isostatic graphite, arranged in a circular surrounding structure, with graphite electrodes.

★Vacuum System

-The vacuum system consists of 1 pre-stage pump,1 Roots pump, and 1 oil diffusion pump.

-The vacuum system operates on an automated program with negative pressure self-check functionality

★Atmosphere Control System

-All components are mounted on a single panel and connected via copper pipes

-Each process gas branch line is equipped with solenoid valves to achieve automatic

gas control.

-All tracheal tubes are arranged in neat alignment, with all branch pipe connections

made of brass material

★Pressure Boosting System

-Main components include the press main frame, hydraulic system, upper and lower pressing heads.

★Cooling Water Diversion System

-The cooling water system employs stainless steel pipes for both main inlet and return water lines.

The device features breakpoint reheat functionality, wireless remote diagnostic capability, and self-diagnostic functions.
