Place of Origin:
China
Brand Name:
Ruideer
Certification:
CE
Model Number:
336/4412/5518
Vacuum protective atmosphere heat treatment method to the choice of gas filling. When using the partial pressure of heating vacuum heat treatment back filling gas should choose the neutral or inert gases, high purity hydrogen, helium, nitrogen and argon gas, such as common gases, four gas cooling speed from fast to slow, in turn, for hydrogen, helium, nitrogen and argon. In the air as the cooling speed of 1, the hydrogen, helium, nitrogen, argon and air cooling speed ratio of 7, 6, 0.99, 0.7, respectively. Under any pressure, hydrogen has the maximum heat transfer capacity and maximum cooling speed, can be used for graphite as heating and insulation components of vacuum furnace. But, for high carbon steel grade, the cooling stage of high temperature (above 1050 ℃) may cause slight decarbonization; Used for high strength steel has the risk of hydrogen embrittlement. Using hydrogen as coolant supply system should be sealed and reliable, complete cooling after operation, should be timely discharge of hydrogen, and filling the nitrogen, may open the oven door, otherwise, has caused the risk of explosion.

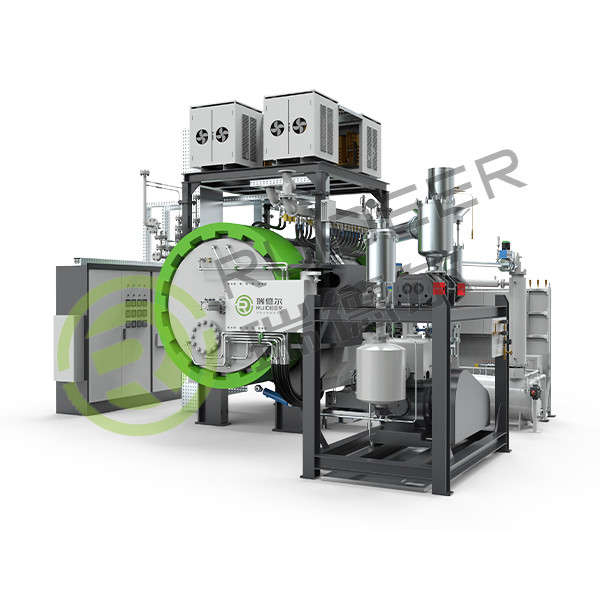

| Furnace Type | Horizontal type(Max Working pressure:58bar/98bar) | |||
| RDE-3312-N | RDE-4412-N | RDE-5512-N | RDE-5518-N | |
| Usable Space (W*H*L) | 300*300*1200mm | 400*400*1200mm | 500*500*1200mm | 500*500*1800mm |
| Max.Charge Load | 300kg | 500kg | 1200kg | 1500kg |
| Power Rating | 320KVA | 320KVA | 430KVA | 600KVA |
| Heating Zone | 2/3 Zones | 3 Zones | 3 Zones | 3 /4 Zones |
| Cooling time | ≤5h | ≤6h | ≤7h | ≤8h |
|
Empty furnace, cooling from sintering temperature 2100℃ to 100℃. (water temperature≤26℃, water pressure 2-3bar, 55bar(95bar)≤Ar pressure≤58bar(98bar). |
||||
| Service Life | 20years/6000furnace cycles | |||
| Max. Working Temp | 1800℃ | |||
| Temperature Measurement | Special design High temperature W-Re5/26 Thermocouple | |||
| Max Vacuum Degree | 1Pa (under cold, empty, dry furnace) | |||
| Leakage Rate | 3Pa/h (Average value under cold, empty, dry furnace) | |||
| Wax Collection | ≥98%(Argon gas negative dewaxing, 3-time average value) | |||
| Forming Agent | Paraffin,PEG,Rubber,(C12H22O5)n etc. | |||
| Input gas | N2, Ar, H2 | |||
| Functions |
Automatic Positive Pressure, Negative Pressure Leak Detection Ar Negative Pressure Dewaxing/H2 Micro Positive Pressure Dewaxing Vacuum Sintering Partial Pressure Sintering (Static, Dynamic) Pressure Sintering Rapid Cooling Fully-automatic control & Safety interlock& Breakpoint continuing heating & Wireless remote control& Self-diagnosis |
|||
• Design standards
The equipment is designed in accordance with the pressure vessel requirements of the Quality and Technical Supervision Bureau, and is qualified after pressure testing and shipped. The electrical design and construction meet national standards.
• Installation pre-test and pre-acceptance
The equipment is fully assembled in our factory, including all pipelines, vacuum pipelines, process gas pipelines, cooling water pipelines, compressed air pipelines, etc. Pre-testing can be carried out after installation. At the customer site, pipelines other than the equipment are provided by the customer. The installation also includes the connection of all cables. At the customer site, the main cable connecting the power cabinet is provided by the customer. After installation, we conduct vacuum and positive pressure leakage tests on the entire equipment, as well as mechanical and electrical function tests.
• Disassembly and transportation
The equipment will be disassembled in several large parts, packed in a standardized manner, and loaded into the transport vehicle.
• Customer site installation and commissioning
The Redel after-sales engineer will lead the team to complete commissioning, product trial burning and other work within 20 working days. The customer needs to make appropriate preparations and provide the necessary tools, such as hoisting and lifting equipment. And provide installation personnel support (it is recommended to have 1 mechanical personnel and 1 electrical personnel).
• Final acceptance
After installation and commissioning, the equipment can be finally accepted in accordance with the requirements of the technical contract.
• Training
Our after-sales engineers will provide a systematic and complete on-site training, including operation, maintenance, troubleshooting, etc.
• Technical data delivery
To ensure safe operation and equipment maintenance, the following technical data will be provided to customers:
1. Equipment installation layout
2. User manual
3. Spare parts list
4. Electrical drawings
5. Component manual
FAQ
Q: Are you a factory or trading company?
A:We are China leading high-temperature vacuum furnace manufacturer with over 10 years’ experience.
Q: Do you have customization or OEM service??
A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.
Q:What's your advantage?
A:
l Quick response to your enquiry
l High quality control
l Stable supply chain
l Timely delivery
l Excellent after-sales service
