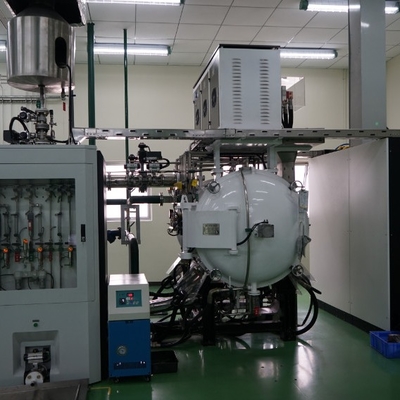

Metal Sintering Furnace For Carbon Sensitive Metal , Tungsten Alloy

Metal Sintering Furnace For Carbon Sensitive Metal , Tungsten Alloy

  • High Light

    Carbon Sensitive Metal Sintering Furnace


    Tungsten Alloy Metal Sintering Furnace


    Horizental Molybdenum Annealing Vacuum Furnace

  • Name
    Molybdenum Annealing Vacuum Furnace
  • Material
  • Structure
    Single Chamber,horizental Type
  • Warranty
    1 Year
  • After Sales
    Engineer Can Be Dispached To Foreign Country To Finish The Installation And Commissioning Work
  • Painting
  • Place of Origin
  • Brand Name
  • Certification
    CE;ISO9001;ISO14001;OHSAS 18001;GB/T29490
  • Model Number
    600mm × 600mm × 1200mm
  • Minimum Order Quantity
    1 set
  • Price
  • Packaging Details
    Exempted from inspection wooden case
  • Delivery Time
    100-120 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability

Metal Sintering Furnace For Carbon Sensitive Metal , Tungsten Alloy

Metal Sintering Furnace For Carbon-Sensitive Metal, Tungsten Alloy


This sintering furnace is applicable for and not limited to hard alloy products, high magnetic products, cermets products, ceramics products.



*Furnace body positive pressure leakage detection


*Furnace body negative pressure leakage detection



*Vacuum sintering



*Partial sintering


It including:continuous,intermittent and static.


*Vacuum cooling



*Rapid cooling




*Electrical control system


*Heating system


*Vacuum system


*Cooling water system


*Rapid cooling system


*Safety system


*Auxiliary system


Technical details

  • Valid working zone size:600mm × 600mm × 1200mm
  • Maximum loading capacity:1500kg,it depends on the product type.
  • Maximum design temperature:1300℃
  • Working temperature:1200℃
  • Heating mode: graphite rod resistance heating
  • Temperature control mode:3 zone independence temperature control
  • Vacuum rate: in the empty furnace, clean and cold state, the vacuum degree reaches 1x10-5 Torr (1.33x10-3 Pa) after starting the pump units for 60 minutes.
  • Leakage rate:≤6.65X10-1 Pa/h(In the empty furnace, clean, cold state, within 24 hours of the average)
  • Heating rate:5-10 ℃/min (full loading)
  • Rapid cooling time:≤5h (Annealing temperature drops to 100℃)
