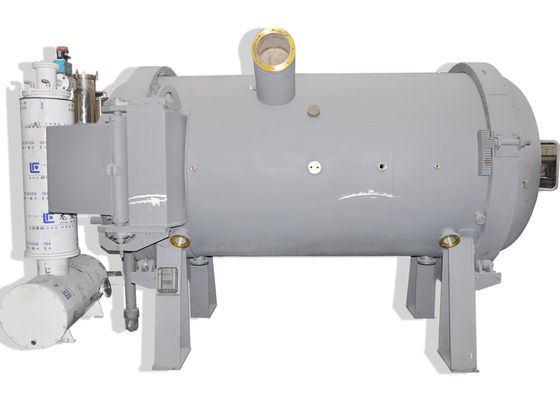

High Temperature Vacuum Electrical Resistance Furnace With Rapid Cooling

High Temperature Vacuum Electrical Resistance Furnace With Rapid Cooling

Vacuum Electrical Resistance Furnace

High Temperature Electrical Resistance Furnace

Rapid Cooling Vacuum Sintering Furnace

Place of Origin:

Zhuzhou, Hunan Province, China

Brand Name:



CE; ISO9001; ISO14001; OHSAS 18001; GB/T29490

Model Number:


Contact Us
Request A Quote
Product Details
Stainless Steel/carbon Steel
White, Gray, Black, Blue
Power Rating:
120KVA, 150KVA, 480KVA
Forming Agent:
PEG, Paraffin
Payment & Shipping Terms
Minimum Order Quantity
1 set
USD 93,000-77,000,000
Packaging Details
Special wooden box
Delivery Time
5-8 months
Payment Terms
L/C, T/T
Supply Ability
7 sets / month
Product Description

High Temperature Vacuum Electrical Resistance Furnace With Rapid Cooling


Equipment function:
Automatic leak detection function
Vacuum sintering function
Ar gas partial sintering function(Static , dynamic partial pressure)
Electrified cooling and insulation function
Rapid cooling function(Put a heat exchanger inside)
Fully automatic control function
Safety interlock function
Break point reheating function



Design standards:
The vacuum sintering furnace is a single chamber and double door horizontal and periodic heating structure,which is designed for easy handling and maintenance.The whole process is controlled automatically. It can realize full load continuous operation, 300 furnace times/year or 300 working days/year. It uses graphite element resistance heating (low voltage, high current) . In addition, there are multiple heating units, each of which controls the temperature separately.


Device color matching:
The surface of furnace body, transformer, control cabinet and vacuum pump is light gray (color code: RAL7035). The furnace foot, pump frame and support are matched by sky blue (color code: RAL5015).



Technical Parameters



Available working zone size(W*H*L)

 Max.loading weight 550kg
Maximum working temperature 1600℃
Actual working temperature 1550℃
Pumping speed

The vacuum degree can reach 5Pa within 30min after the pump is started, and the limit vacuum value can reach 1Pa after pumping for 30min after reaching 5Pa

(After drying the furnace, under the empty furnace, clean and cold state.)

Leakage rate


(Measuring the limit vacuum after drying the furnace, stop the operation of the pump group and start the test. Average within 3 hours in empty furnace, clean and cold state)


Cooling speed


Empty furnace,the cooling time of cooling temperature from 1300℃ down to 100℃ just cost less or equal 5 hours.(water temperature≤28℃, 2bar≤water pressure≤3bar)
 Heating rod material Graphite
Heating up speed Empty furnace heating up≤5℃


Heating power


It is about 120KVA (the power configuration of the heating transformer is related to the heating speed, and the heating power can be automatically limited according to the actual use of the production).


Uninterrupted power supply guarantee time


It can power the indicator lights and control the furnace when the power goes out,the time is more than or equal 80 minutes.
