MIM Integrated Sintering Furnace Vacuum Debinding

MIM Integrated Sintering Furnace Vacuum Debinding

  • High Light

    Integrated Sintering Furnace

    ,

    Vacuum Debinding Sintering Furnace

    ,

    Silicon Carbide MIM Sintering Furnace

  • Warranty
    12 Months
  • Applicable Industries
    Manufacturing Plant,industry/auto Parts
  • Loading Capacity
    100kg To 2000kg (adjustable)
  • Usage
    Silicon Carbide Furnace
  • Power Rating
    120KVA, 150KVA, 480KVA
  • Temperature Measurement
    W-Re5/26 Thermocouple
  • Place of Origin
    China
  • Brand Name
    Ruideer
  • Certification
    CE;ISO9001;ISO14001;OHSAS 18001;GB/T29490
  • Model Number
    Vacuum sintering furnace
  • Minimum Order Quantity
    1 set
  • Price
    Negotiable
  • Packaging Details
    Exempted from inspection wooden case
  • Delivery Time
    90--120 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    7 sets/month

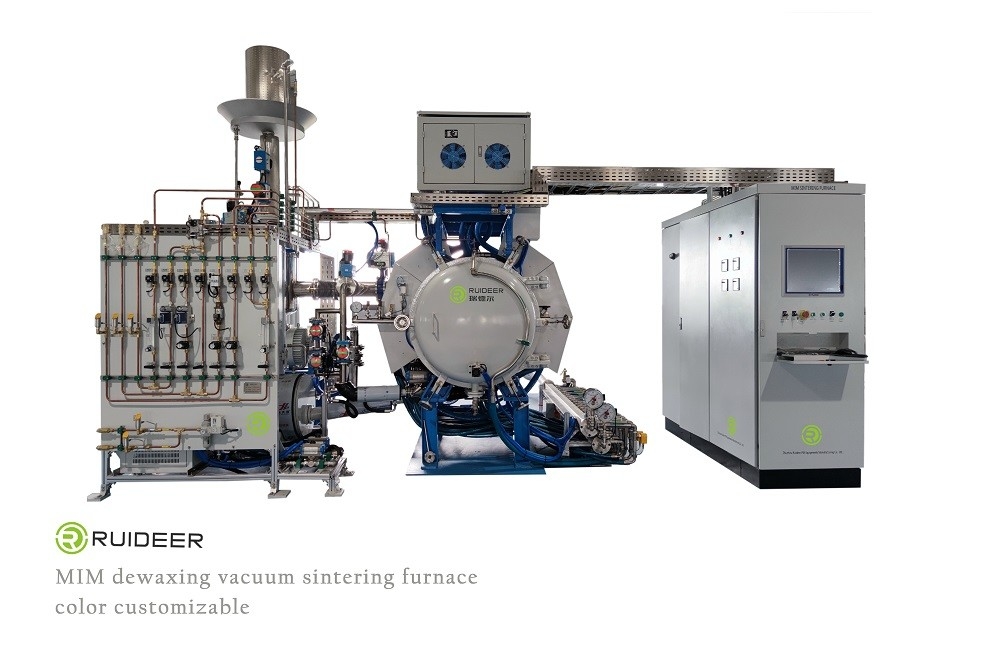

MIM Integrated Sintering Furnace Vacuum Debinding

MIM Vacuum Debinding Integrated Sintering Furnace



Appication:

  • Main application to MIM injection molding stainless steel materials, hard composite materials, ceramic materials, wear-resistant materials, Ar, H2 carrier gas degreasing, vacuum sintering, partial pressure sintering (static, dynamic), vacuum cooling, rapid cooling and other processes.



  • It meets the strict requirement of uniformity of furnace temperature and atmosphere in sintering process of product.



  • The main supporting components (control components, sensors, graphite heating element, thermocouple, main control valve, vacuum pump, etc.) are of international advanced level, can adapt to the long-term, stable, reliable batch production requirements.





Techinical parameters:



Furnace Type RDE-446-0M RDE-448-0M RDE-4412-0M RDE-4415-0M
Usable Space (W*H*L) 400*400*600mm 400*400*800mm 400*400*1200mm 400*400*1500mm
Max.Charge Load 50kg 150kg 300kg 500kg
Power Rating 200KVA 260KVA 300KVA 320KVA
Cooling time ≤3h ≤3h ≤6h ≤6h

Empty furnace, cooling from sintering temperature 1450℃ to 100℃.

(water temperature≤26℃, water pressure 2-3bar)

Max. Working Temp 1580℃
Heating Zone 2 Zones
Temperature Measurement W-Re5/26 Thermocouple
Max Vacuum Degree 1Pa (under cold, empty, dry furnace)
Leakage Rate 3Pa/h (Average value under cold, empty, dry furnace)
Wax Collection ≥98%(Argon gas negative dewaxing, 3-time average value)
Input gas N2, Ar, H2
Functions

Automatic Positive Pressure, Negative Pressure Leak Detection

Ar Negative Pressure Dewaxing/H2 Micro Positive Pressure Dewaxing

Vacuum Sintering

Partial Pressure Sintering (Static, Dynamic)

Rapid Cooling

Fully-automatic control & Safety interlock& Breakpoint continuing heating & Wireless remote control& Self-diagnosis
