Reliable Gas Pressure Sintering Furnace With Customized Systems
-
High Light
Cemented Carbide Gas Pressure Sintering Furnace
,A00 Porosity Gas Pressure Sintering Furnace
,Vacuum Pressure Furnace 120KW
-
UsageHeat Treatment Furnace,Sintering Furnace,Metal Annealing
-
Weight2~20T
-
Warranty1 Year
-
Voltage220V/380V
-
Power(w)120-500KW
-
Max Temperature1800℃ - 2400℃(custom Made)
-
Temperature Uniformity≤±5℃
-
Loading Capacity10~3000kg (adjustable)
-
Place of OriginChina
-
Brand NameRuideer
-
CertificationCE; ISO9001; ISO14001; OHSAS 18001; GB/T29490
-
Model NumberCustomizable
-
Minimum Order Quantity1 set
-
PriceUSD 93,000-77,000,000
-
Packaging DetailsSpecial wooden box
-
Delivery Time5-8 months
-
Payment TermsL/C, T/T
-
Supply Ability7 sets / month
Reliable Gas Pressure Sintering Furnace With Customized Systems
Reliable Gas Pressure Sintering Furnace With Customized Systems
Description
Our gas pressure sintering furnaces are suitable for dewaxing, sintering and pressure sintering processes of stainless steel, iron-based alloy, copper-based alloy, aluminum products, tungsten alloy, magnetic and cemented carbide, etc.

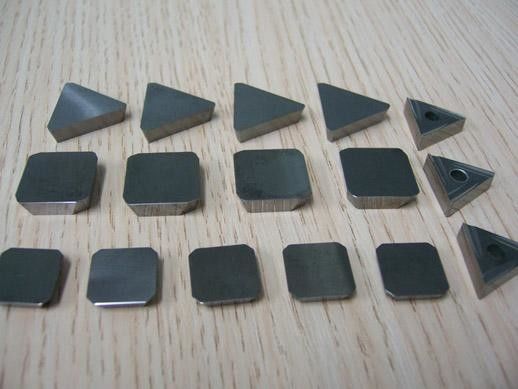

Properties of cemented carbide after sintering:
1. Bending strength: 3000;
2. Porosity: A00-A02;
3. Density: 14.95.
Main Properties
1. Wax-collection rate: 98%.
2. Temperature & atmosphere uniformity:
Coercivity deviation: ≤±0.3KA/M;
Magnetic saturation deviation: ≤±0.2%.
3. Temperature variation: ≤ ±5°C.
Applications:
Cemented Carbide, Precision Ceramic, Stainless steel, Iron-based alloy, Copper-based alloy, Aluminum products
Technical parameters:
| Specifications | RDE-DYL-224 | RDE-DYL-336/339 | RDE-DYL-3535120/4412 | RDE-DYL-5512/RDE-DYL-5518 | RDE-DYL-5527 |
| Effective space(w* h * l)mm | 200*200*400 |
300*300*600/ 300*300*900 |
350*350*1200/ 400*400*1200 |
500*500*1200/ 500*500*1800 |
500*500*2700 |
| Max.Temperature | 1600℃ | 1600℃ | 1600℃ | 1600℃ | 1600℃ |
| Maximum load | 50Kg | 150Kg/200Kg | 300Kg/350Kg | 1200Kg/1500Kg | 2000Kg |
| Vacuum leakage rate:(Average in cold,empty,dry chamber in 3 hours) | 1Pa/h | 2Pa/h | 2Pa/h | 3Pa/h | 3Pa/h |
| Extreme vacuum | 0.8Pa | 0.8Pa | 0.8Pa | 1Pa | 1.5Pa |
| Wax-collection rate(negative pressure dewaxing process.The maximum average value is 3 furnaces) | 98% | 98% | 98% | 98% | 98% |
| Working pressure |
1MPa/2MPa/ 6MPa/10MPa |
1MPa/2MPa/ 6MPa/10MPa |
1MPa/2MPa/ 6MPa/10MPa |
1MPa/2MPa/ 6MPa/10MPa |
1MPa/2MPa/ 6MPa/10MPa |
| Cooling period(Sintering temperature—100℃) | 40min-120min | 40min-150min | 120min-360min | 180min-420min | 180min-480min |
| Temperature control mode | Single zone/2-zone | 2-zone/3-zone | 2-zone/3-zone | 3-zone/4-zone | 4-zone |
| Atmosphere and temperatureuniformity |
Com≤±0.15% Hc≤±0.25KA/M |
Com≤±0.15% Hc≤±0.25KA/M |
Com≤±0.2% Hc≤±0.3KA/M |
Com≤±0.2% Hc≤±0.3KA/M |
Com≤±0.2% Hc≤±0.3KA/M |
| Input gas allowed | Ar,N2,He,H2,CH4,CO2 | ||||
| Functions:Vacuun dewaxing, H2 dewaxing, vacuum heating, heating with gas mixture(Co2 /CH4/H2), heating flowing gas, heating pressure gas, rapid cooling. | |||||
Ruideer Service
Pre-sale Service:
1. Reply your inquiry within 24 working hours.
2. Customized design is available.
On-purchase Service:
1. Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staff.
2. As an honest seller, we always use superior electronic parts and components, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
After-sales Service:
1. The equipment warranty period is 12 months. Equipment failure happens, after-sales service personnel shall give solutions within 48 hours, after receiving the buyer's notification .
2. If needed to the site, the after-sales service personnel should be arrived within 72 hours after the visa is verified.
3. When furnace is delivered to the customer, we will give staff training to customer.
Behind each furnace, it is an overall vision and someone with the expertise to drive it forward: from the initial design phase to complete ready-to-use solutions. This is all about giving customer more control in a product that demands the highest attention to detail, precision and safety.
Our products are sold all over the world, you can rest assured.
