Automatic Intelligent IPC Sinter HIP Furnace PLC Controlled Customized

Automatic Intelligent IPC Sinter HIP Furnace PLC Controlled Customized

  • High Light

    Intelligent IPC Sinter HIP Furnace

    ,

    PLC Control Sinter HIP Furnace

    ,

    Vacuum Pressure Furnace 100bar

  • Warranty
    1 Year
  • Weight
    2T-35T
  • Voltage
    220V/380V
  • Systems
    Control System, Heating System, Positive And Negative Pressure Debinding System, Vacuum System, Pressure Sintering System, Cooling Water System, Rapid Cooling System, Safety System And Auxiliary System.
  • Place of Origin
    China
  • Brand Name
    Ruideer
  • Certification
    CE certificate, GB150, JB4732
  • Model Number
    Customizable
  • Minimum Order Quantity
    1 set
  • Price
    Negotiable
  • Packaging Details
    Special wooden box
  • Delivery Time
    5-8 months
  • Payment Terms
    L/C, T/T
  • Supply Ability
    7 sets / month

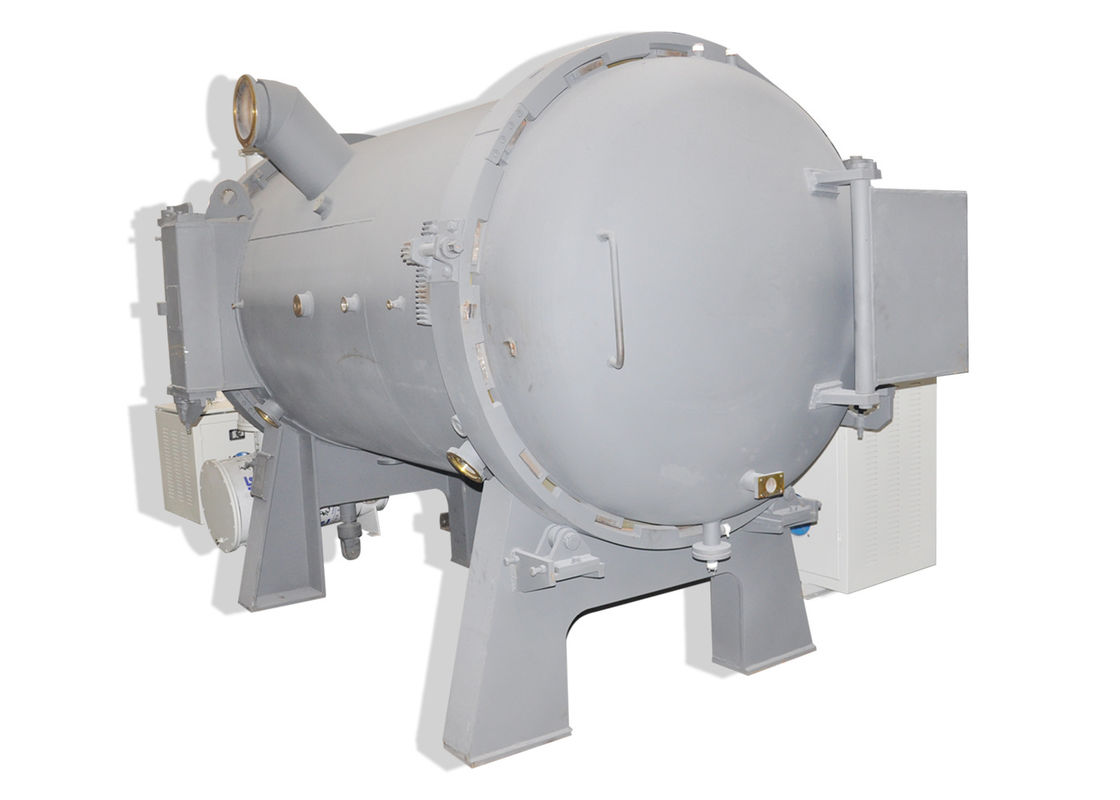

Automatic Intelligent IPC Sinter HIP Furnace PLC Controlled Customized

Automatically Sinter HIP/Intelligent IPC/Advanced Controller/Customized Design

Design Standard:

The carbide pressure sintering furnace is a single-chamber, double-door horizontal, cyclic heating structure designed for easy loading and unloading and maintenance. The whole process is controlled automatically with safety interlock. Full load continuous operation is realized with its maximum ability of 300 furnace times/year or 300 working days/year. Adopting graphite element resistance heating (low voltage, high current) with multiple heating units, each unit of temperature is individually controlled ; The whole process is controlled by computer automation, monitoring, tracking, fault self-diagnosis simulation display and record. The process is controlled by PLC and industrial control machine (IPC) to realize the one-key start-up of the whole process, real-time dynamic monitoring, temperature, pressure, vacuum and other parameters saving and reliable alarm interlock.



Equipment color matching: furnace body, voltage transformer, control cabinet and vacuum pump surface is light gray (color code: RAL7035),. Furnace leg, pump stand and support are sky blue (color code: RAL5015). The wire slot is stainless steel, support galvanized. The transformer placement can adjust according to customer's site condition.



Technical parameters:



Valid working space

400mm×400mm×1200mm

Max design pressure

10-100bar

Pressure time

It takes no more than 25 min to reach 58 bar.

Cooling time (full load)

Cooling time for sintering 1450℃~100℃: 7-8h (water Temperature≤30℃, 55bar≤pressure≤58bar)

Max.loading weight 500kg(The load capacity depends on the product type)
Power rating

About 400KVA (The output power can be limited)

Service life for furnace shell

20 years

Operating times for furnace shell

6000 furnaces

Max. Design Temperature

1600℃(while vacuum sintering)

Max. Working Temperature

1550℃(vacuum and pressuring)

Pumping speed

The vacuum degree can reach 5Pa within 30min after starting the pump. After reaching 5Pa and then pumping for 60min, the ultimate vacuum value reaches 1Pa (within a cold, empty and clean furnace that has been dried before).

Leakage rate

≤3Pa/h (stop the pump group operation and start checking after testing the limit vacuum (within a cold, empty and clean furnace that has been dried before).

Filled with high pressure argon

It adopts intermittent and stable inflation, and the inflation time can be set. The system accurately matches inflation volume and time to ensure the inflation.

Wax yield rate

≥98%(10Kg pure paraffin, argon negative pressure dewaxing. Measured by three times of mean values at most).

UPS guarantee time

It can power the indicator light and control the furnace during power outage for more than 80 minutes.

Max.heating rate

8℃/min (the room temperature rises to 1900℃within a vacuum and empty furnace. 600℃, 1000℃, 1200℃ half-way insulation is allowed).

Hot zone temperature uniformity

In the process of vacuum and pressure sintering, the temperature uniformity of pressure (58bar) is 1450℃: high pressure gas is filled at the maximum allowable speed, and the temperature fluctuation of thermocouple is ≤±5℃.



Sintering Area Atmosphere Uniformity

Degreasing forming agent under positive pressure, negative pressure, sintering uniformity under gas pressure: furnace control piece (YC40 or YG6 particles) and paraffin forming agent are evenly distributed on the graphite boat. The buyer shall provide the furnace control piece and program, and the seller shall confirm.



Alnico: test cobalt magnetic field after dewaxing, deviation range: ≤±0.2%; Coercive force: deviation range: ≤± 0.3kA /M. The uniformity of furnace temperature is the standard of the uniformity of coercive force.
