Single Chamber Molybdenum Strip Metal Sintering Furnace Horizontal

Single Chamber Molybdenum Strip Metal Sintering Furnace Horizontal

  • High Light

    Single Chamber Metal Sintering Furnace

    ,

    Molybdenum Strip Metal Sintering Furnace

    ,

    OHSAS Horizontal Hip Furnace

  • Name
    Molybdenum Strip Sintering Furnace
  • Vacuum Pump
    Backing Pump, Roots Pump
  • Temperature Measurement Mode
    WRe5-26 Thermocouple
  • Max.Temperature
    1600℃
  • Loading Weight
    400Kg-1500Kg
  • Place of Origin
    Zhuzhou, Hunan Province, China
  • Brand Name
    Ruideer
  • Certification
    CE; ISO9001; ISO14001; OHSAS 18001; GB/T29490
  • Model Number
    Customizable
  • Minimum Order Quantity
    1 set
  • Price
    120000.00——320000.00(USD)
  • Packaging Details
    Special wooden case package
  • Delivery Time
    100-120 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    8 sets/month

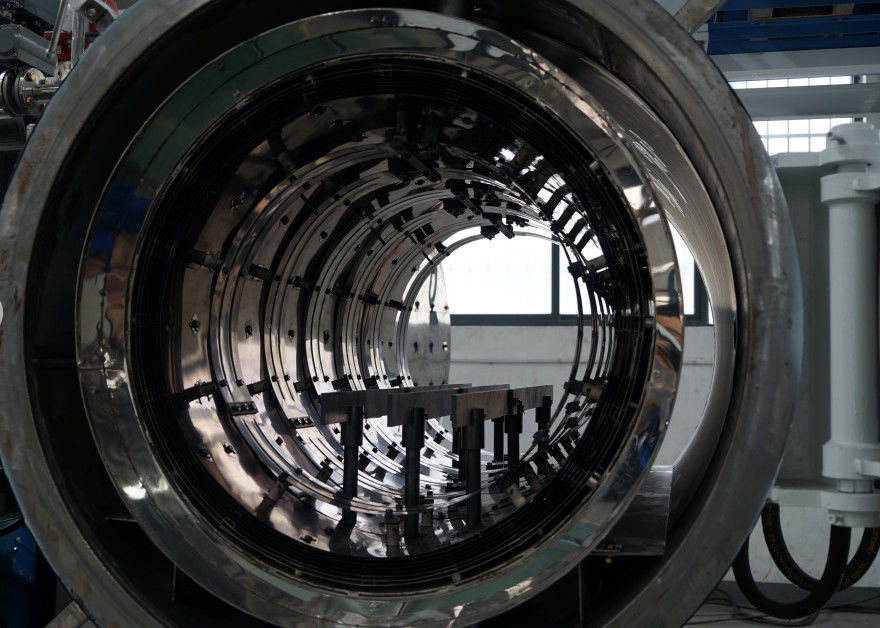

Single Chamber Molybdenum Strip Metal Sintering Furnace Horizontal

Single Chamber Metal Sintering Furnace / Molybdenum Strip Sintering Furnace/horizontal hip furnace


Description:

The metal sintering furnace is a single chamber hip furnace with periodic heating. There are multiple heating units with separate  temperature control. The whole process is automatically controlled, monitored, tracked and displayed and recorded by the computer.


It has control system, heating system, vacuum system, partial pressure sintering system, cooling water system, rapid cooling system, auxiliary system and safety system.



Vacuum pump: backing pump, roots pump(slide valve pump/rotary valve pump/screw pump)

Power supply: Standard type is three-phase five-wire system AC380V±10% 50Hz.
Control power supply: Single-phase  AC210V-250V 50HZ design (Customizable according to local grid standards)

Temperature measurement mode: WRe5-26 thermocouple

Technical parameters:



Specifications

RDE-DYL-4545150 RDE-DYL-5518

Valid space

450*450*1500 500*500*1800

Max.Temperature

1600℃ 1600℃
Maximum loading weight 400Kg 1500Kg

Vacuum leakage rate:

(in cold, empty, dry chamber)

0.8Pa/h 2Pa/h
Extreme vacuum 0.8Pa 1Pa

MAX working pressure

100KPa 100KPa

Cooling period(Sintering temperature—100℃)

420min 480min

Temperature control mode

2-zone/3-zone

3-zone

Heating Element

Tungsten;Molybdenum;Tantalum

Insulating Layer

Molybdenum; Tantalum; Stainless steel

Input gas allowed

Ar, N2, He, H2, CH4, CO2

Functions


vacuum heating, heating with gas mixture(CO2 /CH4/H2), heating flowing gas, rapid cooling.


Applications: high density alloy, tungsten-nickel alloy, tungsten-copper alloy, titanium alloy, carbon atmosphere sensitive metal products.

Competitive Advantage:
1. Compact structure, small occupation area, low energy consumption, rapid cooling and protecting environment.
2. Full range of sizes available. It can be used in experimental research and development. We can design the procucts according to customer’s special requirement.
3. Easy operation: one-button start, mutually redundant, safe and reliable.
4. The control system is automatic with data recording  & back up function. The operation system is user-friendly and powerful.
5. The all-metal heat preservation tube and the heating element are used, and the environment inside the furnace is a carbon-free atmosphere. The heating element and the insulation layer are made of high quality materials and have a long service life.
6. It will continue to heat after power failure, no need to restart the program.
