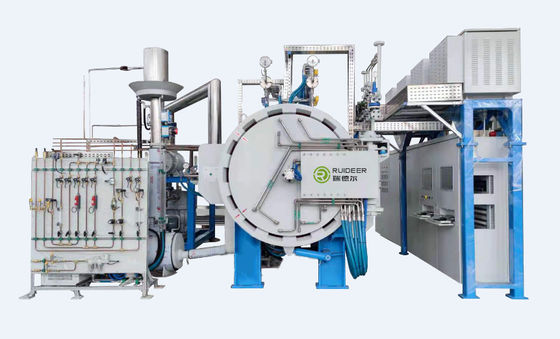

4412 sinter-HIP furnace apply to high-performance cemented carbide materials
Main application
For dewaxing of high-performance cemented carbide material(It can realize vacuum dewaxing,H2 dewaxing,binder can be paraffin or PEG),Vacuum sintering,Low pressure Argon dynamic partial pressure sintering,High pressure Argon sintering,cooling,heat preservation and heating up under high temperature high pressure status.
General structure
This kind of vacuum pressure sintering furnace for cemented carbide r
search, which is single room,horizontal type,recycle heating furnace,it adopt graphite heating element of low voltage and large current .It has many heating zone,each heating zone are individual controlled .All the technical process is automatic controlled,monitored,chased,fault diagnosed which showed and recorded by computer.
This Sinter-HIP furnace include control system,heating system,dewaxing system(vacuum dewaxing and H2 dewaxing),vacuum system,partial pressure sintering,pressure sintering system,cooling water system,rapid cooling system,auxiliary system and safety system etc.It’s graphite box built-in insulation structure,must keep the best temperature and atmosphere uniformity when sinter cemented carbide products.Main parts are all international advanced products,can meet production needs stably and in the long term.At the same time,it must meet energy conservation and environmental requirements.
Technical parameters
Basic technical parameter |
|
Service life |
6000times / 20-years service life |
Useful space |
400 x 400 x 1200mm |
Max. Loading weight
|
≥300kg(According to Sinter products and loading space) |
Max. Designed temp. |
1600℃(Heating temperature) |
Max. Working temp. |
1550℃ |
Max. working pressure |
58bar |
Ultimate vacuum degree |
1pa(After heating,cold,empty,dry condition) |
Pumping speed
|
The vacuum degree up to 5 pa within 30min after starting pump,the vacuum degree can get to 3pa after pumping continually within 30min,(after empty sintering,in empty,clean,cold condition) |
Leakage rate (In average 24h)
|
2pa/h(After testing ultimate vacuum,under empty cold,clean condition,test in average 24h) |
Wax-collection rate
|
≥98% (Ar dewaxing with 10kg wax absolutely, average not more than 3 times ) |
Max. Ramp up rate
|
8℃/min(Room temperature ramp up to 1450℃ in vacuum,empty loaded condition,can be soaked in process when 600℃,1000℃ and 1200℃. ≥5℃/min when Fully loaded |
Pressurized time
|
≤20min Can be set(When Gas source keep around 130bar,pressurized to required pressure) |
Cooling time
|
≤6~7h(From 1480℃ drop to 100℃ when fully-loaded,water temperature≤28℃ ) |
UPS time
|
Supply power to indicator and to control furnace when power-off, Keeping time≥80min |
Temperature uniformity
|
YG8 or YC40 control inserts to test:Magnetic saturation deviation after debinding ≤±0.25%, Coercivity deviation≤±0.3KA/M |
Temperature gradient
|
≤±7℃ (Vacuum sinter to 1450℃,Put ceramic FERRO of grade 334 on flat graphite boards(ceramic FERRO supplied by buyer) ,empty condition,can be soak in process,this test result only as reference) |
Heating power |
280KVA,Suggest user’s inlet wire:≥180mm2 |
Temp.measurement Mode
|
WRe5-26 double-core single thermocouples,mutually redundant,stable and reliable |
Temperature control mode |
3-zone temp. Control |
