Single Chamber Horizontal Periodic Heating Metal Sintering Furnace

Single Chamber Horizontal Periodic Heating Metal Sintering Furnace

Periodic Heating Metal Sintering Furnace

Horizontal Metal Sintering Furnace

Single Chamber Metal Sintering Machine

Place of Origin:


Brand Name:



CE;ISO9001;ISO14001;OHSAS 18001;GB/T29490

Model Number:


Contact Us
Request A Quote
Product Details
Service Life:
20 Years
Operating Times:
300 Times/year
Heating Power:
After Sales:
Engineer Can Be Dispached To Foreign Country To Finish The Installation And Commissioning Work
Warranty Period:
12 Months
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Exempted from inspection wooden case
Delivery Time
100-120 work days
Payment Terms
L/C, T/T
Supply Ability
8 sets/month
Product Description

400*400*1500 Metal vacuum sintering furnace single-chamber, horizontal and periodic heating structure


Equipment brief introduction

    The metal sintering furnace is single-chamber, horizontal and periodic heating structure.It adopt high temperature molybdenum-Lanthanum alloy heating element.In addition, there are multiple heating units, each of which controls the temperature separately. The equipment is used for vacuum and high temperature degassing sintering of high density alloys, tungsten-nickel alloys, tungsten-copper alloys, titanium alloys, magnetic materials, etc.It can also be applied to vacuum heat treatment process of other rare metal materials. The whole process is controlled by automatic and manual dual-mode control, monitoring, tracking, self-diagnosis simulation, display and recording.

    Design standard: two-door horizontal structure, horizontal structure design for easy loading, unloading and maintenance, the whole process of automatic and manual dual-mode control.

    The furnace structure design advanced and reasonable, easy to use operation and maintenance. The main ancillary components has today's international advanced level, which include control element, sensor, high temperature molybdenum-Lanthanum alloy heating element, stainless steel insulation layer, thermocouple, main control valve, vacuum pump and so on. It can adapt to long-term, stable, reliable mass production requirements. Meanwhile,the equipment meets the national requirements of energy conservation and environmental protection.



Used for vacuum annealing treatment of carbon sensitive alloy such as high specific gravity alloy, tungsten nickel alloy, tungsten copper alloy, titanium alloy, magnetic material, etc.


Technical parameters of equipment

Effective working zone size(W*H*L)


Max.loading capacity

500kg(it depends on the type of product)


Working temperature

1600℃(The maximum design temperature)

1420℃(filling hydrogen working temperature)

1550℃(The actual working temperature)

Pumping speed

The vacuum degree can reach 5Pa within 30min after the pump is started, and the limit vacuum value can reach 1Pa after pumping for 30min after reaching 5Pa

(After drying the furnace,under the empty furnace, clean and cold state)

 Leakage rate


(Measuring the limit vacuum after drying the furnace, stop the operation of the pump group and start the test.Average within 3 hours in empty furnace, clean and cold state)


Cooling speed

The furnace is empty.From 1450℃ cooling to 100℃ will cost less than and equal to 3 hours.(Water temperature≤28℃,2bar≤Water pressure≤3bar)


Cooling mode

The inner furnace is equipped with rapid cooling fan and water cooling will cooling with the furnace.

Heating element material


Heating zone quantity

2 zone or 3 zone control temperature independently

Temperature control mode

PID adjustment

Heating power

About 220KVA

Wax collection rate


≥98%(10kg paraffin refined wax ,Ar negative pressure debinding ,three averages at most


Uninterrupted power supply guarantee time


It can power the indicator lights and control the furnace when the power goes out,the time is more than or equal 80 minutes.

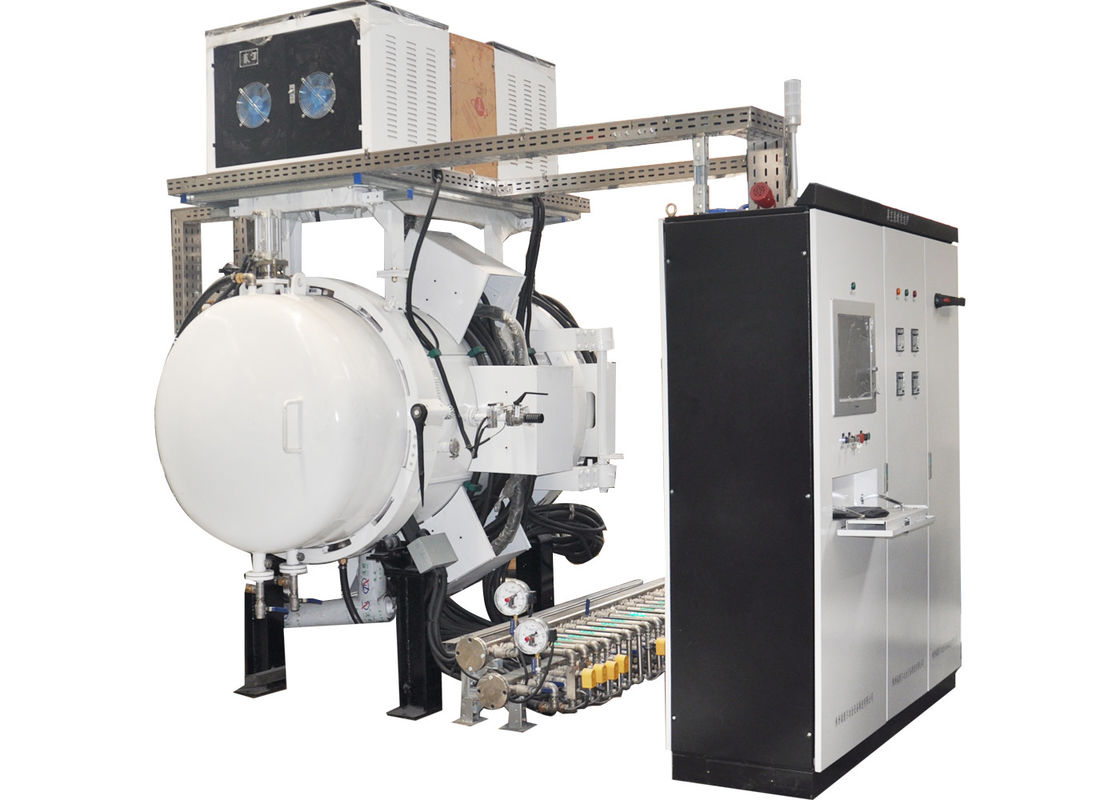

Single Chamber Horizontal Periodic Heating Metal Sintering Furnace 0


After sales:

1. Installation, Commissioning and Acceptance

We do installation, commissioning and acceptance in buyer's plant.During the installation and commissioning period, the commissioning personnel shall be provided free of charge by the demander according to the staff standard.

The equipment shipped to the buyer, the seller received the buyer's notification, both within a week to carry the equipment out of the box together, then check the equipment and all components according to the packing list . Including equipment accessories, spare parts and special tools, attached manual and technical documents, etc. It can be installed after the acceptance check of equipment.
After installation and debugging, the equipment shall be accepted according to the technical accessories.


2. Training

When taking-over the Furnace to the customer, We will give a staff training to customer. The operating personnel of the customer should join to commission,test the furnace, when installing at customer’s company.
This is practical operation training and practical maintenance training,and our technical personnel will telling the basic principle,equipment maintenance knowledge,And the common fault handling measures.We can training 2 ~ 3 workers. ( Training how to maintenance and operating.)


3. Warranty period

The warranty period of the equipment is 12 months, which starts from the date of installation and debugging of the supplier. Equipment failure happens, after-sales service personnel shall give solutions within 2 hours, after receiving the buyer's notification . If it is need to go to the site for treatment , operators dispatched by seller should arrive at the site within 48 hours after go aboard. In case of emergency,operators should arrive at the site within 48 hours after go aboard, and continue to make repairs until the fault is removed and the equipment returns to normal.
