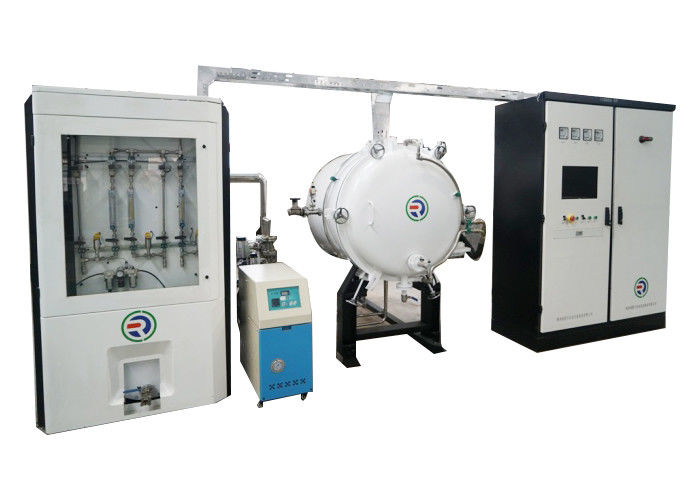

300*300*600 vacuum sintering furnace can be applied for vacuum sintering, vacuum cooling of alloys
It mainly includes control system, heating system, positive and negative pressure,vacuum system, pressure sintering system, cooling water system, rapid cooling system, safety system and auxiliary system.
The vacuum sintering furnace is a single chamber and double door horizontal and periodic heating structure,which is designed for easy handling and maintenance, the whole process is controlled automatically.It can realize full load continuous operation, 300 furnace times/year or 300 working days/year.It uses graphite element resistance heating (low voltage, high current) .In addition, there are multiple heating units, each of which controls the temperature separately.It equipped with fully automatic control function and safety interlock function.The whole process is automatically controlled, monitored, tracked and recorded by computer.The PLC, industrial computer (PC) control to realize the whole process of one-key start, real-time dynamic monitoring, computer will save temperature, pressure, vacuum and other parameters ,alarm interlocking is safe and reliable.
Device color matching:
The surface of furnace body, transformer, control cabinet and vacuum pump is light gray (color code: RAL7035). The furnace foot, pump frame and support are matched by sky blue (color code: RAL5015).The groove is stainless steel, the support is galvanized, the transformer is placed on the ground.
General equipment requirements:
It is mainly used for vacuum sintering, partial pressure sintering (static, dynamic), vacuum cooling, rapid cooling and other processes of hard alloy, ceramic material, wear-resistant material and high temperature alloy.It can meet the strict requirements for the uniformity of furnace temperature and atmosphere in the sintering process, and the furnace body structure design is advanced and reasonable, which is convenient for operation and maintenance.The main supporting components (control components, sensors, graphite heating element, thermocouple, main control valve, vacuum pump, etc.) have the international advanced level, can adapt to the long-term, stable, reliable mass production requirements.At the same time, the equipment meets the national requirements of energy conservation and environmental protection.
Technical parameters of equipment
Available working zone size(W*H*L)
|100kg(The amount of load depends on the type of product)
850℃(maximum working temperature)
800℃(actual working temperature )
The vacuum degree can reach 5Pa within 30min after the pump is started, and the limit vacuum value can reach 1Pa after pumping for 30min after reaching 5Pa
(After drying the furnace,under the empty furnace, clean and cold state.)
(Measuring the limit vacuum after drying the furnace, stop the operation of the pump group and start the test.Average within 3 hours in empty furnace, clean and cold state)
Empty furnace,the cooling time of cooling temperature from 1300℃ down to 100℃ just cost less or equal 5 hours.(water temperature≤28℃,2bar≤water pressure≤3bar)
The inner furnace is equipped with rapid cooling fan and cooling water realize rapid cooling.
Heat rod material
Temperature control mode
Three zone temperature control independently
Heating up speed
Empty furnace heating up≤5℃
It is about 120KVA (the power configuration of the heating transformer is related to the heating speed, and the heating power can be automatically limited according to the actual use of the production).
Uninterrupted power supply guarantee time
It can power the indicator lights and control the furnace when the power goes out,the time is more than or equal 80 minutes.
1. Installation, Commissioning And Acceptance
We do installation, commissioning and acceptance in buyer's plant.During the installation and commissioning period, the commissioning personnel shall be provided free of charge by the demander according to the staff standard.
The equipment shipped to the buyer, the seller received the buyer's notification, both within a week to carry the equipment out of the box together, then check the equipment and all components according to the packing list . Including equipment accessories, spare parts and special tools, attached manual and technical documents, etc. It can be installed after the acceptance check of equipment.
After installation and debugging, the equipment shall be accepted according to the technical accessories.
When taking-over the Furnace to the customer, We will give a staff training to customer. The operating personnel of the customer should join to commission,test the furnace, when installing at customer’s company.
This is practical operation training and practical maintenance training,and our technical personnel will telling the basic principle,equipment maintenance knowledge,And the common fault handling measures.We can training 2 ~ 3 workers. ( Training how to maintenance and operating.)
3. Warranty period
The warranty period of the equipment is 12 months, which starts from the date of installation and debugging of the supplier. Equipment failure happens, after-sales service personnel shall give solutions within 2 hours, after receiving the buyer's notification . If it is need to go to the site for treatment , operators dispatched by seller should arrive at the site within 48 hours after go aboard. In case of emergency,operators should arrive at the site within 48 hours after go aboard, and continue to make repairs until the fault is removed and the equipment returns to normal.
