300*300*900 Metal vacuum sintering furnace single-chamber, horizontal and periodic heating structure
Equipment positioning
Used for vacuum annealing treatment of carbon sensitive alloy such as high specific gravity alloy, tungsten nickel alloy, tungsten copper alloy, titanium alloy, magnetic material, etc.
Equipment composition

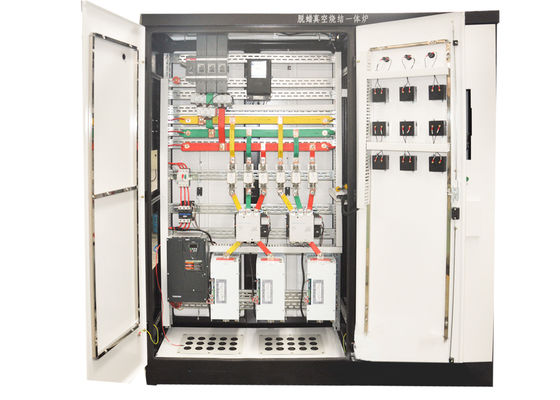

It is mainly composed of furnace body (shell, door, door clamping mechanism, furnace door supporting hinge, heating body, heat insulation screen, charging platform, etc.), vacuum system, water cooling system, pneumatic system, rapid cooling system, charging and discharging system, PLC program control, electrical control cabinet, etc.
PLC, industrial control computer (PC) control to achieve the whole process of one-click start, real-time dynamic monitoring.The computer saves temperature, pressure, vacuum and other parameters.It also has safe and reliable alarm interlock.
Technical parameters
|
1
|
Design operate time
|
300 furnace/year
|
|
2
|
Effective workspace size(W*H*L)
|
300mm×300mm×900 mm |
|
3
|
Max.loading weight
|
100kg(it depends on the type of product)
|
|
4
|
Max.design temperature
|
1600℃ |
|
5
|
Max.working temperature
|
1550℃ |
|
6
|
Ultimate vacuum degree
|
The vacuum degree can reach 5Pa within 30min after the pump is started, and the limit vacuum value can reach 1Pa after pumping for 30min after reaching 5Pa
(After drying the furnace,under the empty furnace, clean and cold state)
|
|
7
|
Leakage rate
|
≤3Pa/h
(Average within 3 hours in empty furnace, clean and cold state)
|
|
8
|
Heating up speed
|
≤5℃/min(Under the empty load condition)
|
|
9
|
Cooling gas
|
Argon, nitrogen, hydrogen (add three-way valve at the air source position, can be arbitrarily switched).
|
|
10
|
Rapid cooling time
|
≤7h(1600℃-100℃,full furnace,cooling water temperature≤28℃).
|
After sales:
1.Installation, Commissioning And Acceptance
We do installation, commissioning and acceptance in buyer's plant.During the installation and commissioning period, the commissioning personnel shall be provided free of charge by the demander according to the staff standard.
The equipment shipped to the buyer, the seller received the buyer's notification, both within a week to carry the equipment out of the box together, then check the equipment and all components according to the packing list . Including equipment accessories, spare parts and special tools, attached manual and technical documents, etc. It can be installed after the acceptance check of equipment.
After installation and debugging, the equipment shall be accepted according to the technical accessories.
2.Training
When taking-over the Furnace to the customer, We will give a staff training to customer. The operating personnel of the customer should join to commission,test the furnace, when installing at customer’s company.
This is practical operation training and practical maintenance training,and our technical personnel will telling the basic principle,equipment maintenance knowledge,And the common fault handling measures.We can training 2 ~ 3 workers. ( Training how to maintenance and operating.)
3. Warranty period
The warranty period of the equipment is 12 months, which starts from the date of installation and debugging of the supplier. Equipment failure happens, after-sales service personnel shall give solutions within 2 hours, after receiving the buyer's notification . If it is need to go to the site for treatment , operators dispatched by seller should arrive at the site within 48 hours after go aboard. In case of emergency,operators should arrive at the site within 48 hours after go aboard, and continue to make repairs until the fault is removed and the equipment returns to normal.
