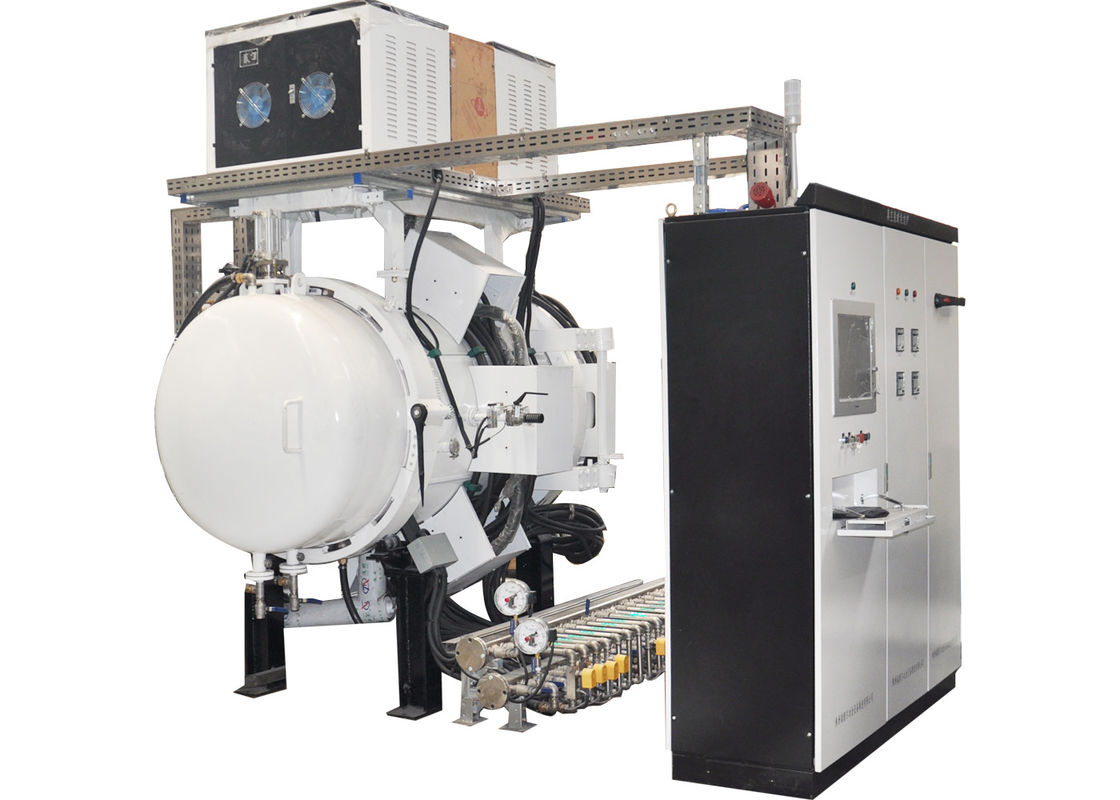

5518 debinding vacuum sintering integrated furnace for vacuum sintering and rapid cooling of stainless steel
Brief introduction of 5518 debinding vacuum sintering integrated furnace
The debinding vacuum sintering integrated furnace is a single chamber double door horizontal and periodic heating structure.The design is easy to load and unload and maintain, and the whole process is controlled automatically.Realize full load continuous operation, 300 furnace times/year or 300 working days/year.Graphite element resistance heating (low voltage, large current);With a plurality of heating units, each unit is independently controlled temperature;Automatic control function, safety interlock function, the whole process by computer automatic control, monitoring, tracking, fault self-diagnosis simulation display and record.PLC, industrial computer (PC) control to realize the whole process of a key start, real-time dynamic monitoring, computer to temperature, pressure, vacuum degree and other parameters, safe and reliable alarm interlock.
|Effective working zone(W*H*L)||500mm×500mm×1800mm|
|Design maximum temperature||1600℃|
|Actual working temperature||1550℃|
The vacuum degree can up to 5Pa within 30 minutes after power on the pump.
|Cooling speed||≤7h(full loading,From 1450℃ cooling down to100℃ water temperature≤28℃,2bar≤water pressure≤3bar)|
|Cooling mode||equipped with fan|
|Heating power||400 KVA|
|Maximum heating up speed||8℃/min|
|Wax yield rate||≥98%|
1.Installation, Commissioning And Acceptance
We do installation, commissioning and acceptance in buyer's plant.During the installation and commissioning period, the commissioning personnel shall be provided free of charge by the demander according to the staff standard.
The equipment shipped to the buyer, the seller received the buyer's notification, both within a week to carry the equipment out of the box together, then check the equipment and all components according to the packing list . Including equipment accessories, spare parts and special tools, attached manual and technical documents, etc. It can be installed after the acceptance check of equipment.
After installation and debugging, the equipment shall be accepted according to the technical accessories.
When taking-over the Furnace to the customer, We will give a staff training to customer. The operating personnel of the customer should join to commission,test the furnace, when installing at customer’s company.
This is practical operation training and practical maintenance training,and our technical personnel will telling the basic principle,equipment maintenance knowledge,And the common fault handling measures.We can training 2 ~ 3 workers. ( Training how to maintenance and operating.)
3. Warranty period
The warranty period of the equipment is 12 months, which starts from the date of installation and debugging of the supplier. Equipment failure happens, after-sales service personnel shall give solutions within 2 hours, after receiving the buyer's notification . If it is need to go to the site for treatment , operators dispatched by seller should arrive at the site within 48 hours after go aboard. In case of emergency,operators should arrive at the site within 48 hours after go aboard, and continue to make repairs until the fault is removed and the equipment returns to normal.
