Metal Injection Moulding Integrated Debinding Sintering Furnace For SS

Metal Injection Moulding Integrated Debinding Sintering Furnace For SS

  • High Light

    Integrated Debinding Sintering Furnace

    ,

    Metal Injection Moulding Sintering Furnace

    ,

    SS MIM Sintering Furnace

  • Type
    Powder Injection,sintering Furnace
  • Usage
    Sintering Furnace
  • Warranty
    12 Months
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Weight
    10T
  • Applicable Industries
    Manufacturing Plant,industry/auto Parts
  • Place of Origin
    China
  • Brand Name
    Ruideer
  • Certification
    CE;ISO9001;ISO14001;OHSAS 18001;GB/T29490
  • Model Number
    400*400*1000
  • Minimum Order Quantity
    1 set
  • Price
    Negotiable
  • Packaging Details
    Exempted from inspection wooden case
  • Delivery Time
    100-120 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    6 sets/month

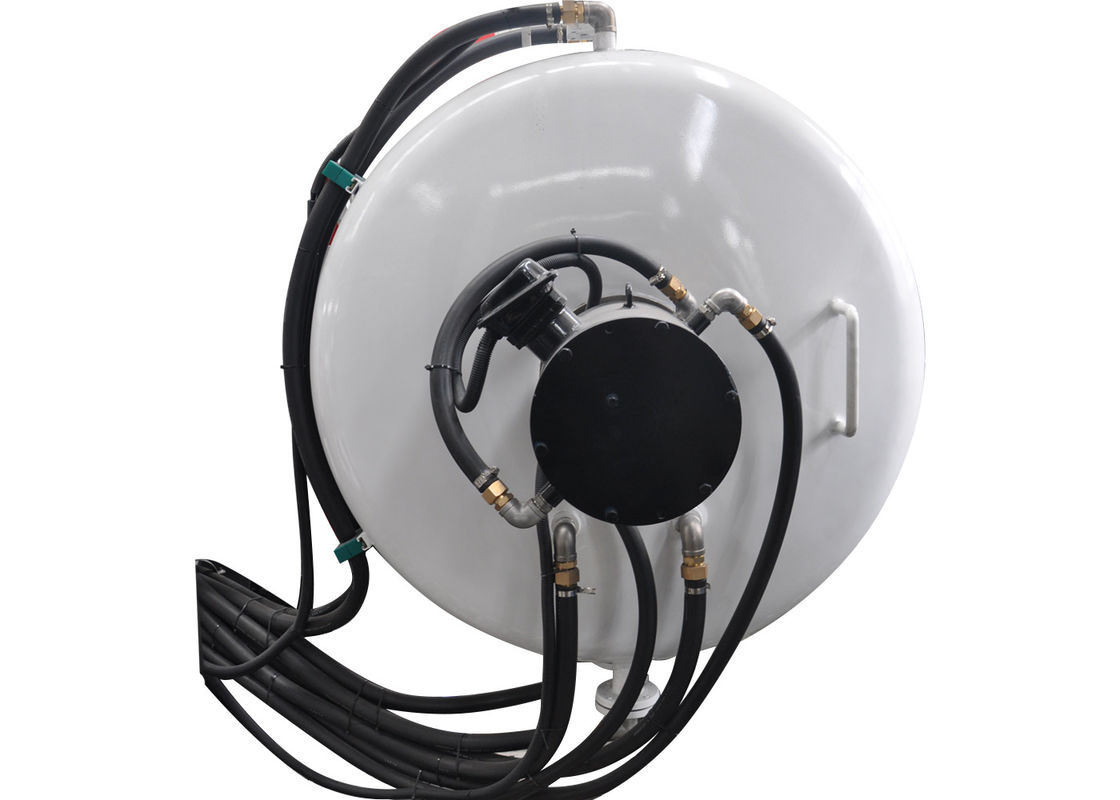

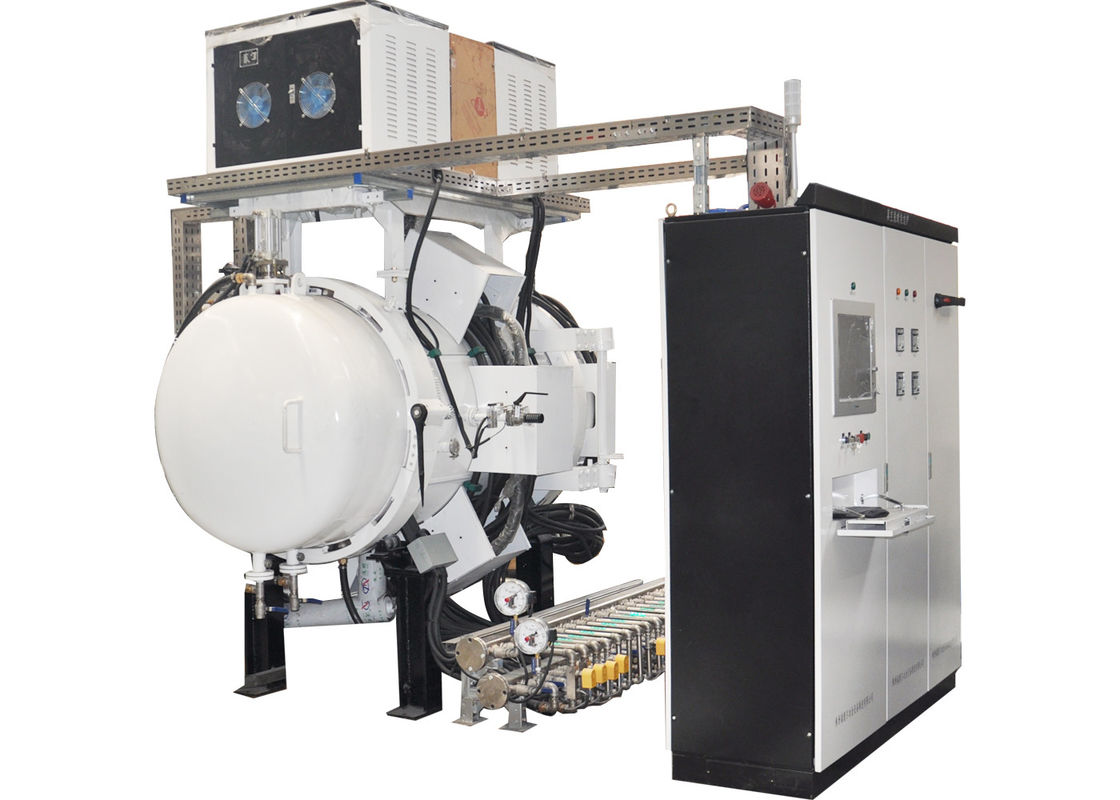

Metal Injection Moulding Integrated Debinding Sintering Furnace For SS

Metal injection moulding integrated debinding & sintering furnace for stainless steel material and so on



MIM profile:

Metal powder injection molding (MIM) is a new and high technology combining traditional POWDER metallurgy technology with plastic INJECTION molding technology.The powder and adhesive are uniformly mixed into a rheological feeding material, which is injected into the injection machine, and the blank obtained is densified and sintered into a finished product.
Metal powder injection molding (MMI) combines the advantages of powder metallurgy and plastic injection molding (PLASTIC injection molding), which breaks through the limitation of traditional metal powder molding process in product shape. Meanwhile, plastic injection molding (PLASTIC injection molding) technology can be used to produce parts with complex shapes in large quantities and with high efficiency.



Equipment function:
Automatic leak detection function
Vacuum sintering function
Ar gas partial sintering function(Static , dynamic partial pressure)
Electrified cooling and insulation function
Rapid cooling function(Put a heat exchanger inside)
Fully automatic control function
Safety interlock function
Break point reheating function
Break point reheating function



Technical Parameters:



Available working zone size(W*H*L)



400mm×400mm×1000mm
Max.loading weight 300kg
Working temperature 1600℃(maximum working temperature)
1550℃(actual working temperature )
Pumping speed

The vacuum degree can reach 5Pa within 30min after the pump is started, and the limit vacuum value can reach 1Pa after pumping for 30min after reaching 5Pa

(After drying the furnace,under the empty furnace, clean and cold state.)

Leakage rate ≤3Pa/h



Cooling speed



Empty furnace,the cooling time of cooling temperature from 1300℃ down to 100℃ just cost less or equal 5 hours.(water temperature≤28℃,2bar≤water pressure≤3bar)



Cooling speed

The inner furnace is equipped with rapid cooling fan and cooling water realize rapid cooling.
Heat rod material Graphite



Heating up speed

Empty furnace heating up≤5℃

Uninterrupted power supply guarantee time



It can power the indicator lights and control the furnace when the power goes out,the time is more than or equal 80 minutes.



Metal Injection Moulding Integrated Debinding Sintering Furnace For SS 0





After sales:

1.Installation, Commissioning And Acceptance

We do installation, commissioning and acceptance in buyer's plant.During the installation and commissioning period, the commissioning personnel shall be provided free of charge by the demander according to the staff standard.

The equipment shipped to the buyer, the seller received the buyer's notification, both within a week to carry the equipment out of the box together, then check the equipment and all components according to the packing list . Including equipment accessories, spare parts and special tools, attached manual and technical documents, etc. It can be installed after the acceptance check of equipment.
After installation and debugging, the equipment shall be accepted according to the technical accessories.



2.Training

When taking-over the Furnace to the customer, We will give a staff training to customer. The operating personnel of the customer should join to commission,test the furnace, when installing at customer’s company.
This is practical operation training and practical maintenance training,and our technical personnel will telling the basic principle,equipment maintenance knowledge,And the common fault handling measures.We can training 2 ~ 3 workers. ( Training how to maintenance and operating.)



3. Warranty period

The warranty period of the equipment is 12 months, which starts from the date of installation and debugging of the supplier. Equipment failure happens, after-sales service personnel shall give solutions within 2 hours, after receiving the buyer's notification . If it is need to go to the site for treatment,operators dispatched by seller should arrive at the site within 48 hours after go aboard. In case of emergency,operators should arrive at the site within 48 hours after go aboard, and continue to make repairs until the fault is removed and the equipment returns to normal.





Note:

We are a professional manufacturer of powder metallurgy sintering furnaces. Custom design is available according to customer’s requirements. Please offer us the sintered material, size of sintered piece, max. temperature, heating zone dimensions, vacuum level and other special requirements when making inquiries. We will offer professional proposal and solutions based on your requirements.



Quality assurance and service:
1. Our company guarantees that all materials and purchased components meet the national technical quality standards.
2. Within one year from the date of acceptance of the equipment, if there is any quality problem caused by the design or manufacture of the equipment, our company will carry out free maintenance and bear the maintenance cost.If the equipment exceeds the warranty period or is damaged due to human error or force majeure (such as natural disaster), our company will actively provide high-quality paid service.
