320KVA Siemens PLC Control High Temperature Vacuum Furnace

320KVA Siemens PLC Control High Temperature Vacuum Furnace

  • High Light

    320KVA High Temperature Vacuum Furnace

    ,

    OHSAS 18001 High Temperature Vacuum Furnace

    ,

    Siemens PLC Control Vacuum Furnaces

  • Structure
    Single Chamber,horizental Type
  • Dimension
    Customized
  • Painting
    Black,white,gray,blue,green
  • Power
    320KVA
  • Warranty
    1 Year
  • After Sales
    Engineer Can Be Dispached To Foreign Country To Finish The Installation And Commissioning Work
  • Place of Origin
    China
  • Brand Name
    Ruideer
  • Certification
    CE;ISO9001;ISO14001;OHSAS 18001;GB/T29490
  • Model Number
    300*300*1200
  • Minimum Order Quantity
    1 set
  • Price
    Negotiable
  • Packaging Details
    Exempted from inspection wooden case
  • Delivery Time
    100-120 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    7 sets/month

320KVA Siemens PLC Control High Temperature Vacuum Furnace

High temperature vacuum furnace(Maximum temperature can up to 2100℃,it can meet different sintering requirements)





Basic device configuration
1.the entire device is controlled by industrial computer and LCD, with the functions of on-site alarm and real-time monitoring, and real-time display of the current working status of the device, and the system has the function of negative pressure leak detection.

2.the temperature control of the equipment adopts Siemens PLC to control the temperature, more than 20 temperature control curves can be compiled, with PID parameters that can be selected in the program, in order to adapt to the requirements of different temperature segments, so as to ensure smooth heating curve and good temperature follow
3.different control event signals can be set in the program according to the need for different control operations, which greatly improves the reliability of the equipment and reduces the labor intensity of the workers.
4.control system: PLC and industrial control computer (PC) realize the setting of equipment parameters and process parameters, the preparation of sintering process procedures, alarm display, fault self-diagnosis on-site dynamic display of each process process, the main process parameters recorded by the computer for up to one year;Implement a variety of safety interlocks.
5. under the authorization of the user, if the equipment fails, the technical staff can conduct remote diagnosis of the equipment;
6. water system: closed circulation of cold water, water flow switch to realize water shortage alarm, safe and reliable;





Technical Parameters



Design run times 300furnace/year
Valid working zone size 300mm (W)× 300mm (H)× 1200mm (L)
Max.capacity 300Kg(including boat)
Max.working temperature 1650℃
Design temperature 1700℃



Ultimate vacuum degree



1pa(In the empty furnace, clean, cold state, after opening the vacuum pump for 60 minutes)
Pumping speed ≤25min(Reach 20Pa in cold, no-load and atmospheric conditions
Leakage rate ≤3pa/h(In the empty furnace, clean, cold state, within 3 hours)
Wax collection yield rate) ≥98% (Argon negative pressure dewaxing 5Kg pure paraffin, up to three times the aver
Max.heating up speed: 450℃~1150℃,6~7℃/min(Full furnace alloy)
Rapid cooling time ≤3h
Temperature control mode 3 zone temperature control

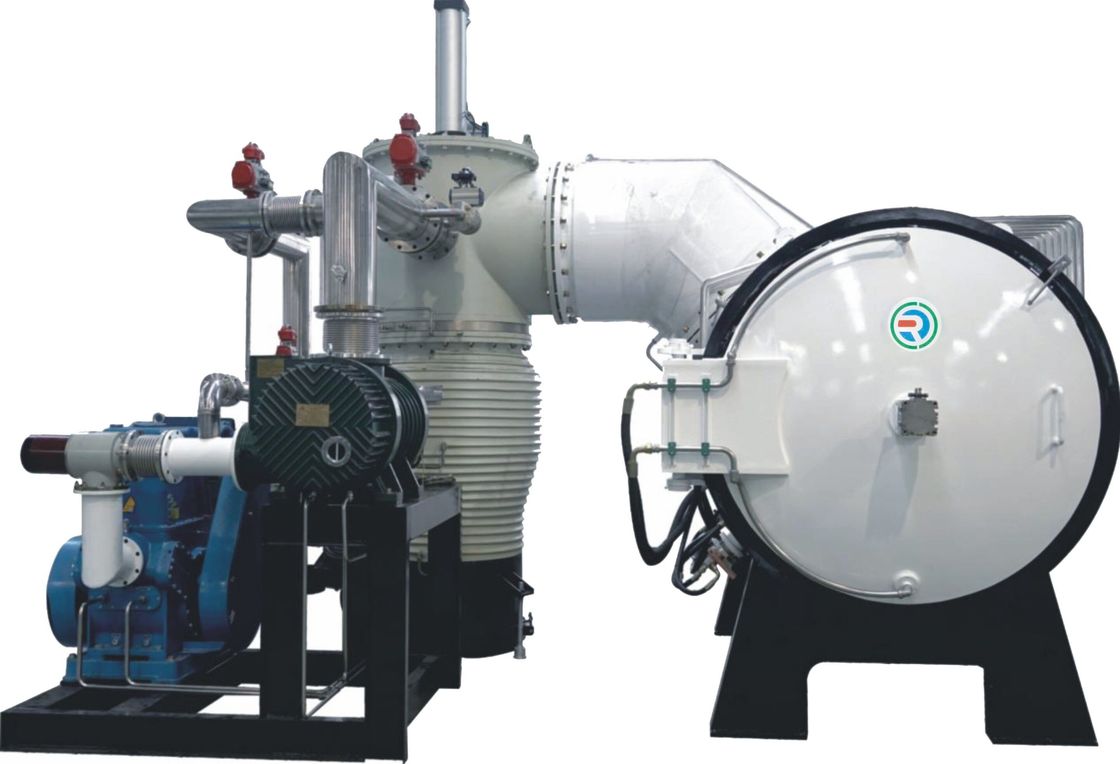

320KVA Siemens PLC Control High Temperature Vacuum Furnace 0





After sales:

1.Installation, Commissioning And Acceptance

We do installation, commissioning and acceptance in buyer's plant.During the installation and commissioning period, the commissioning personnel shall be provided free of charge by the demander according to the staff standard.

The equipment shipped to the buyer, the seller received the buyer's notification, both within a week to carry the equipment out of the box together, then check the equipment and all components according to the packing list . Including equipment accessories, spare parts and special tools, attached manual and technical documents, etc. It can be installed after the acceptance check of equipment.
After installation and debugging, the equipment shall be accepted according to the technical accessories.



2.Training

When taking-over the Furnace to the customer, We will give a staff training to customer. The operating personnel of the customer should join to commission,test the furnace, when installing at customer’s company.
This is practical operation training and practical maintenance training,
and our technical personnel will telling the basic principle,equipment maintenance knowledge,And the common fault handling measures.We can training 2 ~ 3 workers. ( Training how to maintenance and operating.)



3. Warranty period

The warranty period of the equipment is 12 months, which starts from the date of installation and debugging of the supplier. Equipment failure happens, after-sales service personnel shall give solutions within 2 hours, after receiving the buyer's notification . If it is need to go to the site for treatment , operators dispatched by seller should arrive at the site within 48 hours after go aboard. In case of emergency,operators should arrive at the site within 48 hours after go aboard, and continue to make repairs until the fault is removed and the equipment returns to normal.





Note:

We are a professional manufacturer of powder metallurgy sintering furnaces. Custom design is available according to customer’s requirements. Please offer us the sintered material, size of sintered piece, max. temperature, heating zone dimensions, vacuum level and other special requirements when making inquiries. We will offer professional proposal and solutions based on your requirements.



Quality assurance and service:
1. Our company guarantees that all materials and purchased components meet the national technical quality standards.
2. Within one year from the date of acceptance of the equipment, if there is any quality problem caused by the design or manufacture of the equipment, our company will carry out free maintenance and bear the maintenance cost.If the equipment exceeds the warranty period or is damaged due to human error or force majeure (such as natural disaster), our company will actively provide high-quality paid service.
