Place of Origin:
China
Brand Name:
Ruideer
Certification:
ISO9001 Quality System
Model Number:
User-defined

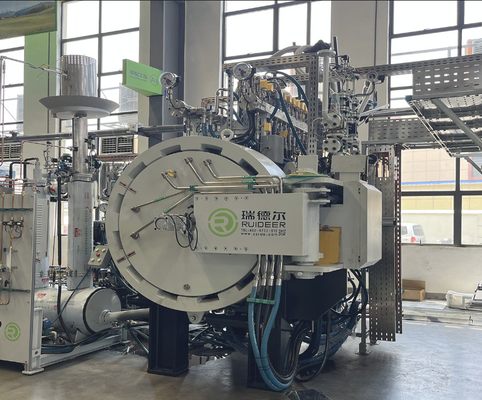

Fullly-loaded Continuous Operation Vacuum Heat Treatment Furnace
Description:
The heat treatment sintering furnace has got a single chamber and double door horizontal and periodic heating structure,which is designed for easy handling and maintenance, the whole process is controlled automatically.It can realize full load continuous operation, 300 furnace times/year or 300 working days/year.It uses graphite element resistance heating (low voltage, high current).In addition, there are multiple heating units, each of which controls the temperature separately.
Working environment
Humidity and temperature requirement
1.Environment humidity: ＜90%(at 35℃)
2.Environment temperature: -10℃～+40℃
3.Power supply
4.Motive power supply: 380V±10%,50Hz,3 phase 5 wire system
5.Control power supply: 210V～250V,50Hz,Single-phase
Main technical parameters:
|
Service life of furnace shell |
20 years |
|
Furnace shell working time |
about 6000 furnaces |
|
Effective working zone size(W*H*L) |
500mm×500mm×1800mm |
|
Max loading capacity |
(it depends on the type of product) |
|
Working temperature |
1800℃(The maximum design temperature) |
| 1750℃(The actual working temperature) | |
|
Pumping speed |
The vacuum degree can reach 5Pa within 30min after the pump is started, and the limit vacuum value can reach 1Pa after pumping for 30min after reaching 5Pa (After drying the furnace,under the empty furnace, clean and cold state) |
|
Leakage rate |
≤3Pa/h (Measuring the limit vacuum after drying the furnace, stop the operation of the pump group and start the test.Average within 3 hours in empty furnace, clean and cold state) |
|
Cooling speed(empty) |
From 1450℃ cooling to 100℃ : ≤ 6 h (Water temperature≤28℃,2bar≤Water pressure≤3bar)
|
Note:
We are a professional manufacturer of powder metallurgy sintering furnaces. Custom design is available. Please offer us the sintered material, size of sintered piece, max. temperature, heating zone dimensions, vacuum level and other special requirements when making inquiries. We will offer professional proposal and solutions based on your requirements.
