Customized Vacuum Heat Treatment Furnace Customized Size And Configuration

Customized Vacuum Heat Treatment Furnace Customized Size And Configuration

  • High Light

    heat treatment furnaces

    ,

    heat treat furnace

  • Size
    Customized Size
  • Structure
    Single Chamber,horizental Type
  • Dimension
    300*300*1000
  • Painting
    Black,white,gray,blue,green
  • Warranty
    1 Year
  • After Sales
    Engineer Can Be Dispached To Foreign Country To Finish The Installation And Commissioning Work
  • Place of Origin
    China
  • Brand Name
    Ruideer
  • Certification
    CE;ISO9001;ISO14001;OHSAS 18001;GB/T29490
  • Model Number
    300*300*1000
  • Minimum Order Quantity
    1 set
  • Price
    Negotiable
  • Packaging Details
    Exempted from inspection wooden case
  • Delivery Time
    100-120 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    7 sets/month

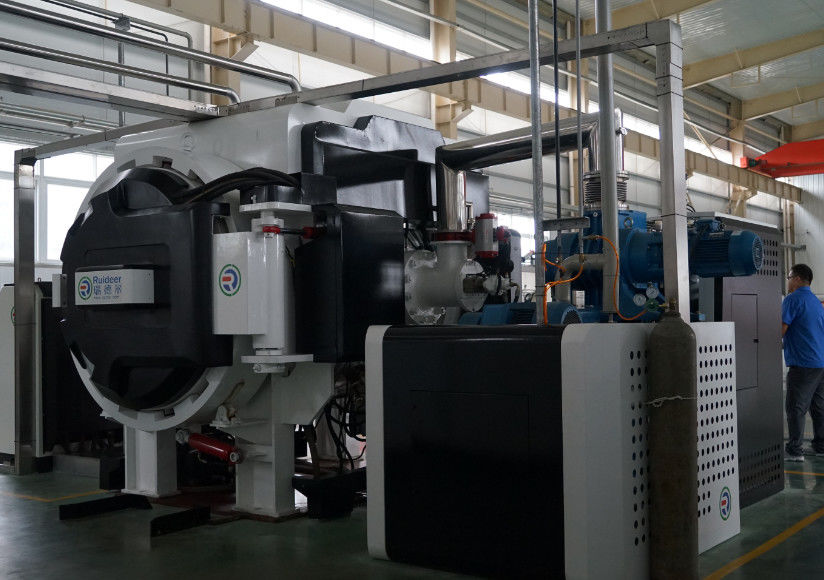

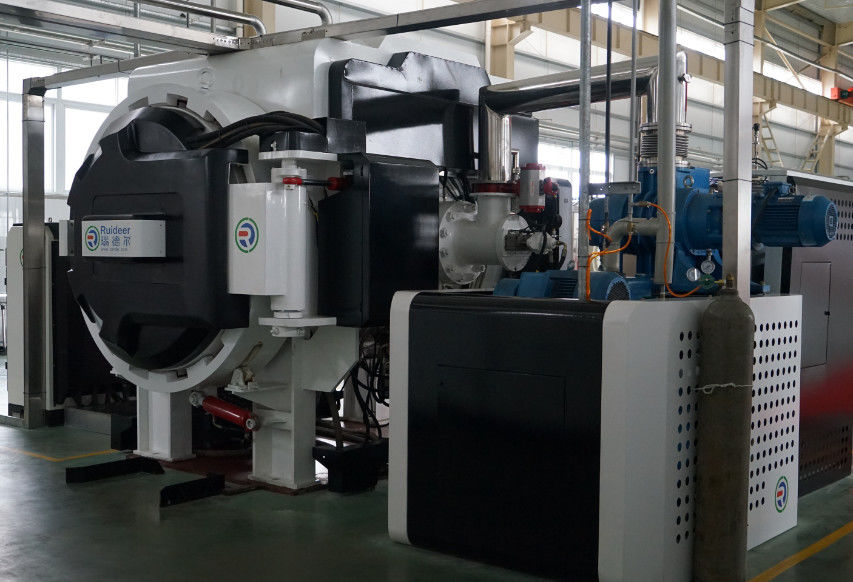

Customized Vacuum Heat Treatment Furnace Customized Size And Configuration

Customized vacuum heat treatment sintering furnace(user can customized size and configuration)



Main technical parameters:





Service life of furnace shell



20 years



Furnace shell working time



6000 (furnace/time)



Effective working zone size(W*H*L)

300mm×300mm×1000mm



Max loading capacity

(it depends on the type of product)



Working temperature

1800℃(The maximum design temperature)
  1750℃(The actual working temperature)



Pumping speed



The vacuum degree can reach 5Pa within 30min after the pump is started, and the limit vacuum value can reach 1Pa after pumping for 30min after reaching 5Pa

(After drying the furnace,under the empty furnace, clean and cold state)



Leakage rate



≤3Pa/h

(Measuring the limit vacuum after drying the furnace, stop the operation of the pump group and start the test.Average within 3 hours in empty furnace, clean and cold state)



Cooling speed



The furnace is empty.From 1450℃ cooling to 100℃ will cost less than and equal to 6 hours.(Water temperature≤28℃,2bar≤Water pressure≤3bar)





Cooling mode



The inner furnace is equipped with rapid cooling fan and water cooling will cooling with the furnace.



After sales:

1.Installation, Commissioning And Acceptance

We do installation, commissioning and acceptance in buyer's plant.During the installation and commissioning period, the commissioning personnel shall be provided free of charge by the demander according to the staff standard.

The equipment shipped to the buyer, the seller received the buyer's notification, both within a week to carry the equipment out of the box together, then check the equipment and all components according to the packing list . Including equipment accessories, spare parts and special tools, attached manual and technical documents, etc. It can be installed after the acceptance check of equipment.
After installation and debugging, the equipment shall be accepted according to the technical accessories.



2.Training

When taking-over the Furnace to the customer, We will give a staff training to customer. The operating personnel of the customer should join to commission,test the furnace, when installing at customer’s company.
This is practical operation training and practical maintenance training,
and our technical personnel will telling the basic principle,equipment maintenance knowledge,And the common fault handling measures.We can training 2 ~ 3 workers. ( Training how to maintenance and operating.)



3. Warranty period

The warranty period of the equipment is 12 months, which starts from the date of installation and debugging of the supplier. Equipment failure happens, after-sales service personnel shall give solutions within 2 hours, after receiving the buyer's notification . If it is need to go to the site for treatment , operators dispatched by seller should arrive at the site within 48 hours after go aboard. In case of emergency,operators should arrive at the site within 48 hours after go aboard, and continue to make repairs until the fault is removed and the equipment returns to normal.





Note:

We are a professional manufacturer of powder metallurgy sintering furnaces. Custom design is available according to customer’s requirements. Please offer us the sintered material, size of sintered piece, max. temperature, heating zone dimensions, vacuum level and other special requirements when making inquiries. We will offer professional proposal and solutions based on your requirements.



Quality assurance and service:
1. Our company guarantees that all materials and purchased components meet the national technical quality standards.
2. Within one year from the date of acceptance of the equipment, if there is any quality problem caused by the design or manufacture of the equipment, our company will carry out free maintenance and bear the maintenance cost.If the equipment exceeds the warranty period or is damaged due to human error or force majeure (such as natural disaster), our company will actively provide high-quality paid service.
