10Mpa Sinter HIP Furnace

10Mpa Sinter HIP Furnace

  • High Light

    10Mpa Sinter HIP Furnace

    ,

    Cemented Carbide Sinter HIP Furnace

    ,

    10Mpa horizontal vacuum furnace

  • Usage
    Sintering Furnace
  • Warranty
    1 Year
  • Weight
    2T-35T
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Loading Capacity
    100kg To 2000kg (adjustable)
  • Structure
    Horizontal Type
  • Place of Origin
    China
  • Brand Name
    Ruideer
  • Certification
    CE;ISO9001;ISO14001;OHSAS 18001;GB/T29490
  • Model Number
    500*500*1800
  • Minimum Order Quantity
    1 set
  • Packaging Details
    Exempted from inspection wooden case
  • Delivery Time
    100-120 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    7 sets/month

10Mpa Sinter HIP Furnace

Precise functional with standardization production 10Mpa sinter-HIP furnace(extensive application for cemented carbide)





Application:

It can be used for high-performance carbide materials (positive negative pressure dewaxing, forming agent for paraffin or PEG) and vacuum sintering and low pressure argon gas static pressure sintering sintering, high pressure and low pressure argon dynamic pressure sintering, high temperature and high pressure conditions of argon charged cooling/insulation/warming mature equipment as the main function of batch production.Applicable to the field of cemented carbide, ceramics and other products.



Structure:

The pressurized sintering furnace includes control system, heating system, degreasing system (positive and negative pressure degreasing system), vacuum system, partial pressure sintering system, pressurized sintering system, cooling water system, rapid cooling system, auxiliary system and safety system.On the whole, it meets the strict requirements of high performance cemented carbide in the sintering process for the uniformity of furnace temperature and atmosphere.The furnace structure design is advanced and reasonable, which is convenient for operation and maintenance.Main supporting components (control elements, sensors, graphite heating element, thermocouple, main control valve, vacuum pump, etc.) have the international advanced level, can adapt to long-term, stable, reliable mass production requirements.At the same time, the equipment also meets the national requirements for energy conservation and environmental protection.



Working environment of plant:
Humidity and temperature requirement

 Environment humidity: <90%(at +35℃)
Environment temperature: -10℃~40℃
Power supply
 Motive power supply: 380V±10%,50Hz,3 phase 5 wire system;Heating power:600KVA

Control power supply(China standard): 210V~250V,50Hz,Single-phase



After sales:

1.Installation, Commissioning And Acceptance

We do installation, commissioning and acceptance in buyer's plant.During the installation and commissioning period, the commissioning personnel shall be provided free of charge by the demander according to the staff standard.

The equipment shipped to the buyer, the seller received the buyer's notification, both within a week to carry the equipment out of the box together, then check the equipment and all components according to the packing list . Including equipment accessories, spare parts and special tools, attached manual and technical documents, etc. It can be installed after the acceptance check of equipment.
After installation and debugging, the equipment shall be accepted according to the technical accessories.



2.Training

When taking-over the Furnace to the customer, We will give a staff training to customer. The operating personnel of the customer should join to commission,test the furnace, when installing at customer’s company.
This is practical operation training and practical maintenance training,
and our technical personnel will telling the basic principle,equipment maintenance knowledge,And the common fault handling measures.We can training 2 ~ 3 workers. ( Training how to maintenance and operating.)



3. Warranty period

The warranty period of the equipment is 12 months, which starts from the date of installation and debugging of the supplier. Equipment failure happens, after-sales service personnel shall give solutions within 2 hours, after receiving the buyer's notification . If it is need to go to the site for treatment , operators dispatched by seller should arrive at the site within 48 hours after go aboard. In case of emergency,operators should arrive at the site within 48 hours after go aboard, and continue to make repairs until the fault is removed and the equipment returns to normal.

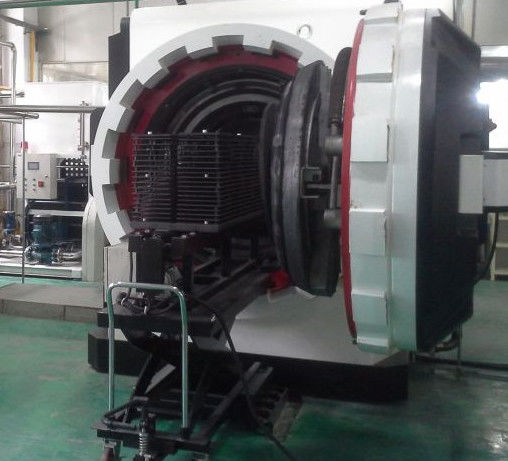

10Mpa Sinter HIP Furnace 0





10Mpa Sinter HIP Furnace 1
