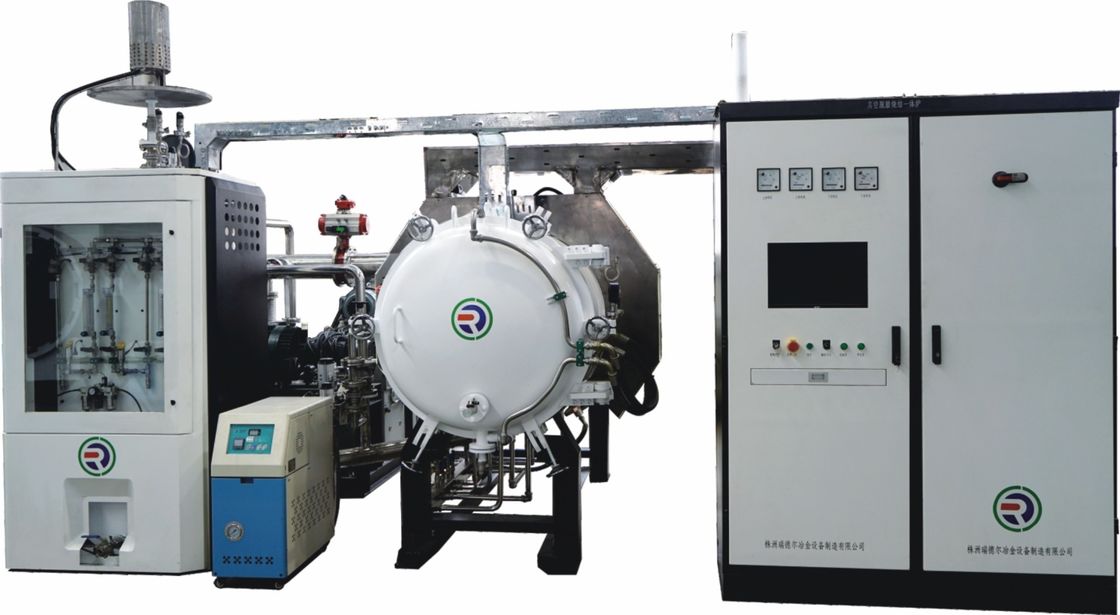

Industrial Vacuum Heat Treatment Furnace , Vacuum Hardening Furnace 1550 ℃

Industrial Vacuum Heat Treatment Furnace , Vacuum Hardening Furnace 1550 ℃

mim furnace

metal injection molding furnace

Place of Origin:


Brand Name:



CE;ISO9001;ISO14001;OHSAS 18001;GB/T29490

Model Number:


Contact Us
Request A Quote
Product Details
Vacuum Heat Treatment Furnace
1550 ℃
Other Name:
Vacuum Hardening Furnace
Cooling Period:
≤5 ℃
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Wooden packing
Delivery Time
90 days
Payment Terms
L/C, T/T
Supply Ability
8 sets/month
Product Description

Industrial Vacuum Heat Treatment Furnace , Vacuum Hardening Furnace 1550 ℃


Vacuum Heat Treatment Furnace brief introduction


Vacuum hardening furnace is a professional heat treatment furnace with high purity Sic as heating element, which is used in low vacuum environment. In the metal shiled or ceramic fiber furnace chamber equips with high vacuum pump systems. Vacuum degree can up to 10/7*10-3 Pa. The furnace chamber is alumina refractory fiber or metal shiled for excellent thermal insulation, vacuum reservoir wither cooling system. The Vacuum hardening furnace has the advantages of novel structure and convenient operation.


Vacuum Heat Treatment Furnace Features


1.The vacuum MIM sintering furnace uses forming agents like wax, tree agent for vacuum sintering and H2 sintering.
2. Special debinding process with excellent sealing structure helps avoid contaminating inside components.
3. Horizontal design for easy loading/unloading and maintenance.
4. Automatic control of the entire process.


Vacuum Heat Treatment Furnace Parameter


Loading space 400*400*1200/400*400*1500/500*500*1800
Max. working Temp 1550 ℃
Cooling period ≤5h/≤6h/8h
Vacuum leakage Rate 3Pa/h(Average in cold,empty,dry chamber within 24 hours)
Vacuum pump Slide-valve pump,Roots pump
Temp.variation: ≤5 ℃
Material quantity 32PCs/42PCs
Temp.Measurement Mode WRe5-26 thermocouple
Temp. Control Mode 2-zone or 3-zone Temp.Control
Heating power 120kva/150KVA/220KVA
Applicable forming agent Wax,Resin


Note: The above specifications are defined according to MIM stainless steel .The above parameters can be adjusted to the process requirements, they are not as acceptance standard, the detailed spec. will be stated in the technical proposal and agreements.


1. Compact structure, small occupied area, low energy consumption and rapid cooling speed, saving energy and protecting environment.
2. Full range of sizes available, ranging from furnaces for experimental R&D, small and medium-sized enterprises to furnaces for mass production. We can also design MIM debinding sintering furnaces of other sizes according to customer’s specific requirements.
3. Round or square graphite box is available for different applications.
4. Complete dewaxing mode with high wax-collection rate, suitable for different forming agents including rubber, paraffin wax, PEG and extrusion forming agents.
5. High automation level as well as safe and reliable operating system.
6. The control system of the vacuum MIM sintering furnace is highly-automatic and humanized with data record and backup function.
7. The insulation box uses “sandwich” structure and high-strength CFC material that is not prone to deform after years of use.
