Custom Made Gas Pressure Sintering Furnace Multi Atmosphere Controlled

Custom Made Gas Pressure Sintering Furnace Multi Atmosphere Controlled

  • High Light

    vacuum pressure furnace

    ,

    high pressure furnace

    ,

    Custom Made Gas Pressure Sintering Furnace

  • Types
    Gas Pressure Sintering Furnace
  • Heating Method
    Resistive Heating
  • Heating Body
    Graphite Heating
  • Gas Can Be Introduced
    Inert Gas
  • Custom
    Custom Made
  • Application
    Multi Atmosphere Controlled
  • Place of Origin
    Zhuzhou City, Hunan Province,China
  • Brand Name
    Ruideer
  • Certification
    CE;ISO9001;ISO14001;OHSAS 18001;GB/T29490
  • Minimum Order Quantity
    1set
  • Price
    250000.00——800000.00(USD)
  • Packaging Details
    Special wooden case packing
  • Delivery Time
    60-80 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    8 sets/month

Custom Made Gas Pressure Sintering Furnace Multi Atmosphere Controlled

Multi-atmosphere controlled gas overpressure sintering furnace



Gas Pressure Sintering Furnace Introduction



Gas pressure sintering furnacePower supply:General standard is three phase five wire system AC380V±10% 50HZ.Control power supply:Single-phase AC210V-250V 50HZ  design(Different countries and regions can be designed according to local grid standards).



Gas pressure sintering furnaceTemperature and atmosphere uniformity:The magnetic force of the furnace control block is different from that of the cobalt magnetic deviation.Conventional sintering furnace test furnace control block brand isYG6 medium particles, YC40.Debinding pressure sintering integrated.



Gas Pressure Sintering Furnace Technical parameters:





Specifications RDE-DYL-336/RDE-DYL-339 RDE-DYL-3535120/RDE-DYL-4412 RDE-DYL-5512/RDE-DYL-5518 RDE-DYL-5527
Effective space(w* h * l)mm

300*300*600/

300*300*900

350*350*1200/

400*400*1200

500*500*1200/

500*500*1800

500*500*2700
Max.Temperature 1600℃ 1600℃ 1600℃ 1600℃
Maximum load 150Kg/200Kg 300Kg/350Kg 1200Kg/1500Kg 2000Kg
Vacuum leakage rate:(Average in cold,empty,dry chamber in 3 hours) 2Pa/h 2Pa/h 3Pa/h 3Pa/h
Extreme vacuum 0.8Pa 0.8Pa 1Pa 1.5Pa
Wax-collection rate(negative pressure dewaxing process.The maximum average value is 3 furnaces) 98% 98% 98% 98%
Working pressure

1MPa/2MPa/

6MPa/10MPa

1MPa/2MPa/

6MPa/10MPa

1MPa/2MPa/

6MPa/10MPa

1MPa/2MPa/

6MPa/10MPa

Cooling period(Sintering temperature—100℃) 40min-150min 120min-360min 180min-420min 180min-480min
Temperature control mode 2-zone/3-zone 2-zone/3-zone 3-zone/4-zone 4-zone
Atmosphere and temperatureuniformity

Com≤±0.15%

Hc≤±0.25KA/M

Com≤±0.2%

Hc≤±0.3KA/M

Com≤±0.2%

Hc≤±0.3KA/M

Com≤±0.2%

Hc≤±0.3KA/M

Input gas allowed Ar,N2,He,H2,CH4,Co2
Functions:Vacuun dewaxing,H2 dewaxing,vacuum heating,heating with gas mixture(Co2/CH4/H2),heating flowing gas,heating pressure gas,Rapid cooling.

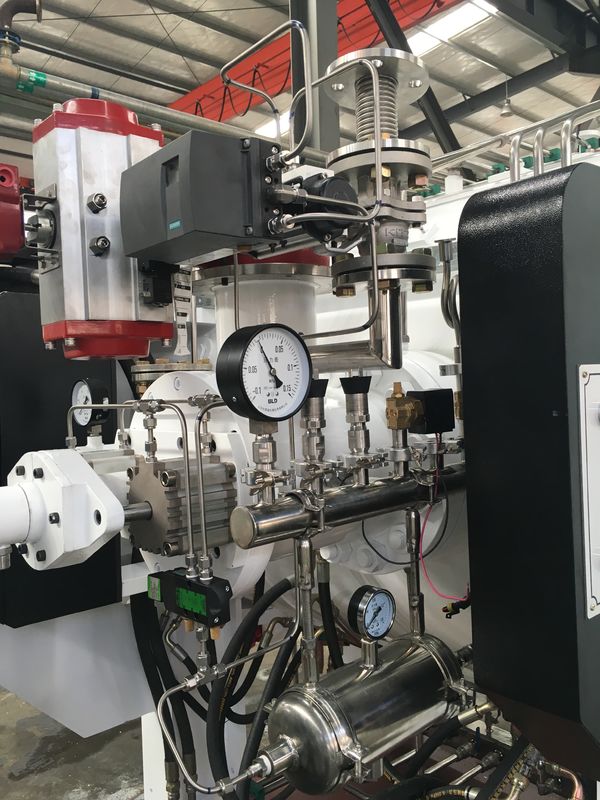

Custom Made Gas Pressure Sintering Furnace Multi Atmosphere Controlled 0
