10MPa Gas Pressure Sintering Furnace Degreasing And Pressure Sintering Integrated

10MPa Gas Pressure Sintering Furnace Degreasing And Pressure Sintering Integrated

  • High Light

    vacuum pressure furnace

    ,

    high pressure furnace

    ,

    10MPa Gas Pressure Sintering Furnace

  • Types
    Gas Pressure Sintering Furnace
  • Forming Agent Type
    Paraffin, Rubber, PEG
  • High Pressure
    10MPa
  • Powder Metallurgy
    Carbide, Silicon Nitride Ceramic, Zirconia Ceramic, Stainless Steel Products
  • Function
    Degreasing And Pressure Sintering Integrated
  • OEM
    Yes
  • Place of Origin
    Zhuzhou City, Hunan Province,China
  • Brand Name
    Ruideer
  • Certification
    CE;ISO9001;ISO14001;OHSAS 18001;GB/T29490
  • Minimum Order Quantity
    1set
  • Price
    250000.00——800000.00(USD)
  • Packaging Details
    Special wooden case packing
  • Delivery Time
    60-80 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    8 sets/month

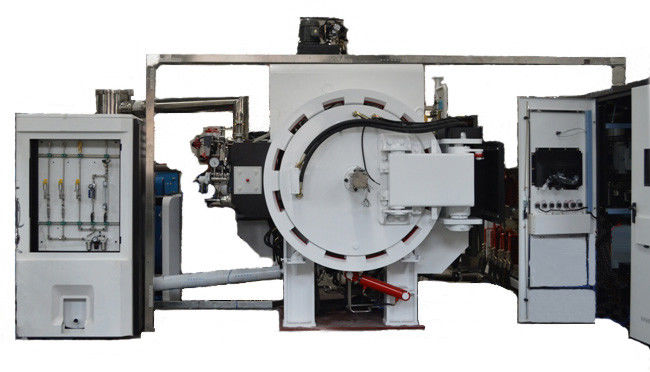

10MPa Gas Pressure Sintering Furnace Degreasing And Pressure Sintering Integrated

10MPa pressure sintering furnace made in China, degreasing and pressure sintering integrated furnace



Gas Pressure Sintering Furnace​ Description:



gas pressure sintering furnace is single-chamber, horizontal and periodic heating.It adopt low voltage and large current graphite heating element to heating, and it has multiple heating units, each unit controls the temperature separately.The whole process is automatically controlled, monitored, tracked and displayed and recorded by the computer.

The gas pressure sintering furnace is a vacuum gas pressure furnace which is filled with a high pressure gas during the sintering process. The sintering process is to heat the sintered material under negative pressure to grow it; to be sintered under normal pressure to reach a fatigue state, so that the pores in the material are closed; finally, sintering under high pressure further increases the fatigue state of the material and The stress in the material is quickly removed, and the material is further consolidated to remove residual pores. Therefore, after high temperature and high pressure sintering process, all aspects of mechanical properties (hardness, flexural strength, Weibull distribution mode, fracture toughness, etc.) are superior to ordinary sintering processes.



Gas Pressure Sintering Furnace​ Application:



Pressure sintering furnace is very suitable for the sintering of various ceramic materials, alloy materials and metal materials, especially the materials which will decompose after the temperature rises and the hardness of the sintering in the conventional method can not meet the requirements. As with vacuum thermal sintering, there are no restrictions on the sintered part or its geometry in this process. Sintering of conventional synthetic materials. Sintered silicon nitride and sialon ceramics have excellent mechanical properties after sintering. They can be used as cutting tools, rotors for turbocharger engines and components for engines. and many more).
Sintered SiC ceramics (can be used to corrode high mechanical stress parts in the environment, etc.).
High temperature super alloy (for mechanical stress parts in high temperature environments).

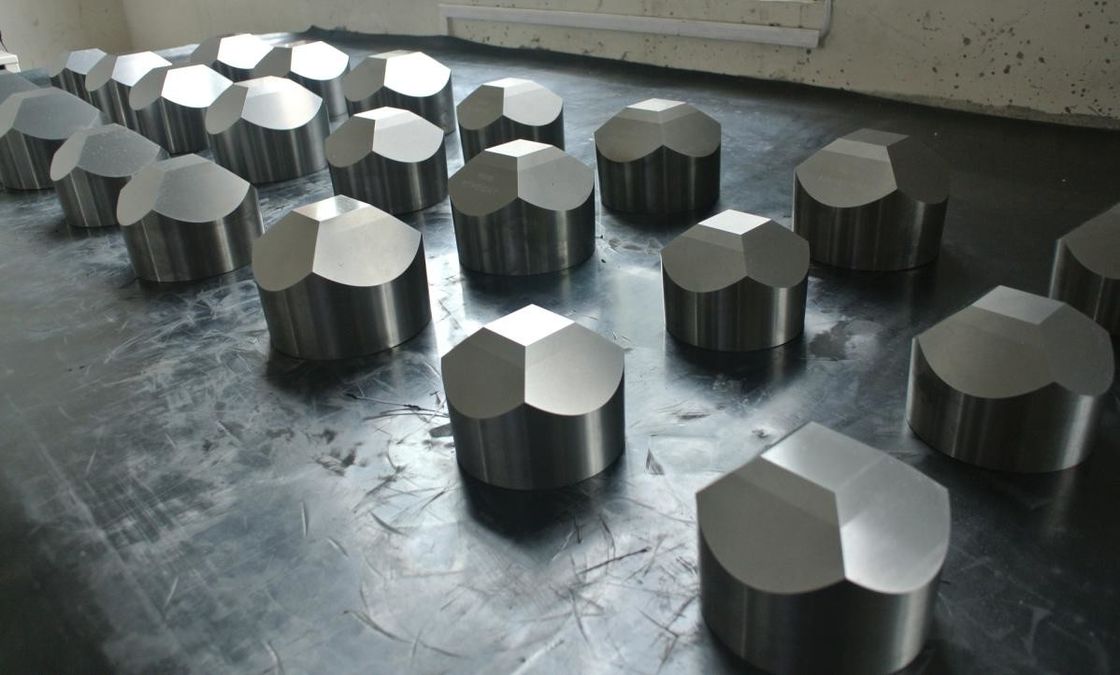

Cemented carbide, especially for sintering carbides with low cobalt content and high quality mechanical parts.
Production of SSN batch parts in the automotive industry.



Gas Pressure Sintering Furnace​ Technical parameters:





Specifications RDE-DYL-224 RDE-DYL-3535120/RDE-DYL-4412 RDE-DYL-5512/RDE-DYL-5518 RDE-DYL-5527
Effective space(w* h * l)mm 200*200*400

350*350*1200/

400*400*1200

500*500*1200/

500*500*1800

500*500*2700
Max.Temperature 1600℃ 1600℃ 1600℃ 1600℃
Maximum load 50Kg 300Kg/350Kg 1200Kg/1500Kg 2000Kg
Vacuum leakage rate:(Average in cold,empty,dry chamber in 3 hours) 1Pa/h 2Pa/h 3Pa/h 3Pa/h
Extreme vacuum 0.8Pa 0.8Pa 1Pa 1.5Pa
Wax-collection rate(negative pressure dewaxing process.The maximum average value is 3 furnaces) 98% 98% 98% 98%
Working pressure

1MPa/2MPa/

6MPa/10MPa

1MPa/2MPa/

6MPa/10MPa

1MPa/2MPa/

6MPa/10MPa

1MPa/2MPa/

6MPa/10MPa

Cooling period(Sintering temperature—100℃) 40min-120min 120min-360min 180min-420min 180min-480min
Temperature control mode Single zone/2-zone 2-zone/3-zone 3-zone/4-zone 4-zone
Atmosphere and temperatureuniformity

Com≤±0.15%

Hc≤±0.25KA/M

Com≤±0.2%

Hc≤±0.3KA/M

Com≤±0.2%

Hc≤±0.3KA/M

Com≤±0.2%

Hc≤±0.3KA/M

Input gas allowed Ar,N2,He,H2,CH4,Co2
Functions:Vacuun dewaxing,H2 dewaxing,vacuum heating,heating with gas mixture(Co2/CH4/H2),heating flowing gas,heating pressure gas,Rapid cooling.



Name: Gas Pressure Sintering Furnace Certification:: CE/ISO9001/ISO14001/OHSAS 18001/GB/T29490
Vacuum Pump: Backing Pump, Roots-type Pump Color: White
Control Power Supply: Single-phase AC210V-250V 50HZ Max.Temperature:
