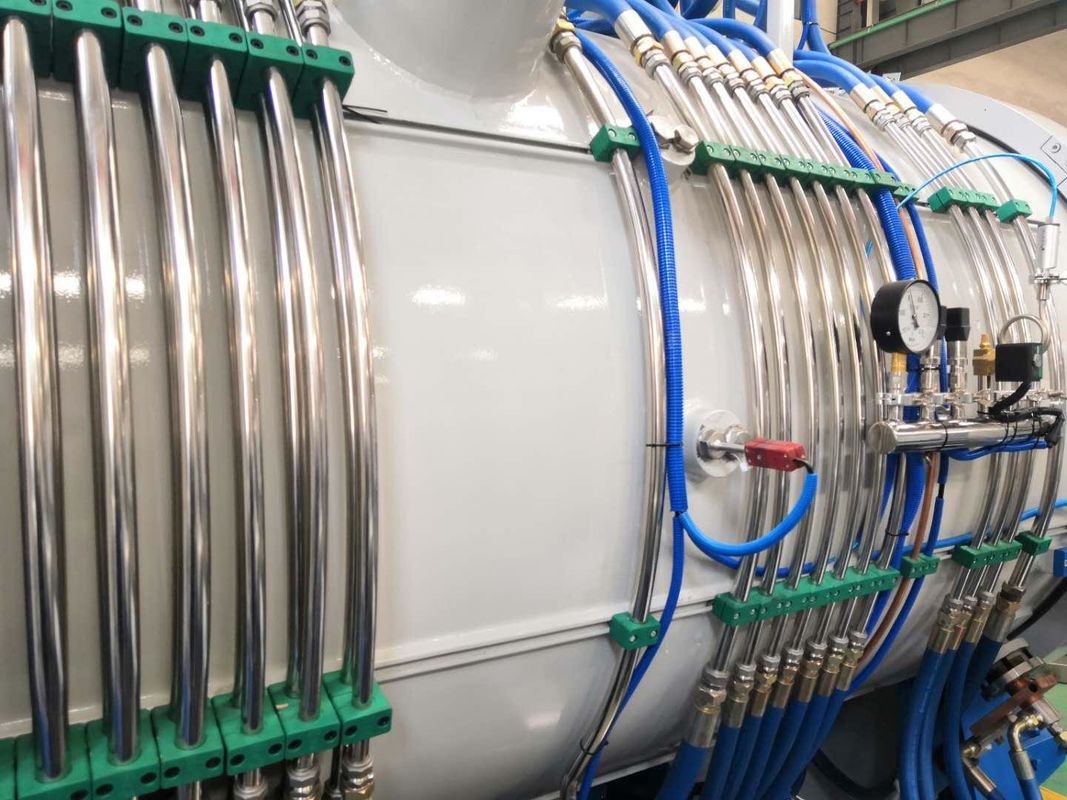

Rapid Cooling Speed Industrial Vacuum Furnace Max Working Temperature 2200°C

Rapid Cooling Speed Industrial Vacuum Furnace Max Working Temperature 2200°C

  • High Light

    industrial vacuum furnace


    high vacuum furnace

  • Name
    Industrial Vacuum Furnace
  • Vacuum Leakage Rate
  • MAX Working Pressure
  • Temperature Control Mode
  • Functions
    Vacuum Heating,heating Flowing Gas.ect
  • Max. Working Temperature
  • Place of Origin
    Zhuzhou City, Hunan Province,China
  • Brand Name
  • Certification
    CE;ISO9001;ISO14001;OHSAS 18001;GB/T29490
  • Minimum Order Quantity
    1 set
  • Price
  • Packaging Details
    Special wooden case packing
  • Delivery Time
    100-120 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    8 sets/month

Rapid Cooling Speed Industrial Vacuum Furnace Max Working Temperature 2200°C

Rapid Cooling Speed Industrial Vacuum Furnace Max Working Temperature 2200°C




Products Characteristic

1. Horizontal design for easy loading/unloading and easy maintenance.

2. Automatic control of the entire process

3. This kind of Ceramic Sintering Furnace is single room,horizontal type,recycle heating furnace, it adopt Molybdenum heating element of low voltage and large current.All the technical process is automatic controlled, monitored, chased, fault diagnosed which showed and recorded by computer.

4. Furnace heating element, insulation and charging box are all in cylindrical structure, compared with the traditional square structure: Charging room is larger, size is more flexible, the temperature and atmosphere more uniform.


Vacuum pump: backing pump,Roots-type pump(slide valve pump, rotary vane pump, screw pump and so on can be selected for the backing pump, allowing customers to choose world-class brand products)


Power supply: General standard is three phase five wire system AC380V±10% 50HZ.

Control power supply:Single-phase AC210V-250V 50HZ design(Different countries and regions can be designed according to local grid standards)


Temperature measurement mode ; WRe5-26 thermocouple


Technical parameters:




Effective space(w* h * l)mm



Maximum load 1800Kg

Vacuum leakage rate:(Average in cold,empty,dry chamber in 3 hours)

Extreme vacuum 1.5Pa

MAX working pressure


Cooling periodSintering temperature—100℃


Temperature control mode



vacuum heating,heating flowing gas,Rapid cooling.


Applications: For Non-metal ceramic, Precision Ceramic, Life ceramics, Industrial ceramics, Sic carbide


1. Max. working temperature of this high temperature sintering furnace: 2200°C.
2. Compact structure, small occupied area, low energy consumption and rapid cooling speed, saving energy and protecting environment.
3. Full range of sizes available, ranging from furnaces for experimental R&D, small and medium-sized enterprises to furnaces for mass production. We can also design Molybdenum strip sintering furnaces of other sizes according to customer’s specific requirements.
4. Round or square graphite box is available for different applications.
5. Complete dewaxing mode with high wax-collection rate, suitable for different forming agents including rubber, paraffin wax, PEG and extrusion forming agents.
6. High automation level as well as safe and reliable operating system.
7. The control system of our high temperature sintering furnace is highly-automatic and humanized with data record and backup function.
8. The insulation box uses “sandwich” structure and high-strength CFC material that is not prone to deform after years of use.
9. Door of the insulation box is designed with special “step” design for improved insulation effect and extended service life of the insulation box.
10. Remote control, diagnosis and repair can be realized.
11. The electrode arc monitoring system can prevent serious damage to furnace shell caused by overheat and arc effect.
12. The function of resuming heating after short-time power failure can provide protection to the product in the furnace.
13. Persistent efforts of our R&D team in improving these Molybdenum strip sintering furnace has enabled Ruideer to obtain 13 patents up till now.
