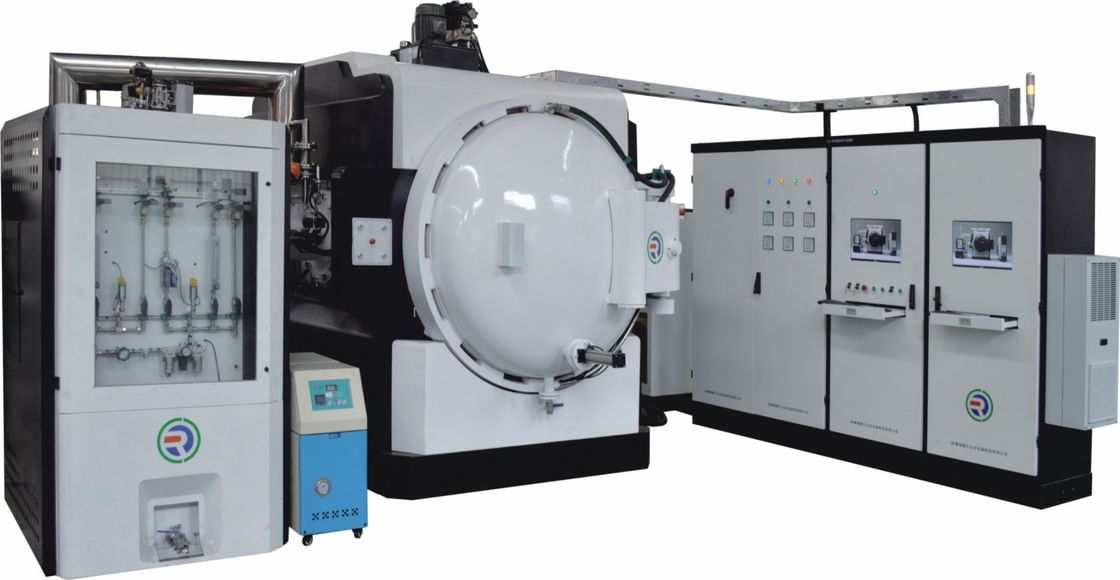

High Performance Ceramic Sintering Furnace Effective Space 500*500*1800mm

High Performance Ceramic Sintering Furnace Effective Space 500*500*1800mm

Description:

The ceramic sintering furnace is single-chamber, horizontal and periodic heating. It adopt low voltage and large current graphite heating element to heating, and it has multiple heating units, each unit controls the temperature separately. The whole process is automatically controlled, monitored, tracked and displayed and recorded by the computer.

It including control system, heating system, vacuum system ,cooling water system, rapid cooling system, auxiliary system and safety system.

It adopt the structure of built-in graphite liner in insulation tube. In general, it meets the strict requirements of temperature uniformity and atmosphere uniformity in the sintering process of high-performance materials. The furnace structure design is advanced and reasonable, and it is easy to use and maintain.

Vacuum pump: backing pump,Roots-type pump(slide valve pump, rotary vane pump, screw pump and so on can be selected for the backing pump, allowing customers to choose world-class brand products)

Power supply: General standard is three phase five wire system AC380V±10% 50HZ.

Control power supply:Single-phase AC210V-250V 50HZ design(Different countries and regions can be designed according to local grid standards)

Temperature measurement mode ; WRe5-26 thermocouple

Technical parameters:

Applications: For Non-metal ceramic, Precision Ceramic, Life ceramics, Industrial ceramics, Sic carbide

Competitive Advantage:

1. Compact structure, small occupation area, low energy consumption, rapid cooling speed, saving energy and protecting environment.

2. Full range of sizes available, can be used in experimental research and development, Small and medium-sized enterprises as well as mass prodution. We can design the products according to customer’s special requirement.

3. High automation level: one-button start, Double industrial PC operating system, mutually redundant, afe and reliable.

4. The control system is full-automatic with data record &backup function, the operation system is more humanized, more powerful.

5. The Insulation box is of good insulation effect, free of volatilization athigh temperature, with long life.It adopts “sandwich structure”and CFC material inside and outside with high strength,will be no deformation afteer many years use.

6. Program has resume-heat-at-breakpoint function, no need to restart the program in case of short time power failure.

7. Convenient and intelligent: The control interface of sintering furnace can be monitored by mobile phone, control and understand the running state of the equipment anytime and anywhere. Fully automatic one-key operation function, realize the supervision of multiple devices by one person, intelligent production, and docking ERP management system.
