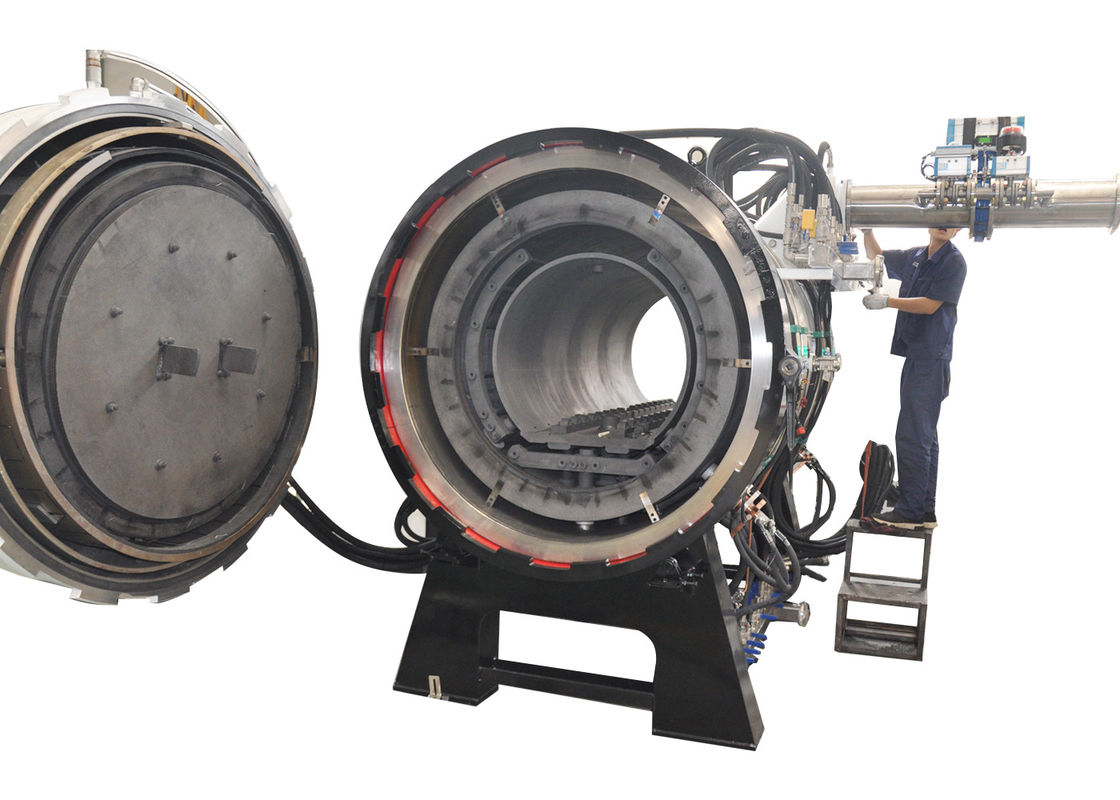

Large Capacity Vacuum Furnace For Heat Treatment Specifications RDE-GWL-5518

Large Capacity Vacuum Furnace For Heat Treatment Specifications RDE-GWL-5518

heat treatment furnaces

heat treat furnace

Place of Origin:

Zhuzhou City, Hunan Province,China

Brand Name:



CE;ISO9001;ISO14001;OHSAS 18001;GB/T29490

Model Number:


Contact Us
Request A Quote
Product Details
Vacuum Furnace For Heat Treatment
Good Quality, Energy Saving, Safety And Less Pollution
Vacuum Leakage Rate:
OHSAS 18001;GB/T29490
Vacuum Heating,Rapid Cooling
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Special wooden case packing
Delivery Time
60-90 work days
Payment Terms
L/C, T/T
Supply Ability
8 sets/month
Product Description

Large Capacity Vacuum Furnace For Heat Treatment Specifications RDE-GWL-5518



Technical parameters:



Specifications RDE-GWL-5518
Effective space(w* h * l)mm 500*500*1800
Max.Temperature 1350℃
Maximum load 1800Kg
Vacuum leakage rate:(Average in cold,empty,dry chamber in 3 hours) 3Pa/h
Extreme vacuum 1.5Pa
MAX working pressure 100KPa
Cooling period(Sintering temperature—100℃) 480min
Temperature control mode 3-zone
Functions: vacuum heating,Rapid cooling


Applications: For Cemented Carbide , Precision Ceramic , For stainless steel , Iron-bae alloy , Copper-base alloy , Aluminum products Vacuum heat treatment


Vacuum Heat Treatment Furnace

Vacuum heat treatment is a comprehensive technology combining vacuum technology with heat treatment, which refers to all and part of the heat treatment process in vacuum. Vacuum heat treatment furnace has high thermal efficiency, can achieve rapid heating and cooling, can achieve no oxidation, no decarbonization, no carburization, can remove the surface of the workpiece phosphorus chip, and degreasing and degassing, so as to achieve a bright surface purification effect.

Heat Treatment is the process in which metallic/steel parts are exposed completely or partially to time-temperature sequences in order to change the mechanical and/or corrosion properties. There are numerous application areas,
• Annealing
• Hardening
• Tempering
• Aging
• Case hardening
to achieve a higher strength of the material, better wear resistance or to improve the corrosion behaviour of the components.

Vacuum heat treatment furnace is an advanced heat treatment equipment which has been greatly developed in recent years. Workpieces are heated and cooled in ultra-low pressure space. It has the advantages of good quality, energy saving, safety and less pollution.

The shell, cover, conductive disposal of electrothermal elements and heat insulation of vacuum heat treatment furnace all work in vacuum and heating state.
Vacuum heat treatment furnace adopts low voltage and high current.

The lining materials for heating and insulation of vacuum heat treatment furnace work in vacuum and high temperature. Therefore, the requirements of high temperature resistance, low steam pressure, good radiation effect and low thermal conductivity are put forward for these materials.

Vacuum heat treatment of metal parts is carried out in a closed vacuum furnace. Therefore, it is very important to obtain and maintain the original leakage rate of the furnace and ensure the working vacuum of the vacuum furnace to ensure the quality of vacuum heat treatment of parts.

Vacuum heat treatment furnace has a high degree of automation, because the operation of heating and cooling of metal workpieces requires dozens or even dozens of actions to complete.
