Durable Vacuum Heat Treatment Furnace With WRe5-26 Thermocouple Measurement Mode

Durable Vacuum Heat Treatment Furnace With WRe5-26 Thermocouple Measurement Mode

  • High Light

    heat treatment furnaces

    ,

    heat treating furnaces and equipment

  • Temperature Measurement Mode
    WRe5-26 Thermocouple
  • Name
    Vacuum Heat Treatment Furnace
  • Specifications
    RDE-GWL-5518
  • Effective Space(w* H * L)
    500*500*1800mm
  • Extreme Vacuum
    1.5Pa
  • Temperature Control Mode
    3-zone
  • Place of Origin
    Zhuzhou City, Hunan Province,China
  • Brand Name
    Ruideer
  • Certification
    CE;ISO9001;ISO14001;OHSAS 18001;GB/T29490
  • Model Number
    User-defined
  • Minimum Order Quantity
    1 set
  • Price
    150000.00(USD)
  • Packaging Details
    Special wooden case packing
  • Delivery Time
    100-120 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    7 sets/month

Durable Vacuum Heat Treatment Furnace With WRe5-26 Thermocouple Measurement Mode

Durable Vacuum Heat Treatment Furnace With WRe5-26 Thermocouple Measurement Mode





Description:

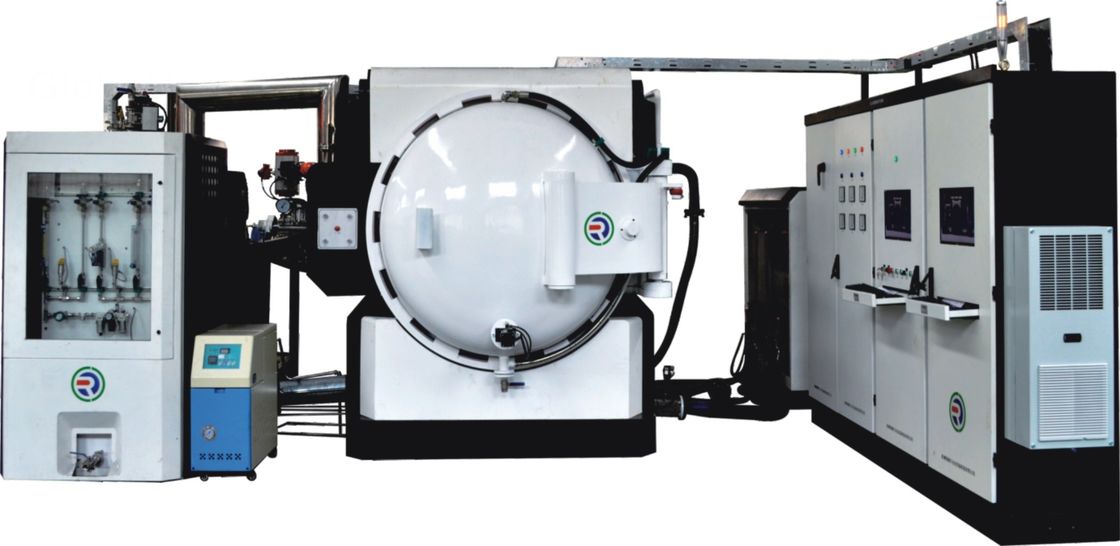

The vacuum heat treatment furnace is single-chamber, horizontal and periodic heating. It adopt low voltage and large current graphite heating element to heating, and it has multiple heating units, each unit controls the temperature separately.The whole process is automatically controlled, monitored, tracked and displayed and recorded by the computer.

It including control system,heating system, vacuum system, cooling water system, rapid cooling system, auxiliary system and safety system.

It adopt the structure of built-in graphite liner in insulation tube. In general, it meets the strict requirements of temperature uniformity and atmosphere uniformity in the sintering process of high-performance materials. The furnace structure design is advanced and reasonable, and it is easy to use and maintain.



Vacuum pump: backing pump, Roots-type pump(slide valve pump, rotary vane pump, screw pump and so on can be selected for the backing pump, allowing customers to choose world-class brand products)



Power supply: General standard is three phase five wire system AC380V±10% 50HZ.

Control power supply: Single-phase AC210V-250V 50HZ design(Different countries and regions can be designed according to local grid standards)



Temperature measurement mode : WRe5-26 thermocouple



Technical parameters:





Specifications

RDE-GWL-5518

Effective space(w* h * l)mm

500*500*1800

Max.Temperature

1350℃
Maximum load 1800Kg

Vacuum leakage rate:(Average in cold,empty,dry chamber in 3 hours)

3Pa/h
Extreme vacuum 1.5Pa

MAX working pressure

100KPa

Cooling period(Sintering temperature—100℃)

480min

Temperature control mode

3-zone

Functions:

vacuum heating,Rapid cooling



Applications: For Cemented Carbide , Precision Ceramic , For stainless steel , Iron-bae alloy , Copper-base alloy , Aluminum products Vacuum heat treatment



Competitive Advantage:

1. Compact structure, small occupation area, low energy consumption, rapid cooling speed, saving energy and protecting environment.

2. Full range of sizes available, can be used in experimental research and development, Small and medium-sized enterprises as well as mass prodution. We can design the products according to customer’s special requirement.

3. High automation level: one-button start, Double industrial PC operating system, mutually redundant, safe and reliable.

4. Complete after-sales service system: Provides 7 x 24 hour telephone hotline. Propose solutions within 2 hours after receiving the customer's fault notice. With 15 experienced professional after-sales service staff, not only responsible for the company's product installation and debugging, but also for the need of users to complete the domestic and foreign manufacturers of sintering furnace after-sales and maintenance work.

5. Convenient service: If the customer has the demand may carry on the sintering product test in the Ruideer company site, and the company production site has the hot state pressure condition.

6. Quick installation: The installation can be completed and put into production within 15 days when water, electricity and gas are in place.
