Place of Origin:
Zhuzhou City, Hunan Province,China
Brand Name:
Ruideer
Certification:
CE;ISO9001;ISO14001;OHSAS 18001;GB/T29490

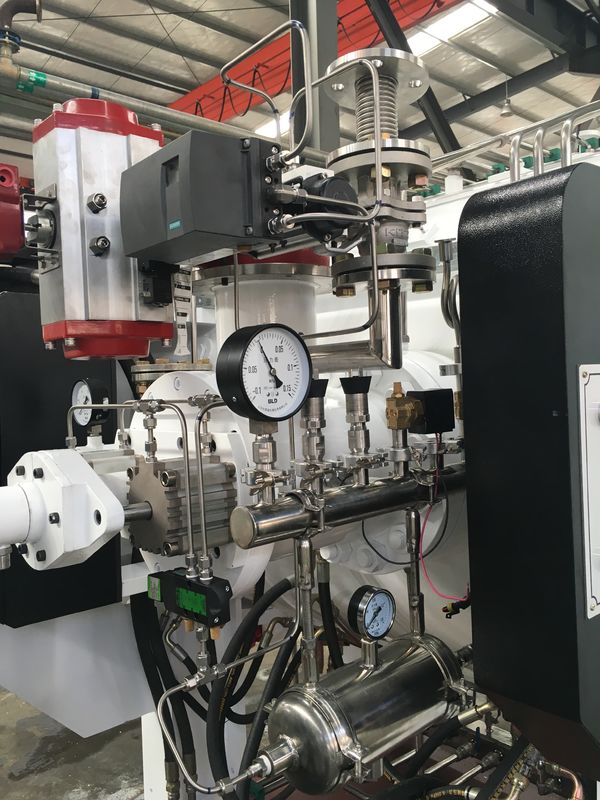

Maximum Load 1800Kg Metal Sintering Furnace , High Efficiency Industrial Vacuum Furnace
Vacuum High Temperature Sintering Furnace
Vacuum high temperature sintering furnace is made of graphite for the heating element of the vacuum resistance furnace for metal compounds, ceramics, inorganic compounds in a vacuum or protective atmosphere sintering products can also be used for metal materials, heat treatment. Mainly used in capacitors, Tantalum and other metals and refractory metal composition of the alloy material, ceramic materials, silicon carbide and silicon nitride high temperature sintering, but also for metal materials in high vacuum conditions, high temperature heat treatment or precious metal material degassing deal with.
Technical parameters:
|
Specifications |
RDE-GWL-5518 |
|
Effective space(w* h * l)mm |
500*500*1800 |
|
Max.Temperature |
2200℃ |
| Maximum load | 1800Kg |
|
Vacuum leakage rate:(Average in cold,empty,dry chamber in 3 hours) |
3Pa/h |
| Extreme vacuum | 1.5Pa |
|
MAX working pressure |
100KPa |
|
Cooling period(Sintering temperature—100℃) |
600min |
|
Temperature control mode |
3-zone |
|
Input gas allowed |
Ar,N2,He,H2,CH4,Co2 |
|
Functions: |
vacuum heating,heating flowing gas,Rapid cooling. |
Applications: For Non-metal ceramic/Sic carbide
Features
High Temperature Vacuum Sintering Furnace is used in Sm-Co, AlNiCo, metal mesh, cemented carbide, ceramic materials, photoelectric coating materials, graphite purification, magnet material and rare refractory metals, alloys (tungsten, Mo, W-Cu alloy) vacuum sintering process, also support atmosphere sintering. Max temperature could be achieve 2200C. This equipment was based on international excellent equipment technology, after many times improvement.
The control system of vacuum furnace was controlled by PLC, temperature was controlled by intelligent temp controller, accurate control, high automation. User can choose auto or manual undisturbed switching to operate it, this furnace has abnormal condition alarming function, easy to operate.
Environmental protection performance has been improved, maintenance cost saving, energy cost saving.
Customer Benefits
• With shorter process times with the use of intelligent de-waxing technology and powerful quick cooling
• No system will leave the factory without a positive result for temperature uniformity, vacuum parameters and all specified functions - allowing shorter commissioning times for our customers
• High efficiency, reliability, long service life and ease of operation
• Low HIP gas consumption
• High energy efficiency
• Elaborated safety system for reliable and full-automatic operation
• Proven design and performance – reliable, sustainable, durable
