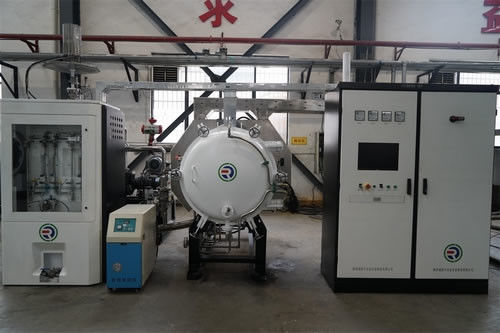

Easy Maintenance Metal Injection Molding Furnace Cooling Period ≤5h / ≤6h / ≤8h
MIM Debinding Sintering Furnace
Metal Injection Molding (MIM) Debinding Sintering Furnace
MIM debinding sintering furnace is mainly used for debinding sintering process of stainless steel, ferrous, titanium, alloy steel and high speed steel metal injection molding parts.
1. The MIM debinding & sintering furnace is used for wax or resin removing, it can also do vacuum sinter and minor pressure sinter processes.
2. Special designed debinding muffle is adopted with good sealing and complete bind removable, preventing inside components pollution.
3. Horizontal design for easy loading/unloading and easy maintenance.
4. Automatic control of the entire process.
5. This kind of MIM debinding & sintering furnace is single room,horizontal type,recycle heating furnace, it adopt graphite heating element of low voltage and large current.All the technical process is automatic controlled, monitored, chased, fault diagnosed which showed and recorded by computer.
6. Furnace heating element, insulation and charging box are all in cylindrical structure, compared with the traditional square structure: Charging room is larger, size is more flexible, the temperature and atmosphere more uniform.
|Max. working Temp||1550 ℃|
|Vacuum leakage Rate||3Pa/h(Average in cold,empty,dry chamber within 24 hours)|
|Vacuum pump||Slide-valve pump,Roots pump|
|Temp.Measurement Mode||WRe5-26 thermocouple|
|Temp. Control Mode||2-zone or 3-zone Temp.Control|
|Applicable forming agent||Wax,Resin|
1. Compact structure, small occupation area, low energy consumption, rapid cooling speed, saving energy and protecting environment.
2. Full range of sizes available, can be used in experimental research and development, Small and medium-sized enterprises as well as mass production. We can design the products according to customer's special requirement.
3. Graphite box can be round or square for different applications.
4. Complete Dewaxing mode, suitable for different forming agent including rubber, paraffin wax, PEG and extrusion molding agent with high wax-collection rate.
5. High automation level: one-button start; Double industrial PC operating system, mutually redundant, safe and reliable.
6. The control system is full-automatic with data record & backup function, the operation system is more humanized, more powerful.
7. The furnace can be remote controlled, diagnosed and repaired.
8. The electrode arc monitoring system can prevent serious damage to furnace shell caused by overheat and arc effect.
9. Program has resume-heat-at-break point function, no need to restart the program in case of short time power failure.
10. Our R&D team keeps persistent efforts on improvement of sintering furnaces, and acquired 17 patents up till now.
