Single Chamber Debinding Sintering Furnace , MIM Furnace Vacuum Leakage Rate 2 / 3 Pa/H

Single Chamber Debinding Sintering Furnace , MIM Furnace Vacuum Leakage Rate 2 / 3 Pa/H

mim furnace

metal injection molding furnace

Place of Origin:

Zhuzhou City, Hunan Province,China

Brand Name:

Ruideer

Certification:

CE;ISO9001;ISO14001;OHSAS 18001;GB/T29490

Contact Us
Request A Quote
Product Details
Name:
Debinding Sintering Furnace
Input Gas Allowed:
Ar,N2,He,H2,CH4,Co2
MAX Working Pressure:
100KPa
Extreme Vacuum:
0.8Pa/1Pa
Max.Temperature:
1600℃
Specifications:
RDE-YTL-4412/RDE-YTL-4415/RDE-DYL-5518
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
80000.00-350000.00(USD)
Packaging Details
Special wooden case packing
Delivery Time
100-120 work days
Payment Terms
L/C, T/T
Supply Ability
8 sets/month
Product Description

Single Chamber Debinding Sintering Furnace , MIM Furnace Vacuum Leakage Rate 2 / 3 Pa/H





Description:

The MIM sintering furnace is single-chamber, horizontal and periodic heating. It adopt low voltage and large current graphite heating element to heating, and it has multiple heating units, each unit controls the temperature separately. The whole process is automatically controlled, monitored, tracked and displayed and recorded by the computer.

It including control system, heating system, debinding system, vacuum system, partial pressure sintering system, cooling water system, rapid cooling system, auxiliary system and safety system.

It adopt the structure of built-in graphite liner in insulation tube.In the mass, it can meet the strict requirements of furnace temperature uniformity and atmosphere uniformity in the sintering process.



Vacuum pump: backing pump, Roots-type pump(slide valve pump, rotary vane pump, screw pump and so on can be selected for the backing pump, allowing customers to choose world-class brand products)



Power supply: General standard is three phase five wire system AC380V±10% 50HZ.

Control power supply: Single-phase AC210V-250V 50HZ design(Different countries and regions can be designed according to local grid standards)



Temperature measurement mode: WRe5-26 thermocouple



Technical parameters:





Specifications

RDE-YTL-4412/RDE-YTL-4415 RDE-DYL-5518

Effective space(w* h * l)mm

400*400*1200/

400*400*1500

500*500*1800

Max.Temperature

1600℃ 1600℃
Maximum load 300Kg/350Kg 1500Kg

Vacuum leakage rate:(Average in cold,empty,dry chamber in 3 hours)

2Pa/h 3Pa/h
Extreme vacuum 0.8Pa 1Pa
Wax-collection rate(negative pressure dewaxing process.The maximum average value is 3 furnaces) 98% 98%

MAX working pressure

100KPa 100KPa

Cooling period(Sintering temperature—100℃)

300min-420min 480min

Temperature control mode

2-zone

2-zone

Input gas allowed

Ar,N2,He,H2,CH4,Co2

Functions:

Vacuun dewaxing,H2 dewaxing,vacuum heating,heating with gas mixture(Co2 /CH4/H2),heating flowing gas,Rapid cooling.

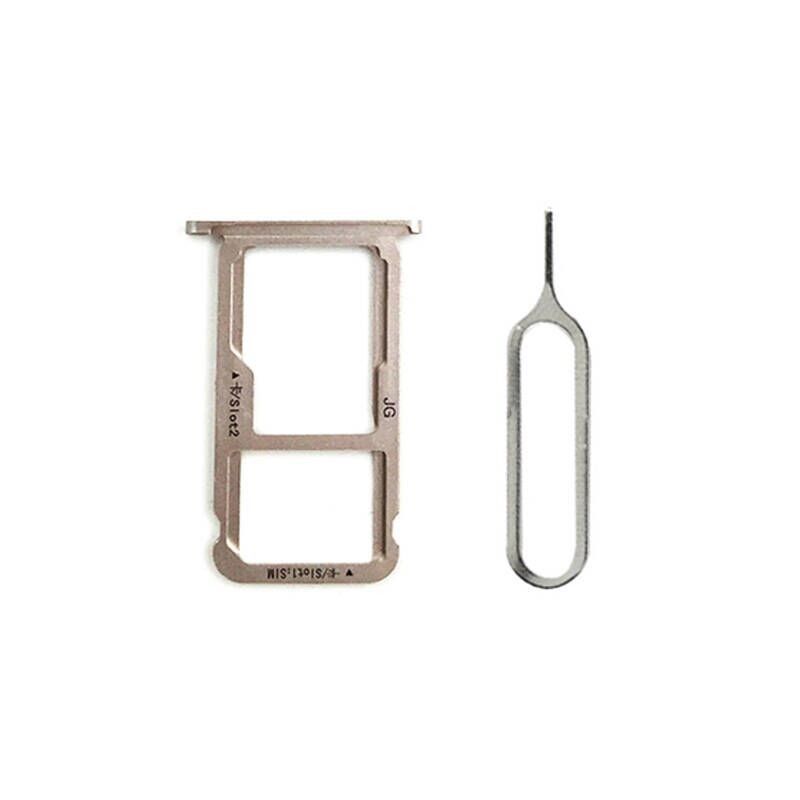

Applications: It can sinering stainless steel, iron - based, copper - based alloy, aluminum products and other precision parts. For example, the card slot and card support of mobile phone and mobile phone shell frame,Glasses foot hinge,Medical instruments (scalpel, forceps), precision handicraft.



Competitive Advantage:

1. Compact structure ,small occupation area, low energy consumption, rapid cooling speed, saving energy and protecting environment.

2. Full range of sizes available, canbe usedin experimental research and development, Small and medium-sized enterprises as well as mass prodution. We can design the procucts according to customer’s special requirement.

3. High automation level: one-button start, Double industrial PC operating system,mutually redundant,safe and reliable.

4. The control system is full-automatic with data record &backup function, the operation system is more humanized, more powerful.

5. The Insulation box is of good insulation effect, free of volatilization athigh temperature, with long life.It adopts “sandwich structure”, will be no deformation afteer many years use.

6. Program has resume-heat-at-breakpoint function, no need to restart the program in case of short time power failure.

7. Slot type loading space,Precision parts are heated evenly during sintering without deformation.
