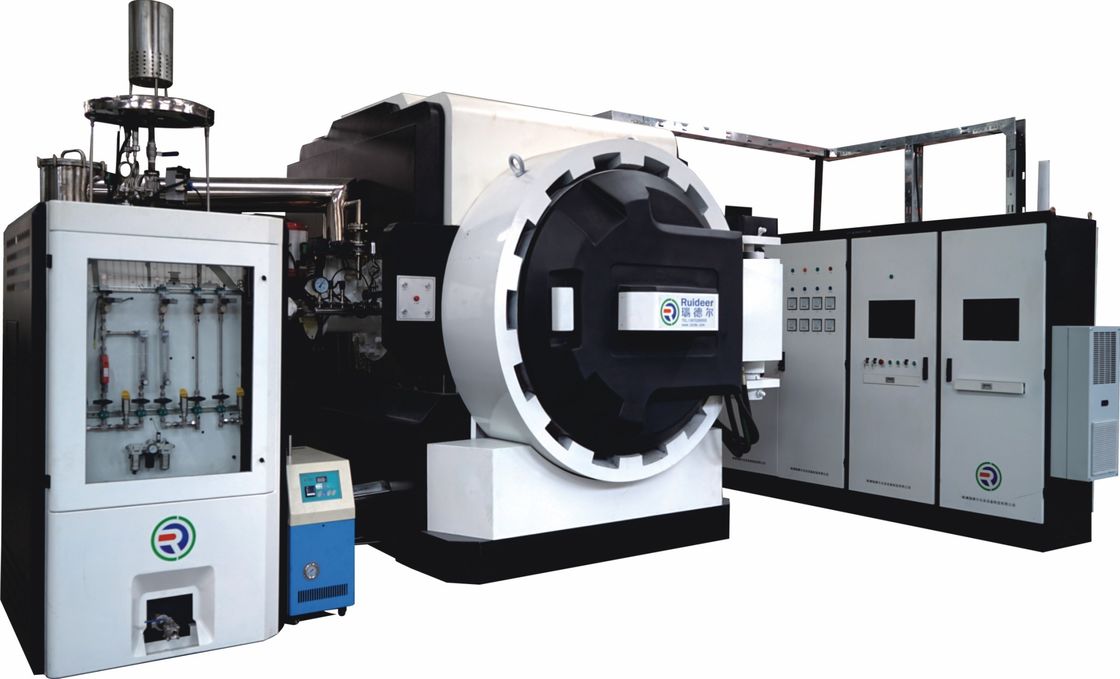

White Color Gas Pressure Sintering Furnace For Cemented Carbide / Precision Ceramic

White Color Gas Pressure Sintering Furnace For Cemented Carbide / Precision Ceramic

vacuum pressure furnace

sinter hip furnace

Place of Origin:

Zhuzhou City, Hunan Province,China

Brand Name:

Ruideer

Certification:

CE;ISO9001;ISO14001;OHSAS 18001;GB/T29490

Contact Us
Request A Quote
Product Details
Name:
Gas Pressure Sintering Furnace
Certification::
CE/ISO9001/ISO14001/OHSAS 18001/GB/T29490
Vacuum Pump:
Backing Pump, Roots-type Pump
Color:
White
Control Power Supply:
Single-phase AC210V-250V 50HZ
Max.Temperature:
1600℃
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
250000.00——1000000.00(USD)
Packaging Details
Special wooden case packing
Delivery Time
100-120 work days
Payment Terms
L/C, T/T
Supply Ability
8 sets/month
Product Description

White Color Gas Pressure Sintering Furnace For Cemented Carbide / Precision Ceramic





Description:



gas pressure sintering furnace is single-chamber, horizontal and periodic heating. It adopt low voltage and large current graphite heating element to heating, and it has multiple heating units, each unit controls the temperature separately. The whole process is automatically controlled, monitored, tracked and displayed and recorded by the computer.



Design Standard: JB4732-95 standard, 20 years service life, double doors horizontal structure, 6000 time recycle.



Vacuum pump: backing pump, Roots-type pump(slide valve pump, rotary vane pump, screw pump and so on can be selected for the backing pump, allowing customers to choose world-class brand products)



Temperature and atmosphere uniformity: The magnetic force of the furnace control block is different from that of the cobalt magnetic deviation. Conventional sintering furnace test furnace control block brand isYG6 medium particles, YC40.Debinding pressure sintering integrated.



Power supply: General standard is three phase five wire system AC380V±10% 50HZ. Control power supply:Single-phase AC210V-250V 50HZ design(Different countries and regions can be designed according to local grid standards)



Technical parameters:





Specifications

RDE-DYL-224 RDE-DYL-336/RDE-DYL-339 RDE-DYL-3535120/RDE-DYL-4412 RDE-DYL-5512/RDE-DYL-5518 RDE-DYL-5527

Effective space(w* h * l)mm

200*200*400

300*300*600/

300*300*900

350*350*1200/

400*400*1200

500*500*1200/

500*500*1800

500*500*2700

Max.Temperature

1600℃ 1600℃ 1600℃ 1600℃ 1600℃
Maximum load 50Kg 150Kg/200Kg 300Kg/350Kg 1200Kg/1500Kg 2000Kg

Vacuum leakage rate:(Average in cold,empty,dry chamber in 3 hours)

1Pa/h 2Pa/h 2Pa/h 3Pa/h 3Pa/h
Extreme vacuum 0.8Pa 0.8Pa 0.8Pa 1Pa 1.5Pa
Wax-collection rate(negative pressure dewaxing process.The maximum average value is 3 furnaces) 98% 98% 98% 98% 98%

Working pressure

1MPa/2MPa/

6MPa/10MPa

1MPa/2MPa/

6MPa/10MPa

1MPa/2MPa/

6MPa/10MPa

1MPa/2MPa/

6MPa/10MPa

1MPa/2MPa/

6MPa/10MPa

Cooling period(Sintering temperature—100℃)

40min-120min 40min-150min 120min-360min 180min-420min 180min-480min

Temperature control mode

Single zone/2-zone

2-zone/3-zone

2-zone/3-zone

3-zone/4-zone

4-zone

Atmosphere and temperatureuniformity

Com≤±0.15%

Hc≤±0.25KA/M

Com≤±0.15%

Hc≤±0.25KA/M

Com≤±0.2%

Hc≤±0.3KA/M

Com≤±0.2%

Hc≤±0.3KA/M

Com≤±0.2%

Hc≤±0.3KA/M

Input gas allowed

Ar,N2,He,H2,CH4,Co2

Functions:Vacuun dewaxing,H2 dewaxing,vacuum heating,heating with gas mixture(Co2 /CH4/H2),heating flowing gas,heating pressure gas,Rapid cooling.



Applications:For Cemented Carbide , Precision Ceramic , stainless steel , Iron-bae alloy , Copper-base alloy , Aluminum products



Competitive Advantage:



1. Compact structure, small occupation area, low energy consumption, ra

pid cooling speed, saving energy and protecting environment.

2. Full range of sizes available, canbe usedin experimental research and development, Small and medium-sized enterprises as well as mass prodution. We can design the procucts according to customer’s special requirement.

3. High automation level : one-button start, Double industrial PC operating system, mutually redundant,safe and reliable.

4. The control system is full-automatic with data record &backup function, the operation system is more humanized,more powerful.

5. The Insulation box is of good insulation effect, free of volatilization athigh temperature, with long life.It adopts “sandwich structure”and CFC material inside and outside with high strength, will be no deformation afteer many years use.

6. Program has resume-heat-at-breakpoint function, no need to restart the program in case of short time power failure.
