Single Chamber Vacuum Sintering Furnace Heating With Multiple Heating Units

Single Chamber Vacuum Sintering Furnace Heating With Multiple Heating Units

  • High Light

    vacuum furnace equipment

    ,

    vacuum furnace systems

    ,

    1Pa/h Vacuum Sintering Furnace

  • Name
    Vacuum Sintering Furnace
  • Vacuum Pump
    Backing Pump, Roots-type Pump
  • Control Power Supply
    Single-phase AC210V-250V 50HZ
  • Temperature Measurement Mode
    WRe5-26 Thermocouple
  • Max.Temperature
    1600℃
  • Vacuum Leakage Rate
    1Pa/h,2Pa/h,3Pa/h
  • Place of Origin
    Zhuzhou City, Hunan Province,China
  • Brand Name
    Ruideer
  • Certification
    CE;ISO9001;ISO14001;OHSAS 18001;GB/T29490
  • Model Number
    User-defined
  • Minimum Order Quantity
    1 set
  • Price
    80000.00-350000.00(USD)
  • Packaging Details
    Special wooden case packing
  • Delivery Time
    70-80 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    8 sets/month

Single Chamber Vacuum Sintering Furnace Heating With Multiple Heating Units

Single Chamber Vacuum Sintering Furnace Heating With Multiple Heating Units





Description:

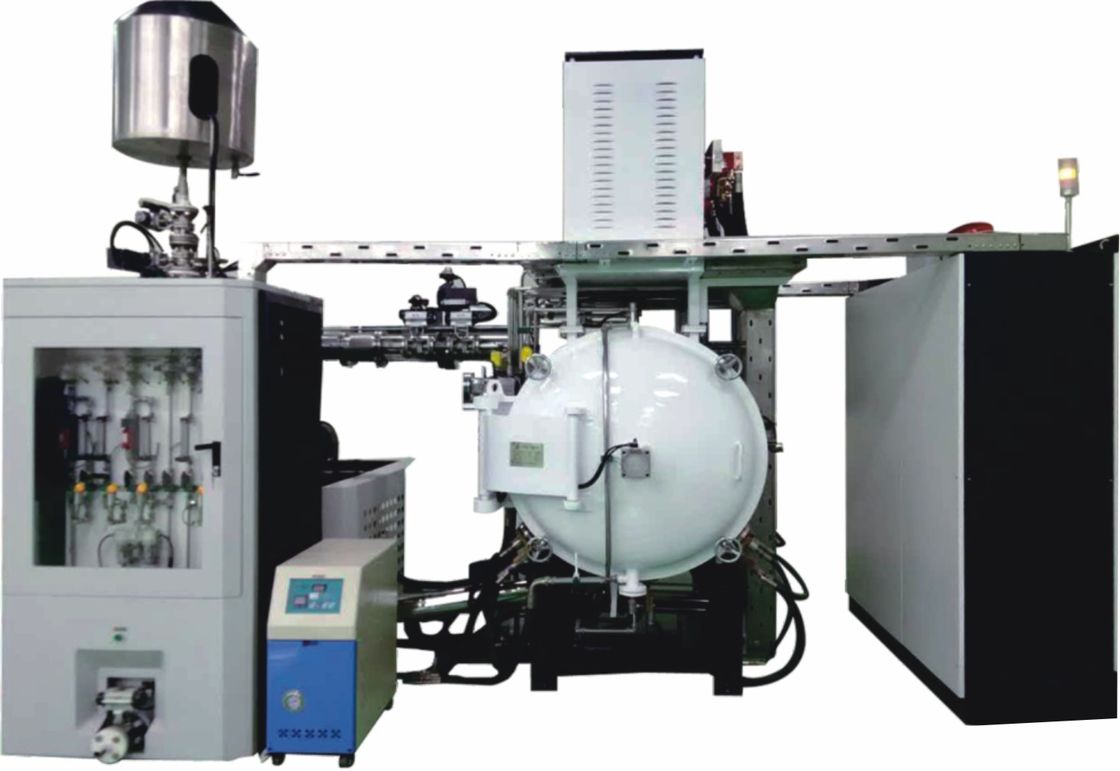

The vacuum sintering furnace is single-chamber, horizontal and periodic heating. It adopt low voltage and large current graphite heating element to heating, and it has multiple heating units, each unit controls the temperature separately. The whole process is automatically controlled, monitored, tracked and displayed and recorded by the computer.

It including control system, heating system, debinding system, vacuum system, partial pressure sintering system, cooling water system, rapid cooling system, auxiliary system and safety system.

It adopt the structure of built-in graphite liner in insulation tube.In the mass, it can meet the strict requirements of furnace temperature uniformity and atmosphere uniformity in the sintering process of high performance cemented carbide.



Vacuum pump:backing pump, Roots-type pump(slide valve pump, rotary vane pump, screw pump and so on can be selected for the backing pump, allowing customers to choose world-class brand products)



Temperature and atmosphere uniformity:The magnetic force of the furnace control block is different from that of the cobalt magnetic deviation.Conventional sintering furnace test furnace control block brand isYG6 medium particles, YC40.Debinding pressure sintering integrated.



Power supply:General standard is three phase five wire system AC380V±10% 50HZ.Control power supply:Single-phase AC210V-250V 50HZ design(Different countries and regions can be designed according to local grid standards)



Temperature measurement mode :WRe5-26 thermocouple



Technical parameters:



Specifications

RDE-YTL-112/RDE-YTL-224 RDE-YTL-336/RDE-DYL-339 RDE-YTL-4545120/RDE-DYL-4545150 RDE-DYL-5518 RDE-YTL-5550191

Effective space(w* h * l)mm

100*100*200/

200*200*400

300*300*600/

300*300*900

450*450*1200/

450*450*1500

500*500*1800 550*500*1910

Max.Temperature

1600℃ 1600℃ 1600℃ 1600℃ 1600℃
Maximum load 10Kg/50Kg 150Kg/200Kg 350Kg/400Kg 1500Kg 1800Kg

Vacuum leakage rate:(Average in cold,empty,dry chamber in 3 hours)

1Pa/h 2Pa/h 2Pa/h 3Pa/h 3Pa/h
Extreme vacuum 0.8Pa 0.8Pa 0.8Pa 1Pa 1.5Pa
Wax-collection rate(negative pressure dewaxing process.The maximum average value is 3 furnaces) 98% 98% 98% 98% 98%

MAX working pressure

100KPa 100KPa 100KPa 100KPa 100KPa

Cooling period(Sintering temperature—100℃)

60min-150min 240min-300min 300min-420min 480min 480min

Temperature control mode

Single zone/2-zone

2-zone/3-zone

2-zone/3-zone

3-zone

3-zone

Atmosphere and temperatureuniformity

Com≤±0.25%

Hc≤±0.35KA/M

Com≤±0.25%

Hc≤±0.35KA/M

Com≤±0.3%

Hc≤±0.4KA/M

Com≤±0.3%

Hc≤±0.4KA/M

Com≤±0.3%

Hc≤±0.4KA/M

Input gas allowed

Ar,N2,He,H2,CH4,Co2

Functions:Vacuun dewaxing,H2 dewaxing,vacuum heating,heating with gas mixture(Co2 /CH4/H2),heating flowing gas,Rapid cooling.



Applications:For Cemented Carbide , Precision Ceramic , stainless steel , Iron-bae alloy , Copper-base alloy , Aluminum products



Competitive Advantage:



1. Compact structure, small occupation area, low energy consumption, rapid cooling speed, saving energy and protecting environment.

2 .Full range of sizes available, canbe usedin experimental research and development, Small and medium-sized enterprises as well as mass prodution. We can design the procucts according to customer’s special requirement.

3. High automation level: one-button start, Double industrial PC operating system, mutually redundant,safe and reliable.

4. The control system is full-automatic with data record &backup function, the operation system is more humanized,more powerful.

5. Program has resume-heat-at-breakpoint function, no need to restart the program in case of short time power failure.

6. Convenient and intelligent: The control interface of sintering furnace can be monitored by mobile phone, control and understand the running state of the equipment anytime and anywhere. Fully automatic one-key operation function, realize the supervision of multiple devices by one person, intelligent production, and docking ERP management system.
