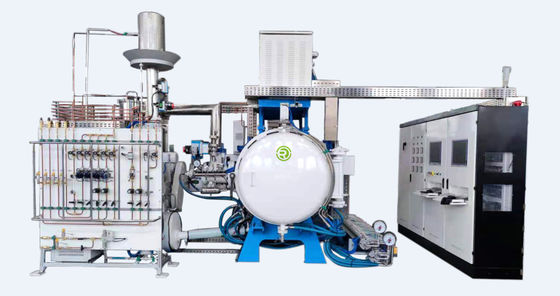

MIM Sintering Furnace For SUS Material Heat Treatment with Oxalic Acid Debinding

MIM Sintering Furnace For SUS Material Heat Treatment with Oxalic Acid Debinding

  • Furnace Shell
    Carbon/stainless Steel
  • Color
    Customizable
  • Warranty
    One Year
  • Function
    Vacuum Sintering, Leak Detection, Dewaxing Etc.
  • Place of Origin
    China
  • Brand Name
    Ruideer
  • Certification
    CE;ISO9001;ISO14001;OHSAS 18001;GB/T29490
  • Model Number
    1500*400*400mm
  • Minimum Order Quantity
    1 set
  • Price
    Negotiable
  • Packaging Details
    Exempted from inspection wooden case
  • Delivery Time
    100-120 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    7 sets/month

MIM Sintering Furnace For SUS Material Heat Treatment with Oxalic Acid Debinding

Safe Remote Control Design Industrial MIM Sintering Furnace



General equipment requirements:

Main application in MIM injection molding stainless steel materials, hard composite materials, ceramic materials, wear-resistant materials,  degreasing, vacuum sintering, partial pressure sintering (static, dynamic), vacuum cooling, rapid cooling and other processes.



Furnace Type RDE-446-0M RDE-448-0M RDE-4412-0M RDE-4415-0M
Usable Space (W*H*L) 400*400*600mm 400*400*800mm 400*400*1200mm 400*400*1500mm
Max.Charge Load 50kg 150kg 300kg 500kg
Power Rating 200KVA 260KVA 300KVA 320KVA
Cooling time ≤3h ≤3h ≤6h ≤6h

Empty furnace, cooling from sintering temperature 1450℃ to 100℃.

(water temperature≤26℃, water pressure 2-3bar)

Max. Working Temp 1580℃
Heating Zone 2 Zones
Temperature Measurement W-Re5/26 Thermocouple
Max Vacuum Degree 1Pa (under cold, empty, dry furnace)
Leakage Rate 3Pa/h (Average value under cold, empty, dry furnace)
Wax Collection ≥98%(Argon gas negative dewaxing, 3-time average value)
Input gas N2, Ar, H2
Functions

Automatic Positive Pressure, Negative Pressure Leak Detection

Ar Negative Pressure Dewaxing/H2 Micro Positive Pressure Dewaxing

Vacuum Sintering

Partial Pressure Sintering (Static, Dynamic)

Rapid Cooling

Fully-automatic control & Safety interlock& Breakpoint continuing heating & Wireless remote control& Self-diagnosis







After sales:

1.Installation, Commissioning and Acceptance

We do installation, commissioning and acceptance in buyer's plant.

The equipment shipped to the buyer,  both buyer and seller shall check the equipment and all components according to the packing list, including equipment accessories, spare parts and special tools, attached manual and technical documents, etc. It can be installed after the acceptance check of equipment.


After installation and debugging, the equipment shall be accepted according to the technical contract.



2.Training

When taking-over the furnace to the customer, we will give a staff training to customer. The operating personnel of the customer should join to commission, test the furnace, when installing at customer’s company.


3. Warranty period

The warranty period of the equipment is 12 months, which starts from the date of installation and debugging of the supplier. Equipment failure happens, after-sales service personnel shall give solutions within 2 hours, after receiving the buyer's notification . If it is need to go to the site for treatment , operators dispatched by seller should arrive at the site within 48 hours after go aboard. In case of emergency,operators should arrive at the site within 48 hours after go aboard, and continue to make repairs until the fault is removed and the equipment returns to normal.
