Automatic Control Vacuum Sintering Furnace Periodic Heating Vacuum Leakage Rate 3Pa/H

Automatic Control Vacuum Sintering Furnace Periodic Heating Vacuum Leakage Rate 3Pa/H

  • High Light

    vacuum furnace equipment

    ,

    vacuum furnace systems

  • Name
    Vacuum Sintering Furnace
  • Dimention
    Customized
  • Painting
    Black,white,gray,blue,green
  • Place of Origin
    Zhuzhou City, Hunan Province,China
  • Brand Name
    Ruideer
  • Certification
    CE;ISO9001;ISO14001;OHSAS 18001;GB/T29490
  • Model Number
    300×300×600/300×300×900/450×450×1200/500×500×1800/550×500×1910
  • Minimum Order Quantity
    1 set
  • Price
    80000.00-350000.00(USD)
  • Packaging Details
    Special wooden case packing
  • Delivery Time
    100-120 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    8 sets/month

Automatic Control Vacuum Sintering Furnace Periodic Heating Vacuum Leakage Rate 3Pa/H

Automatic Control Vacuum Sintering Furnace Periodic Heating Vacuum Leakage Rate 3Pa/H





Description:

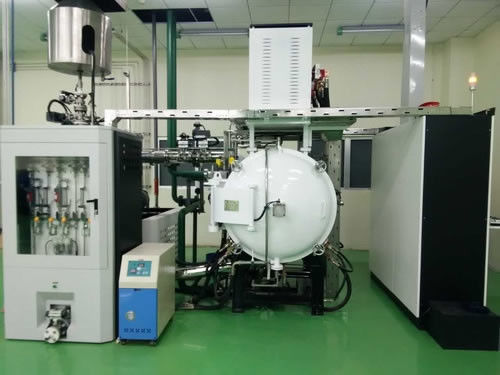

The vacuum sintering furnace is single-chamber, horizontal and periodic heating. It adopt low voltage and large current graphite heating element to heating, and it has multiple heating units, each unit controls the temperature separately. The whole process is automatically controlled, monitored, tracked and displayed and recorded by the computer.

It including control system, heating system, debinding system, vacuum system, partial pressure sintering system, cooling water system, rapid cooling system, auxiliary system and safety system.

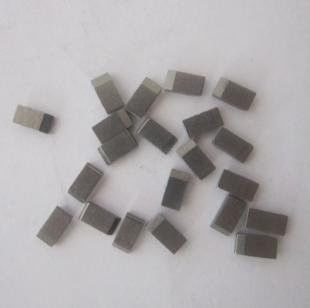

It adopt the structure of built-in graphite liner in insulation tube.In the mass, it can meet the strict requirements of furnace temperature uniformity and atmosphere uniformity in the sintering process of high performance cemented carbide.





Loading space 100*100*200/200*200*400/300*300*600/300*300*900/ 300*300*1000/450*450*1200/500*500*1800/550*500*1910
Max.working Temp 1600℃
Cooling Period ≤1h/≤2h/≤3h/ ≤4h/≤5h/≤6h/≤8h/≤9h
Vacuum leakage rate 3Pa/h(Average in cold,empty,dry chamber within 24 hours)
Vacuum pump Slide-valve Pump,Roots Pump (Imported Pump or domestic Pump according to customer's requirement)
Wax-collection Rate ≥98%
Temp.& Atmosphere Uniformity ± 0.4KAM,Magnetic saturation: ≤ ±0.3,Temp.variation: ≤ ±8℃
Temp.measurement Mode Wre5-26 thermocouple
Temp.Control Mode 3-zone or 4-zone Temp. Control
Functions Vacuum heating,vacuum dewaxing,H2 dewaxing,heating flowing gas,heating with gas mixture(CO2,CH4,H2),Rapid cooling
Heating power 40KVA/60KVA/80KVA/100KVA/120KVA/150KVA/250KVA/280KVA



Products Characteristic



1.The vacuum dewaxing & sintering furnace is used for PEG, Paraffin and rubber binder removing, it can also do vacuum sinter and minor pressure sinter processes.

2.Special designed debinding muffle is adopted with good sealing and complete bind removable,preventing inside components pollution.

3.Horizontal design for easy loading/unloading and easy maintenance.

4.Automatic control of the entire process.

5.This kind of vacuum dewaxing & sintering furnace is single room, horizontal type, recycle heating furnace, it adopt graphite heating element of low voltage and large current. All the technical process is automatic controlled, monitored, chased, fault diagnosed which showed and recorded by computer.

6.Furnace heating element, insulation and charging box are all in cylindrical structure, compared with the traditional square structure: Charging room is larger, size is more flexible, the temperature and atmosphere more uniform.
