Place of Origin:
Zhuzhou City, Hunan Province,China
Brand Name:
Ruideer
Certification:
CE;ISO9001;ISO14001;OHSAS 18001;GB/T29490
Model Number:
200×200×400/300×300×600/350×350×1200/400×400×1200/500×500×1800

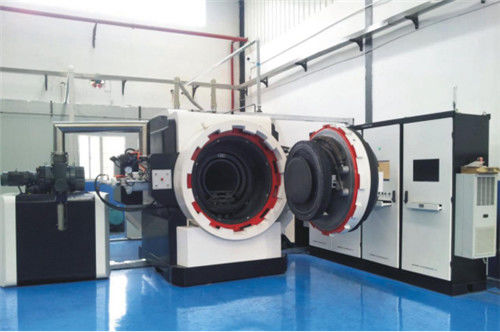

Horizontal Design Gas Pressure Sintering Furnace Max Working Pressure 60 Bar
This 6MPa vacuum-sintering furnace offers unprecedented value to applications that require sintering furnace technology for cemented carbide and precision ceramic. Quality, efficiency and reliability are just a few of the outstanding attributes that have allowed Ruideer to become the premier supplier of sintering furnaces.
Products Characteristic
1. Design standard: JB4732-95/GB150/ASME, 20-year service life, double doors horizontal structure, 6000 times.
2. Horizontal design for easy loading/unloading and easy maintenance.
3. Automatic control of the entire process.
4. This kind of vacuum pressure sintering furnace is single room, horizontal type, recycle heating furnace, it adopt graphite heating element of low voltage and large current. All the technical process is automatic controlled, monitored, chased, fault diagnosed which showed and recorded by computer.
5. Furnace heating element, insulation and charging box are all in cylindrical structure, compared with the traditional square structure:Charging room is larger, size is more flexible, the temperature and atmosphere more uniform
| Usable space (mm) | 200 × 200 × 400 / 300 × 300 × 600 / 350 × 350 × 1200 / 400 × 400 × 1200 / 500 × 500 ×1800 |
| Design standard | ASME, 20-year service life, double-door horizontal structure, 600 times of use |
| Max. working temperature (°C) | 1600 |
| Max. working pressure (bar) | 60 |
| Vacuum leakage rate (Pa/h) | ≤ 3 (average rate in cold, empty and dry chamber for 24 hours) |
| Vacuum pump | Slide valve pump, roots pump (imported or domestic pump is available according to customer’s requirement) |
| Wax-collection rate | ≥ 98% |
| Time for increasing pressure (min) | 15-30 |
| Cooling time (h) | 3 / 4 / ≤5 / ≤6 / ≤8 |
| Cooling water temperature (°C) | ≤ 30 |
| Cooling water flow rate (l/min) | 600 |
| Power supply | AC380V±10%/50HZ three-phase five-wire system |
| Control cabinet power supply | AC210V-250V/50HZ single phase |
| Heating power (KVA) | 80 / 120 / 260 / 280 / 420 |
| Temp. measurement mode | WRe5/26 thermocouple |
| Temp. control mode | Single-zone / 3-zone / 4-zone temperature control |
| Functions | Vacuum sintering, vacuum dewaxing, H2 dewaxing, partial pressure sintering, atmosphere sintering, pressure sintering, fast cooling. |
| Furnace weight (ton) | Around 8 / 10 / 17 / 22 |
| Gas allowed to input | Ar, H2, N2, CH4 |
